LINET Essenza 300

To Next Page

To Previous Page

D9U001EZ3-0101_0026

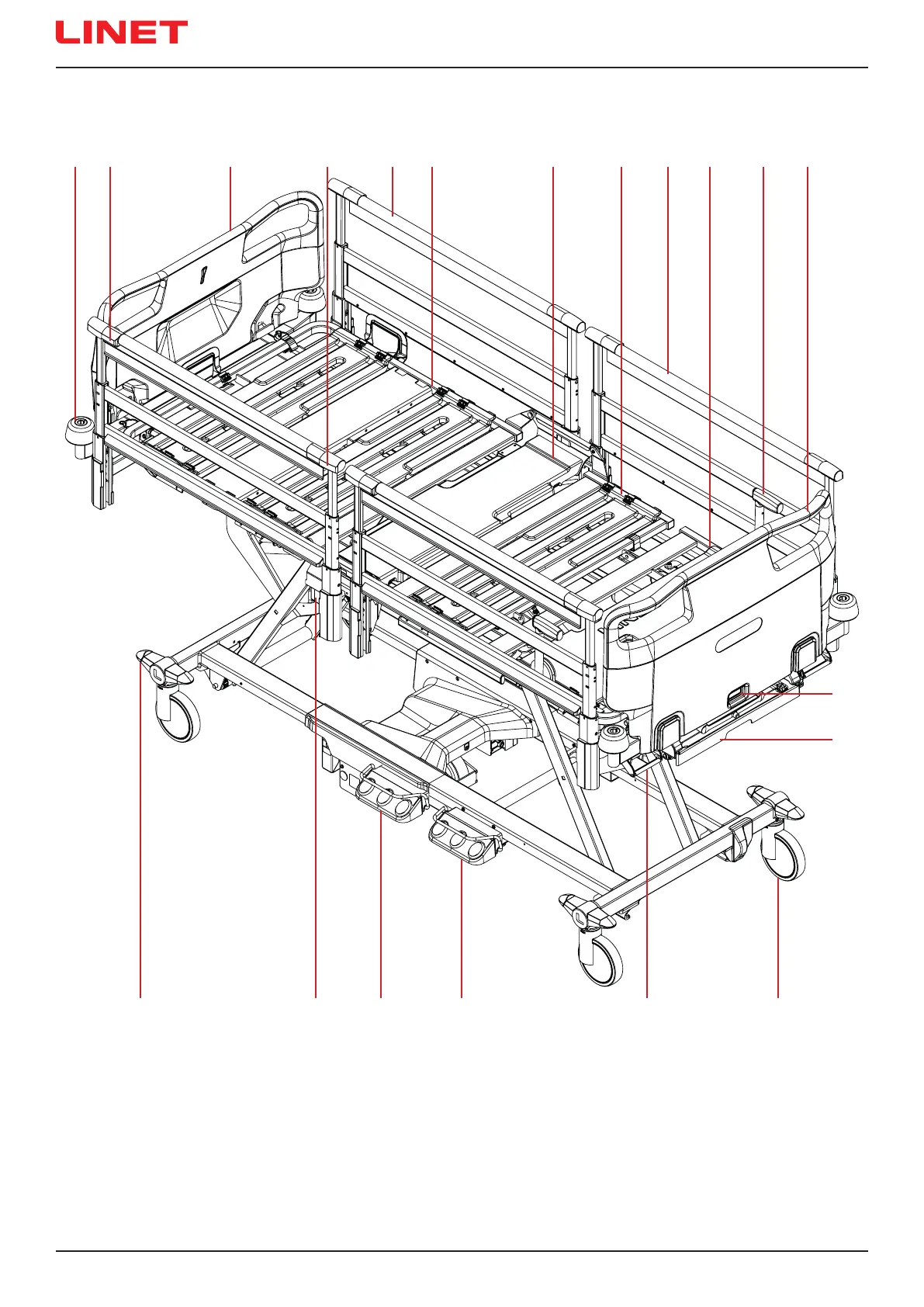

4.2 Essenza 300 with Lateral Tilt with telescopic siderails

1 2 3 4 52 7 98 10 116

14161719 18 15

1. Corner Bumper

2. Siderail Release Mechanism

3. Head Board

4. Head Telescopic Siderail

5. Backrest

6. Seat Section

7. Thighrest

8. Foot Telescopic Siderail

9. Calfrest

10. Mobi-Lift Handle

11. Foot Board

12. Foot Board Safety Lock

13. Linen Shelf (also for Attendant Control Panel)

14. Castor

15. Bed Extension Handle (Advanced Bed Extension)

16. Bed Height Foot Control

17. Lateral Tilt Foot Control

18. CPR Lever for Emergency Backrest Release

19. Castor Control Lever
