15.5 Fifth Castor

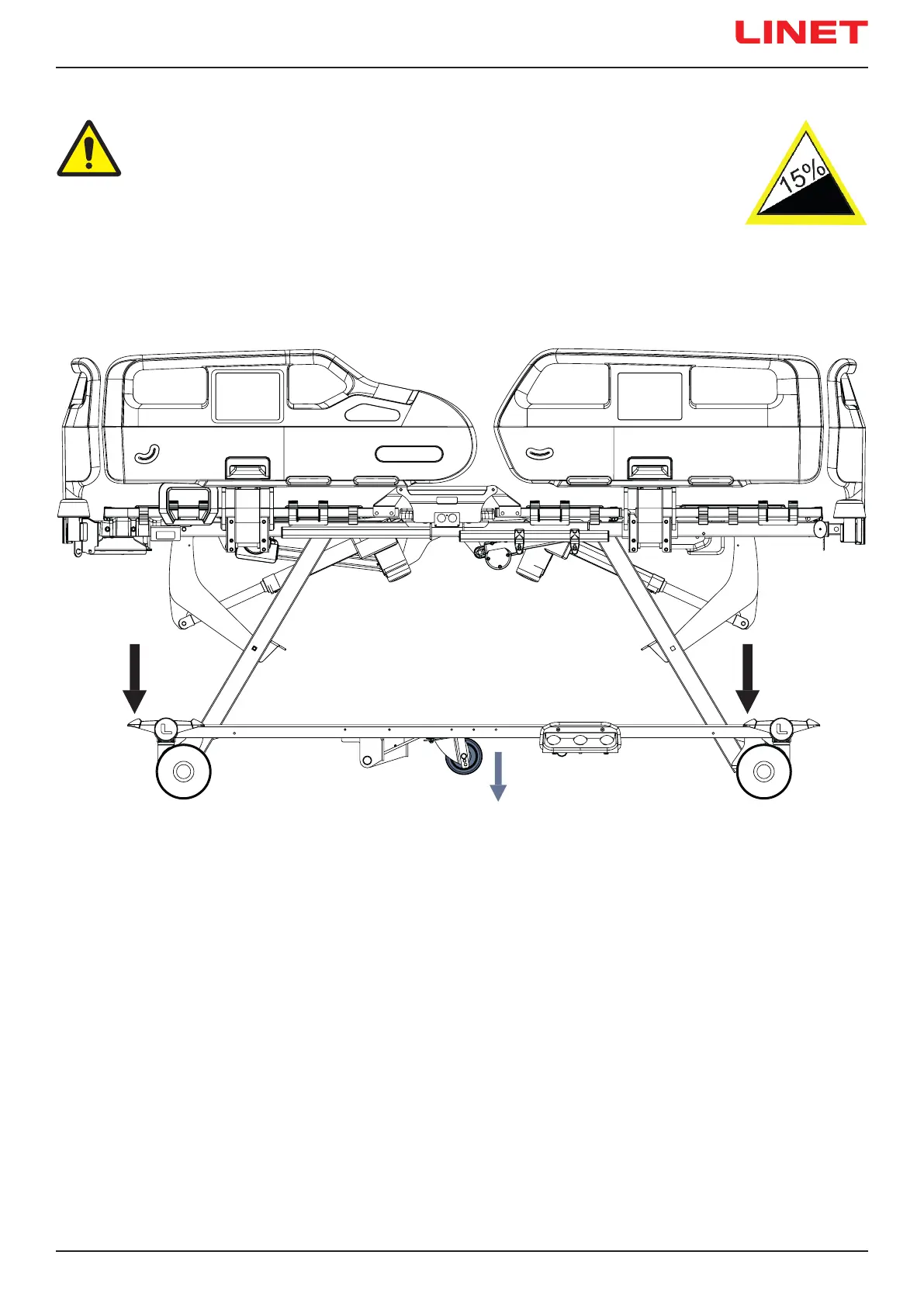

Fig. Activation of the Fifth Castor
To activate the Fifth Castor:
► Press green Drive pedal to the low position.
The Fifth Castor moves in the direction of the bed head end and in the direction of bed foot end.
To release the Fifth Castor from its limited position in the direction of the bed head end and in the direction of bed foot
end :
► Leave all Brake pedals and Drive pedals unpressed in their middle position.
The Fifth Castor moves sideways and around.
WARNING!
Risk of damaging the Fifth Castor during its movement across slope greater than 15%!
► Ensure the bed does not move over the slope!
The bed can be equipped with the Fifth Castor to make it easier to manoeuvre and control the bed movement. The standard locking
castor will automatically be excluded from the bed con guration if the bed is equipped with the Fifth Castor as this will replace the
need for this function. The control lever for the Fifth Castor is identical to the control lever for the braking system.
