D9U001EZ3-0101_0046

8.5 HPL Head Board

HPL Head Board and HPL Foot Board are only compatible with telescopic siderails. Essenza 300 bed compatible with HPL Head

Board and HPL Foot Board is equipped with two Head Board Locks and two Foot Board Locks. HPL Head Board and HPL Foot

Board are interchangeable in the case of the compatible conguration with telescopic siderails.

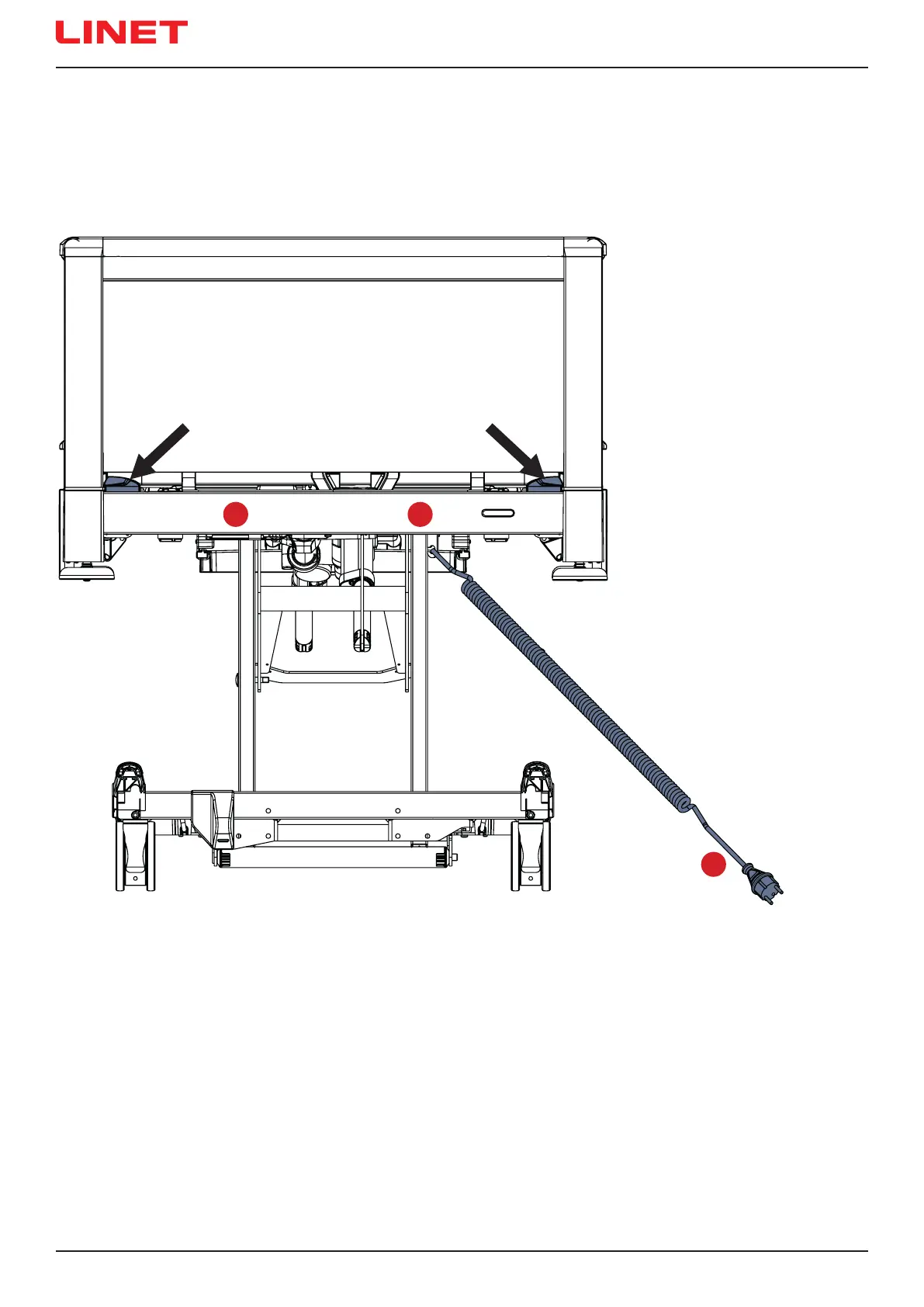

Fig. HPL Foot Board

Insert the head board or foot board as follows:

► Unlock safety locks at corner posts.

► Slide head board or foot board into slots on corner posts.

► Lock safety locks at corner posts.

Remove the head board or foot board as follows:

► Unlock safety locks at corner posts.

► Pull head board or foot board upward.

1 2

1. Accumulator Box (behind the

head end crossbar)

2. Control Unit (behind the head

end crossbar)

3. Power Supply Cord
