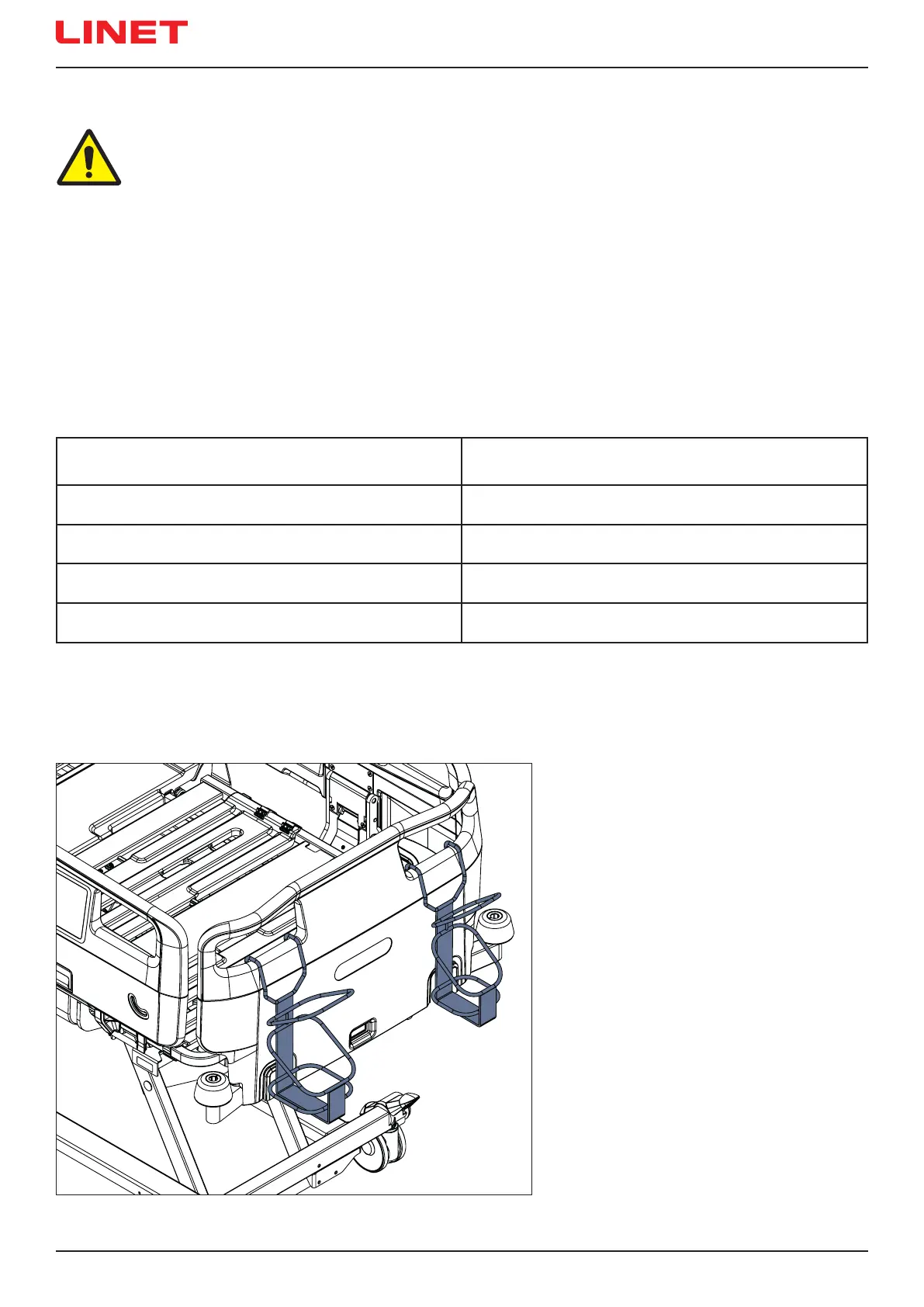

Fig. Two Vertical Oxygen Bottle Holders on the Plastic Head Board
17.11 Oxygen Bottle Holder
WARNING!
Risk of injury with Oxygen Bottle Holder due to incorrect use or due to careless driving!
► Ensure the Plastic Head Board is correctly inserted into the bed before placing the Oxygen Bottle Holder onto
the Plastic Head Board.
► Ensure the Oxygen Bottle Holder is correctly tted in correct position on the Plastic Head Board.
► It is necessary to check the position of the Oxygen Bottle Holder (with or without oxygen bottle) before trans-
port to secure its transport position.
► Be aware of people or objects in close proximity when driving or manipulating the bed equipped with Oxygen
Bottle Holder.
► Secure any oxygen bottle in the Horizontal Oxygen Bottle Holder against falling or involuntary movement with
rubber strap. Do not use the Horizontal Oxygen Bottle Holder without xing rubber strap!
► Ensure the oxygen bottle valve will not get damaged by careless or incorrect manipulation or placement.
Oxygen Bottle Holders are intended for holding and transporting oxygen bottles with a weight of up to 15 kg and a volume of 5
litres.
17.11.1 Vertical Oxygen Bottle Holder
To place Vertical Oxygen Bottle Holder on
the bed:
► Put Vertical Oxygen Bottle Holder
onto the Plastic Head Board so that Vertical
Oxygen Bottle Holder is hanging from a
window in the Plastic Head Board.
Oxygen Bottle Holder Identication Number Compatible oxygen bottle dimensions (length x diameter)
4MAR250141 Max: 80 cm x 12 cm
Min: 33 cm x 10 cm (E-type)
4MAR250140 Max: 80 cm x 14 cm
Min: 32 cm x 12 cm
4MAS0001653 Max: 52 cm x 14 cm
Min: 29 cm x 9 cm
4MAR2010PC003 Max: 52 cm x 14 cm
Min: 29 cm x 9 cm
