D9U001EZ3-0101_0028

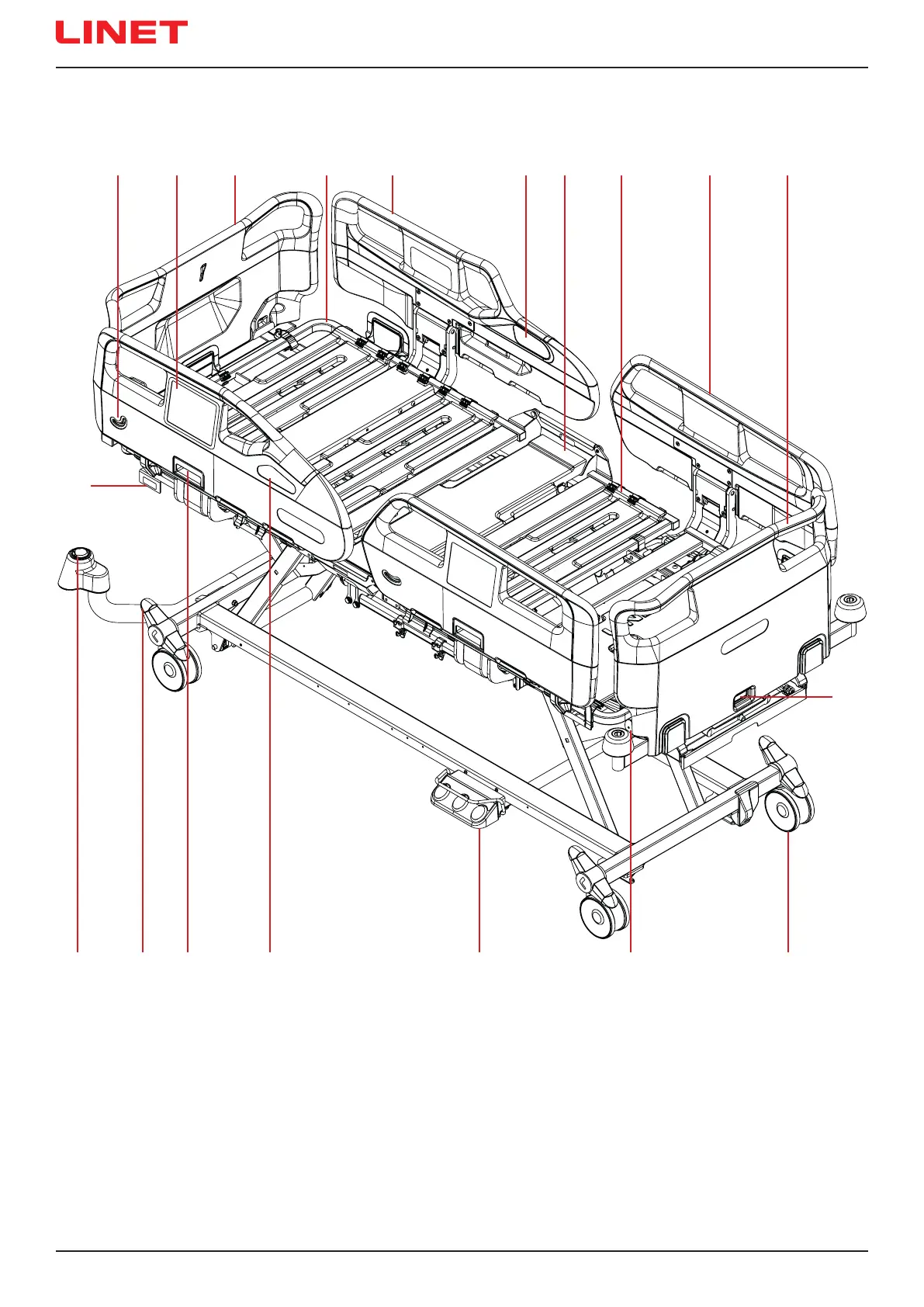

4.4 Essenza 300 with plastic siderails

1 2 3 54 6 8 9 107

1. Angle Indicator

2. Siderail Control Panel

3. Head Board

4. Backrest

5. Head Plastic Siderail

6. Patient Control Panel

7. Seat Section

8. Thighrest

9. Foot Plastic Siderail

10. Foot Board

11. Foot Board Safety Lock

12. Castor

13. Bed Extension Safety Catch (Simple Bed Extension)

14. Bed Height Foot Control

15. Mobi Pad

16. Siderail Release Mechanism

17. Castor Control Lever

18. Accessory Adaptor with 2 Bushings for Lifting Pole

19. CPR Lever for Emergency Backrest Release

121416 1518 17 13
