LINET Essenza 300

To Next Page

To Previous Page

D9U001EZ3-0101_00

117

To adjust Emergency CPR Position manually:

► Fold down plastic siderail if CPR lever is not accessible.

► Pull and hold CPR lever.

► Push Backrest down.

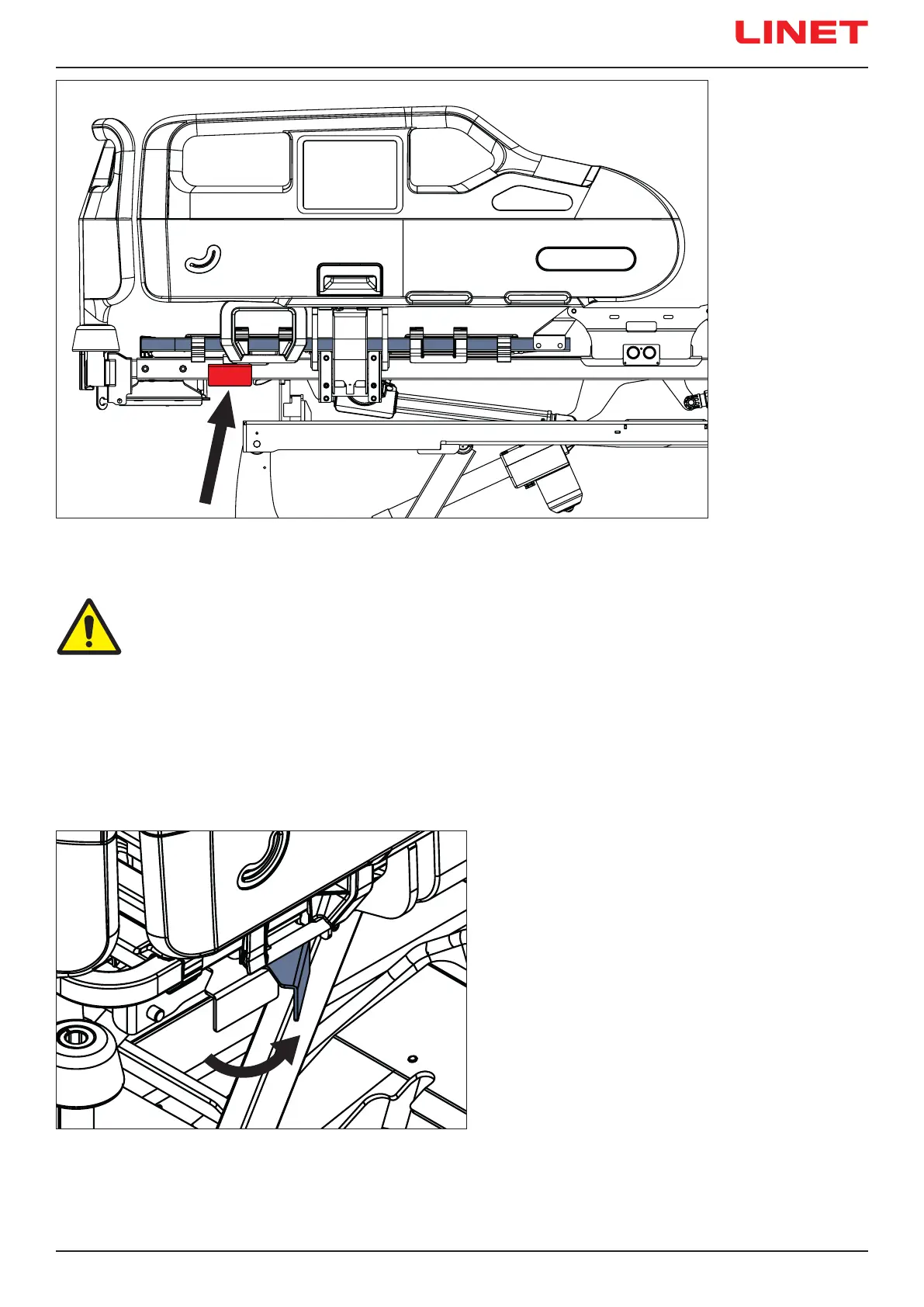

Fig. CPR lever under the Backrest of the bed with Plastic siderails

WARNING!

Risk of injury due to lowering the backrest too quickly!

► Ensure that there are no body parts between any movable parts of the bed.

► Push the Backrest down by the Backrest handle only.

Fig. Manipulation with CPR lever in version with plastic siderails
