D9U001EZ3-0101_00

191

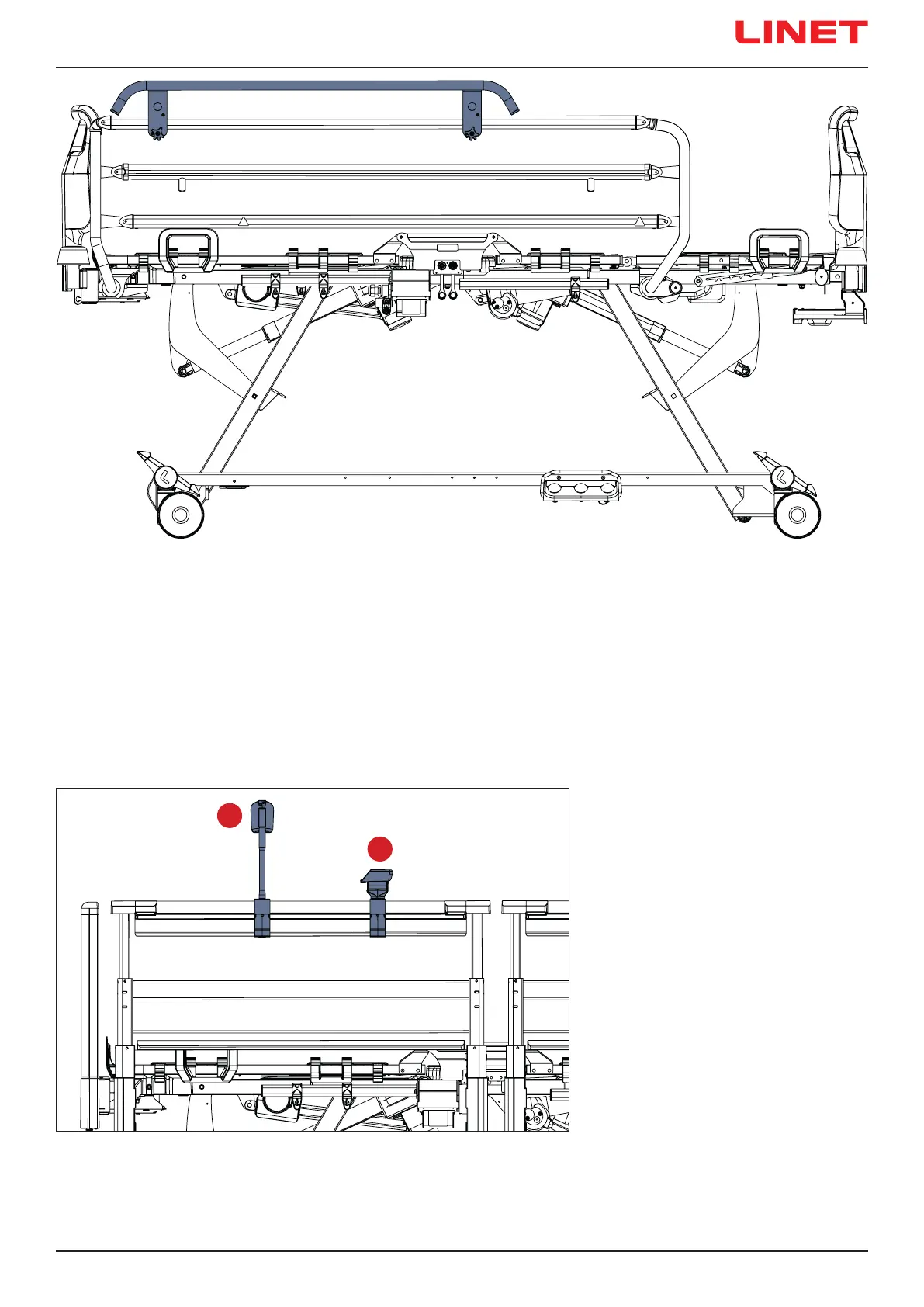

Fig. Extender for Collapsible Siderails

17.23 Handset Control Panel Holders

Handset Control Panel Holder is intended for holding the Handset Control Panel to facilitate patient‘s access to the Handset Control

Panel. Handset Control Panel Holder is intended to be placed on the upper edge of the Telescopic Siderails. Vertical Handset Cont-

rol Panel Holder and Horizontal Handset Control Panel Holder di󰀨er in the way how Handset Control Panel should be placed to the

corresponding holder.

Fig. Handset Control Panel Holders on the head Telescopic Siderail

1. Vertical Handset Control Panel

Holder

2. Horizontal Handset Control

Panel Holder
