LINET Essenza 300

To Next Page

To Previous Page

D9U001EZ3-0101_00

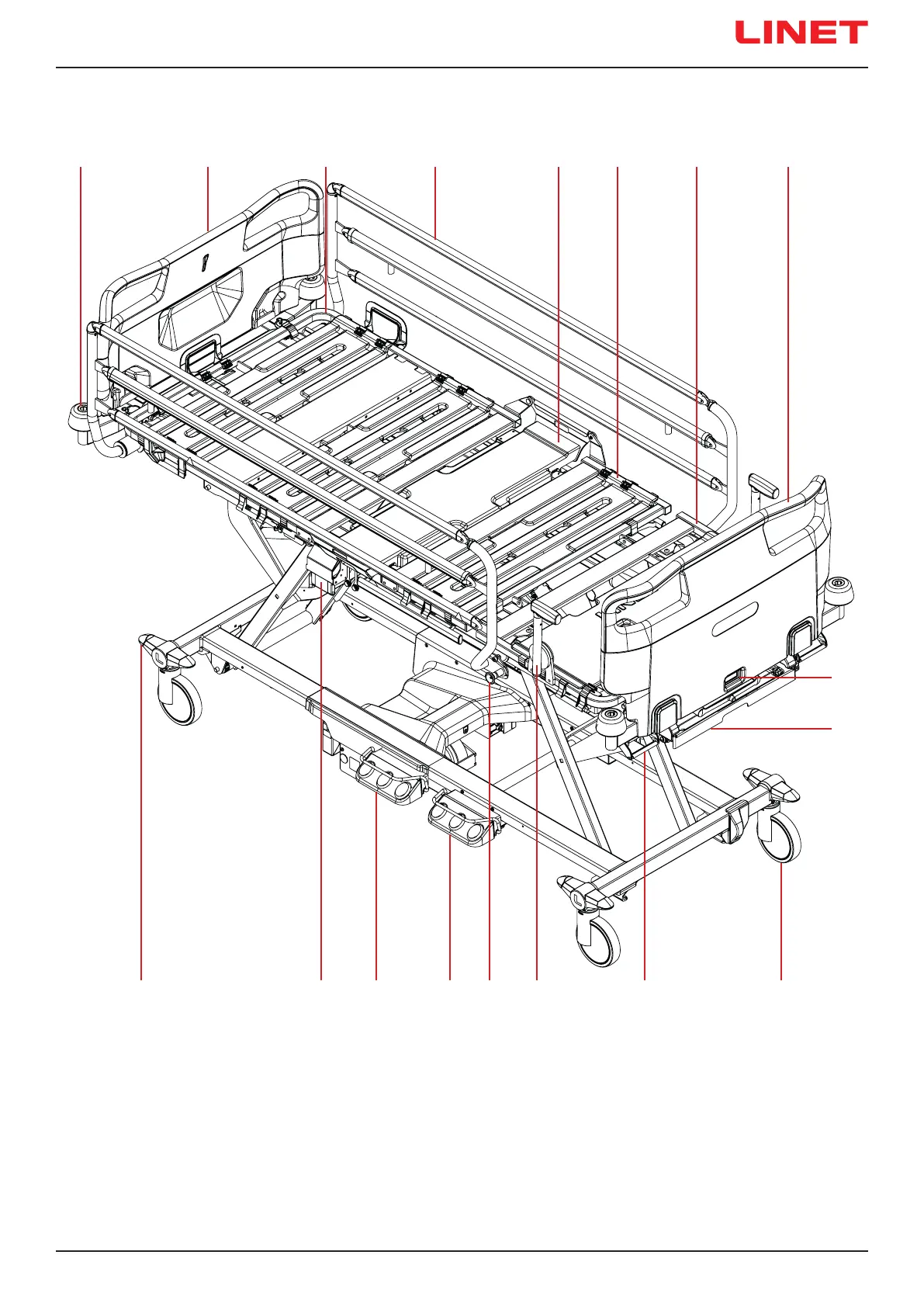

4.3 Essenza 300 with Lateral Tilt with collapsible siderails

1. Corner Bumper

2. Head Board

3. Backrest

4. Collapsible Siderail

5. Seat Section

6. Thighrest

7. Calfrest

8. Foot Board

9. Foot Board Safety Lock

10. Linen Shelf (also for Attendant Control Panel)

11. Castor

12. Bed Extension Handle (Advanced Bed Extension)

13. Mobi-Lift Handle

14. Siderail Release Mechanism

15. Bed Height Foot Control

16. Lateral Tilt Foot Control

17. CPR Lever for Emergency Backrest Release

18. Castor Control Lever

1 2 43 6 7 85

1115 141618 17 1213
