LINET Essenza 300

To Next Page

To Previous Page

D9U001EZ3-0101_00

Pedal Colour Upper Position (1) Middle Position (2) Lower Position (3)

GREEN BRAKED UNRESTRICTED MOVEMENT STEERING / FIFTH CASTOR

/ EasyDrive

RED STEERING / FIFTH CASTOR

/ EasyDrive

UNRESTRICTED MOVEMENT BRAKED

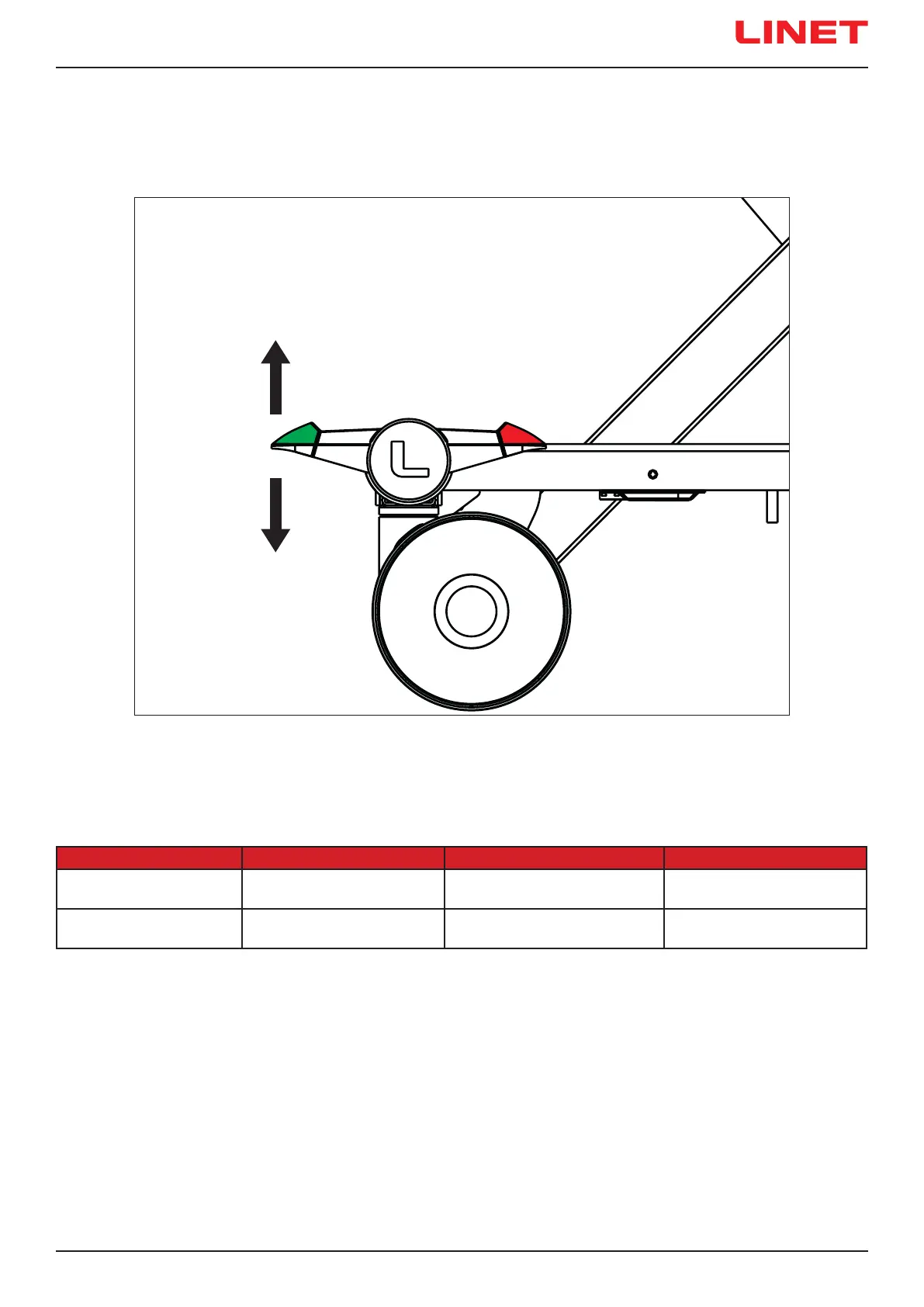

Fig. Three Positions of Castor Control Lever

Each castor control lever is equipped with green pedal and red pedal.

Red colour refers to braking and green colour refers to steering.

Each castor control lever has 3 control positions.

All castor control levers are interconnected such that all pedal functions belong to each pedal.

In following table the pedal functions are described.
