D9U001EZ3-0101_00

119

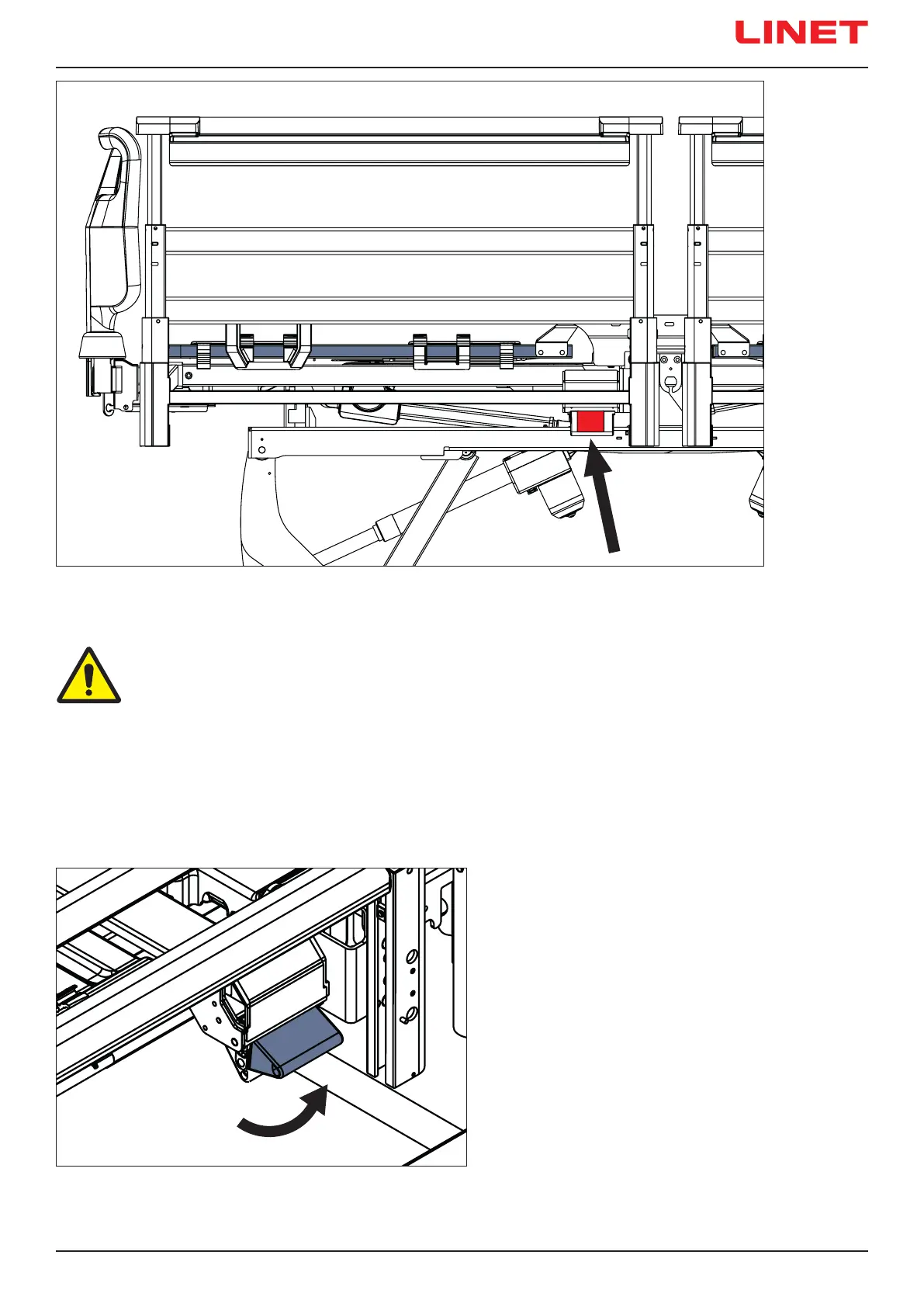

Fig. CPR lever under the Seat Section of the bed with Telescopic siderails

To adjust Emergency CPR Position manually:

► Pull and hold CPR lever.

► Push Backrest down.

WARNING!

Risk of injury due to lowering the backrest too quickly!

► Ensure that the siderails are in the down position.

► Ensure that there are no body parts between any movable parts of the bed.

► Push the Backrest down by the mattress guard handle only.

Fig. Manipulation with CPR lever in version with telescopic siderails
