Chapter 9 IP Routing with Network Address Translation
45

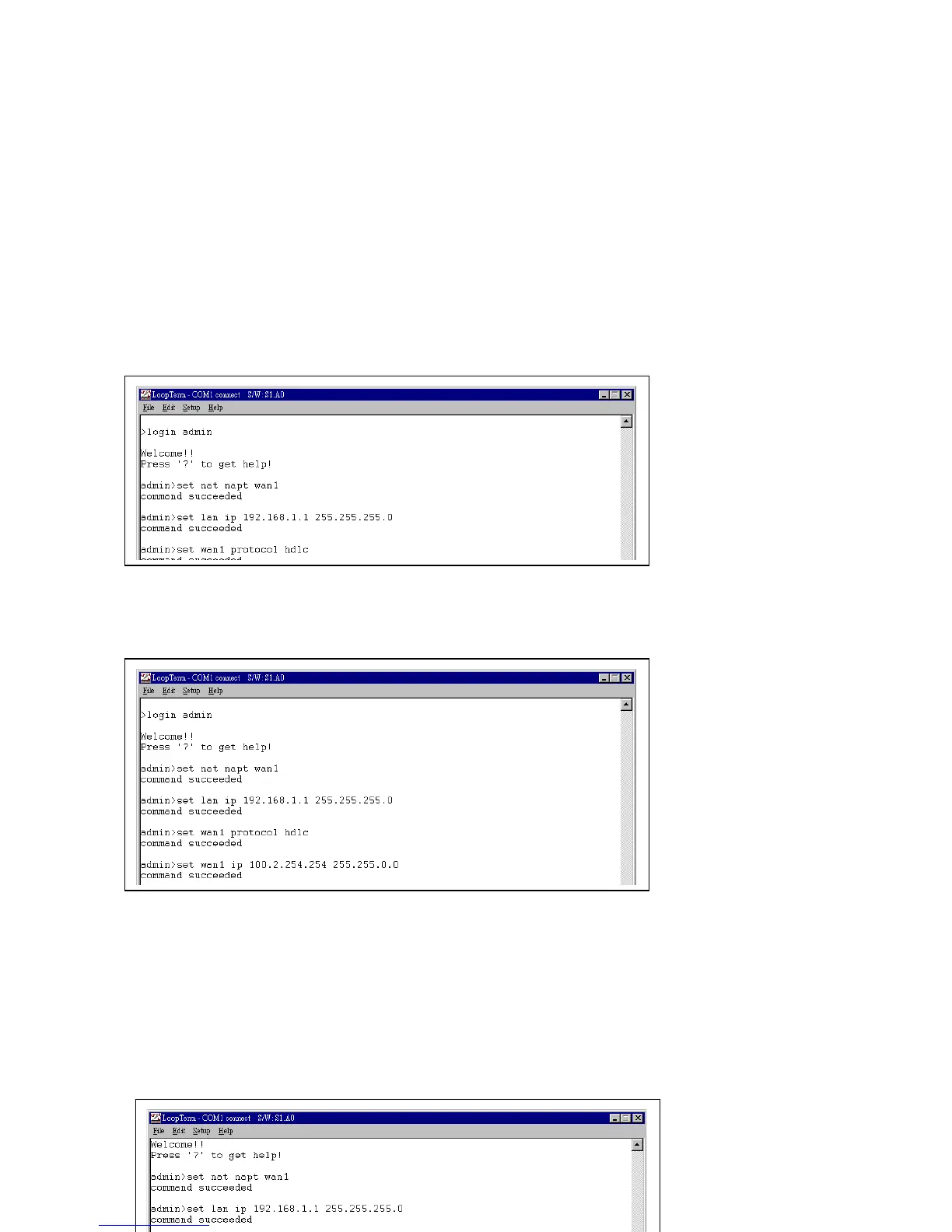

Set the WAN 1 Layer 2 protocol. Key in the command set wan 1 protocol followed by your protocol
choice: ppp (Point to Point) or HDLC (High Level Data Link Control). Then press the Enter key.
In our sample setup we chose to use High Level Data Link Control protocol so we keyed in the admin
command set wan 1 protocol hdlc and then pressed the Enter key.
Set the WAN1 IP and MASK. Key in the admin command set wan 1 ip followed by the LAN1 IP address
and MASK. Then press the Enter key. In the sample screen below we keyed in set wan 1 ip
100.2.254.254 255.255.0.0 and then pressed the Enter key.
Set the WAN 1 timeslot. Key in the command add timeslot wan1 followed by the timeslots you wish to
add. Then press the Enter key.
In our sample setup we chose to add timeslots 1-31 so we keyed in the admin command
add timeslot wan1 1 31 and then pressed the Enter key.
