6-111
1) Address
(1) Specifies the address of a device to drive.
(2) Refer to the section ‘6.9.1 Numeric Tag’ for details.
2) Value input
(1) Specifies the value to write on the device if the applicable function key is pressed.
(2) The value of specified device is changed into this value when the function key is pushed.
3) Data/Format
(1) Refer to the section ‘6.9.1 Numeric Tag’ for details.
4) Apply To All Screens
(1) Applies the function of this function key to all screens identically if selected.
(2)Makes the function selection menu inactive of the applicable function key on the other screens if
selected, and its setting will be unavailable if not released from Apply To All Screens.

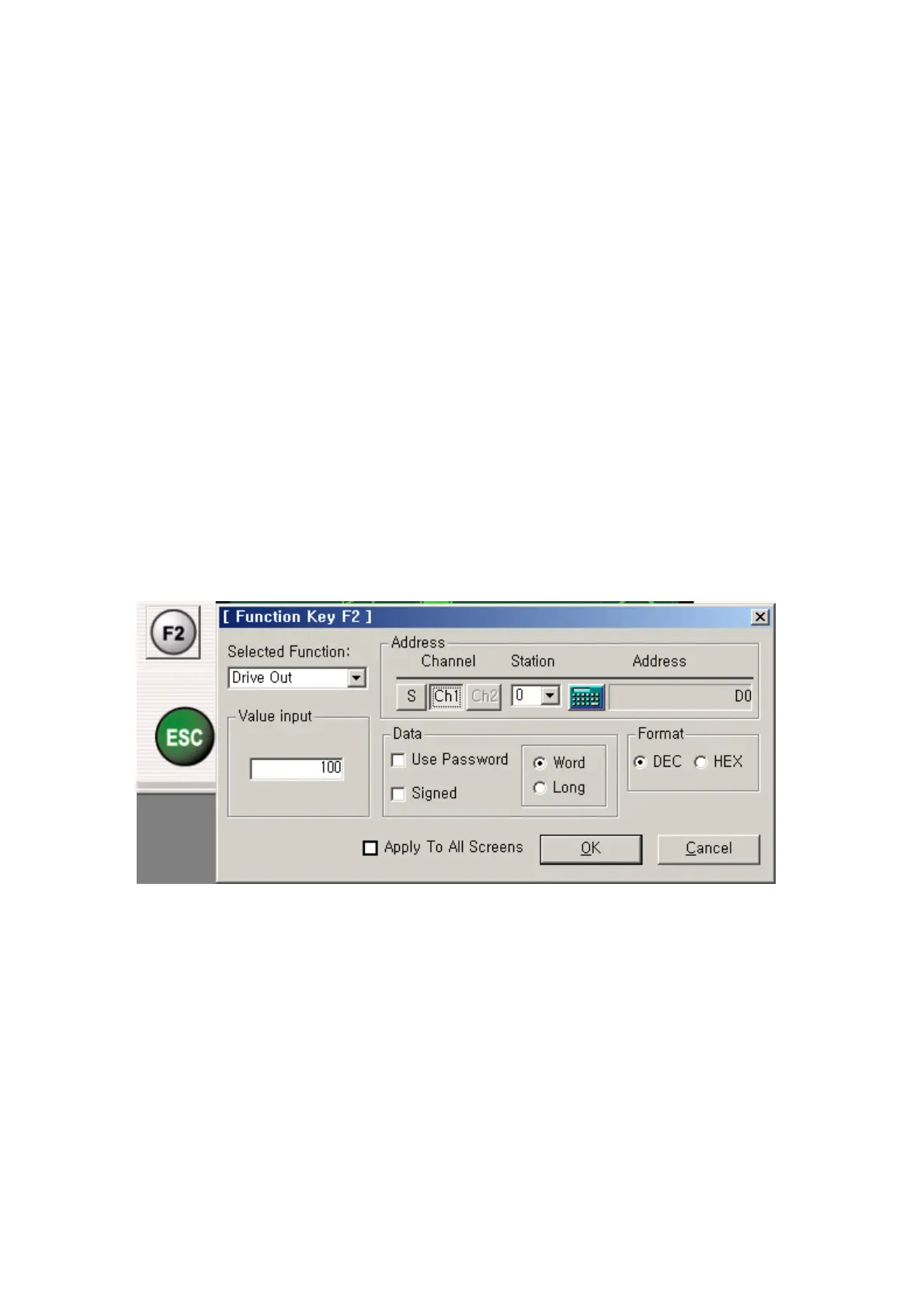

(Ex) If the user presses F2, setting window is displayed in the Panel Editor. In the XGT Panel, if the user presses F2, 100 is
written to D0 of Ch1. Data type is unsigned decimal 16 bit data.
To Next Page
