Chapter 6. Panel Editor
6-55
7) On Value & Shape
(1) Specifies the display shape of the button tag according to On/Off status of the device.
(2) If the value of the device is 0, Off shape will be displayed, and if the value of the device is 1, On shape will be
displayed.
(3) The image of the display shape can be changed as requested by the user.
(4) See Chapter 6.3 for details on Image Edit and Add of the display shape.

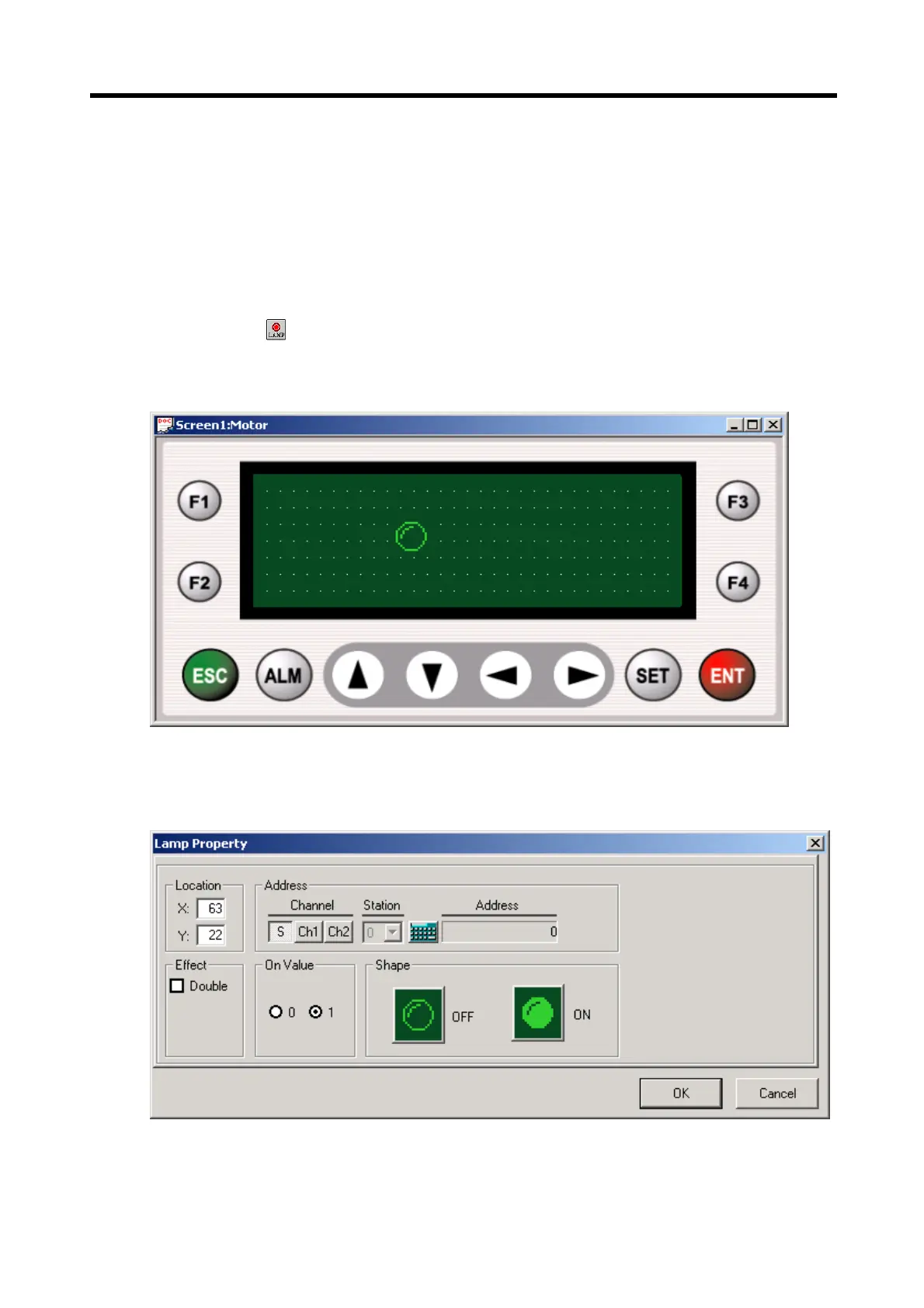

6.9.4 Lamp Tag ( )
Displays a status (On or Off) of bit device.
In order to specify the property of the Button Tag, double-click Button Tag to display the Property setting window as shown
below.
The Location, Effect, Address, On Value and Display Shape in the Lamp Property should be set identical to ‘6.9.3 Button
Tag’.
To Next Page
