Chapter 6. Panel Editor
6-53
1) Location
(1) Indicates tag’s location (Max. X:191, Y: 63).
(2) Thereupon, the X,Y coordinates point at the left upper edge of the tag.
(3) Drag the tag with the mouse to move the tag, when the coordinates will change automatically.
(4) Relocating is available by dragging the mouse.
2) Effect
(1) Double: Changes the size of the character to double.
3) On Value
(1) Specifies the display format according to the value of the read device status.
(2) If On status is set 0, On display format will be displayed when the value of the read device is 0, and if set 1, Off display
format will be displayed.
(3) If On status is set 1, Off display format will be displayed when the value of the read device is 0, and if set 1, On display
format will be displayed respectively.
4) Address
(1) Channel: Specifies the data’s communication channel to display.
S① : Specifies a system memory of the XGT Panel.
• A system memory is the memory to be provided for the user, and allows user to use as user memory or as
system flags
• The size of system memory is 1,000 Word (0~999), and the user can use 900 Words (0~899) as user
memory area. As for XP10BKB/DC, a latch area can be specified.
For more information on the latch area, refer to Parameter Setting of the Common Resource menu.
S900~S999 is the system flag area. For more information on the system flag, see the appendix.

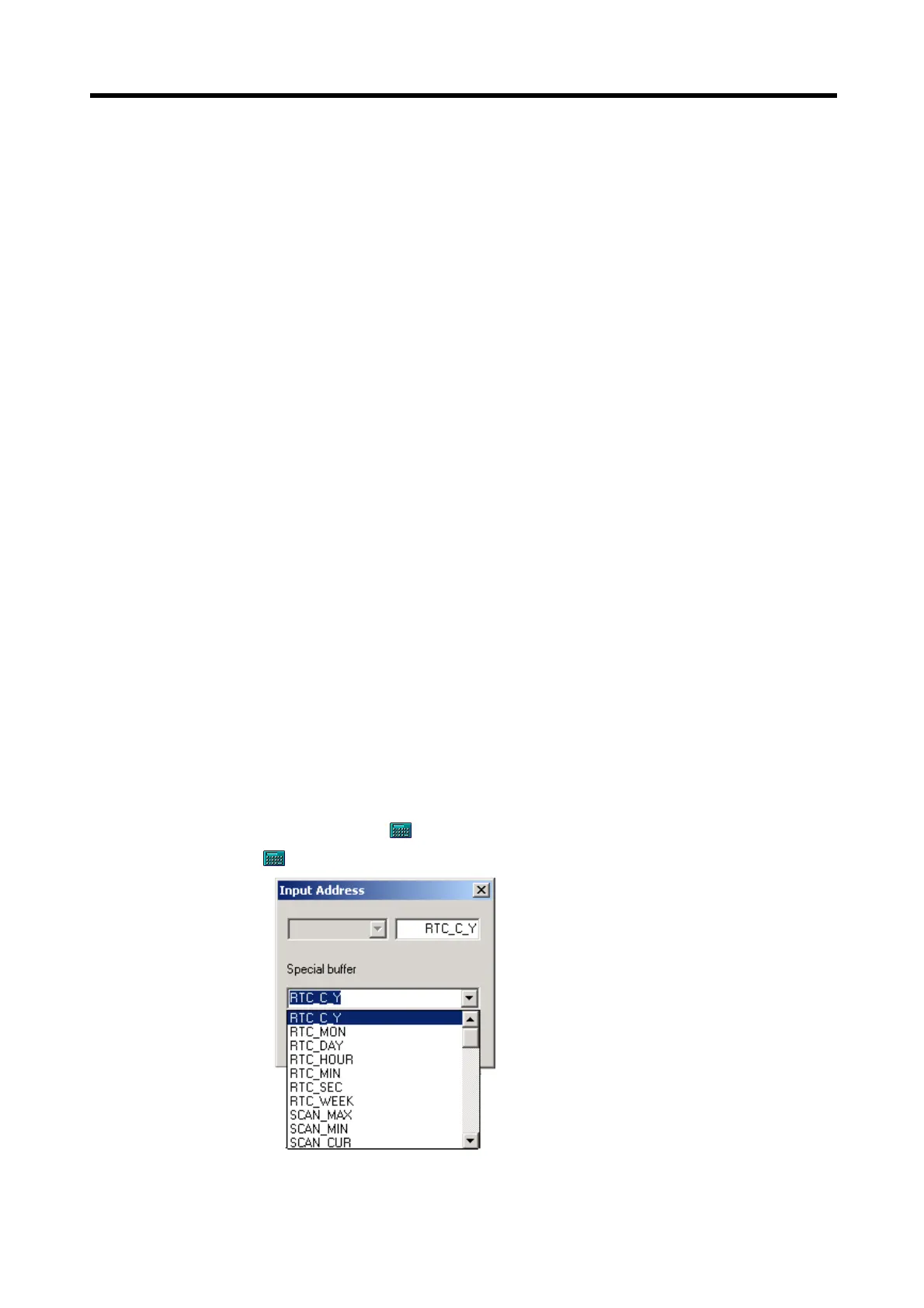

After『S』 selected, click
to choose an internal device address or a special flag as shown below. •
Click
, then the following window appears for the user to input an address or system flag.
