6.9.8 Rotation Tag ( )
Varies a rotating speed of image of motor according to the value of device.

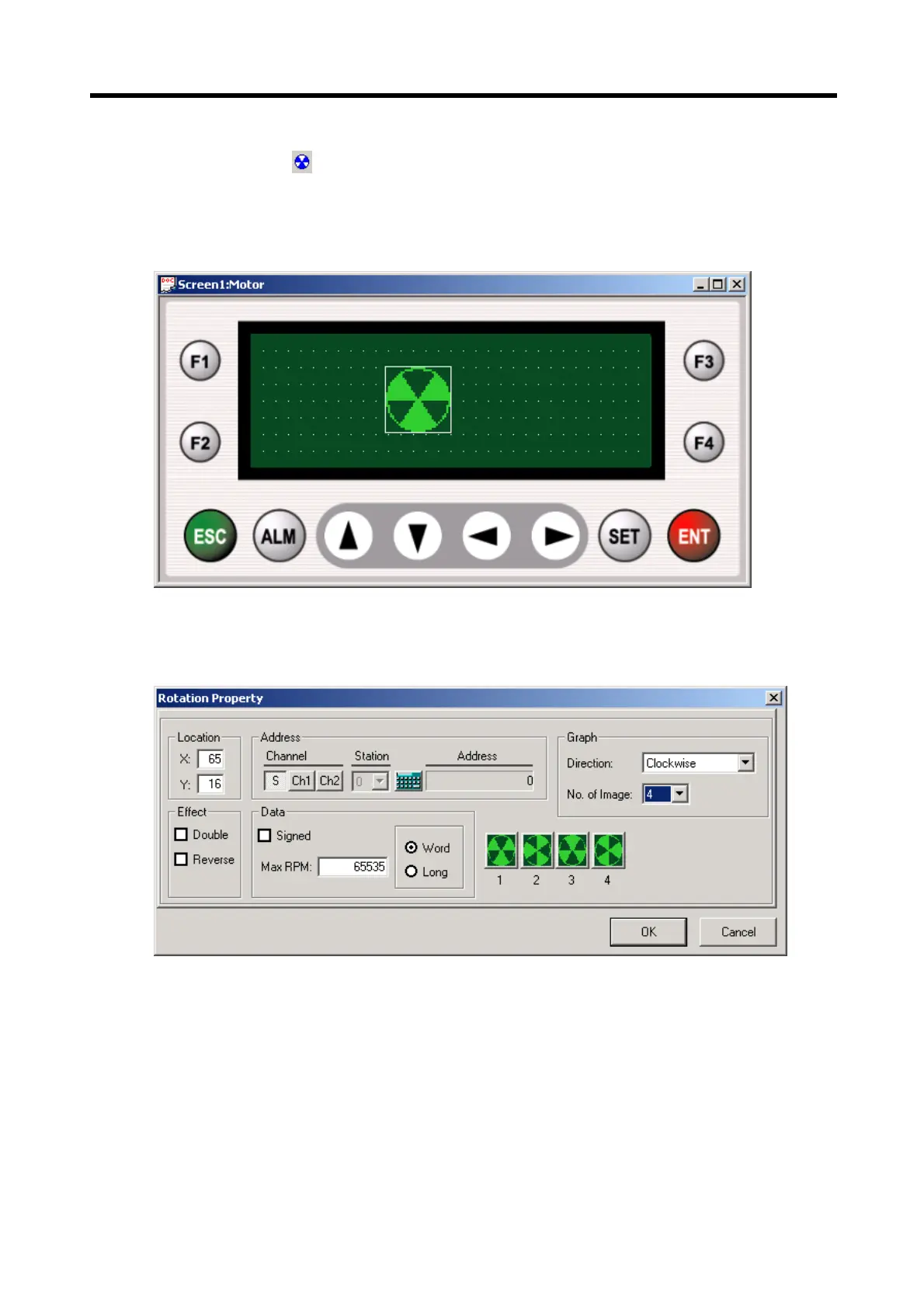

In order to specify the property of the Tag, double-click to display the Property setting window as shown below.
The Location, Effect and Address in the Rotation Property should be set identical to ‘6.9.5 Bar Graph Tag’.
1) Data
(1) Max. RPM
-. Specifies the maximum speed of device which makes the rotate tag revolve fastest.
-. XGT Panel divides the range from 0 up to the max. RPM value into 20 blocks and displays the rotation cycle while
increasing by 20 ㎳ per block.
