Chapter 6. Panel Editor
6-86
4) Data
Specifies a size of data to communicate (Max. 60Words).
5) PLC Address & HMI Address
(1) Specifies the addresses of PLC and system memory of HMI.
(2) Refer to ‘ 6.9.1 Numeric Tag’ for details to specify the address.

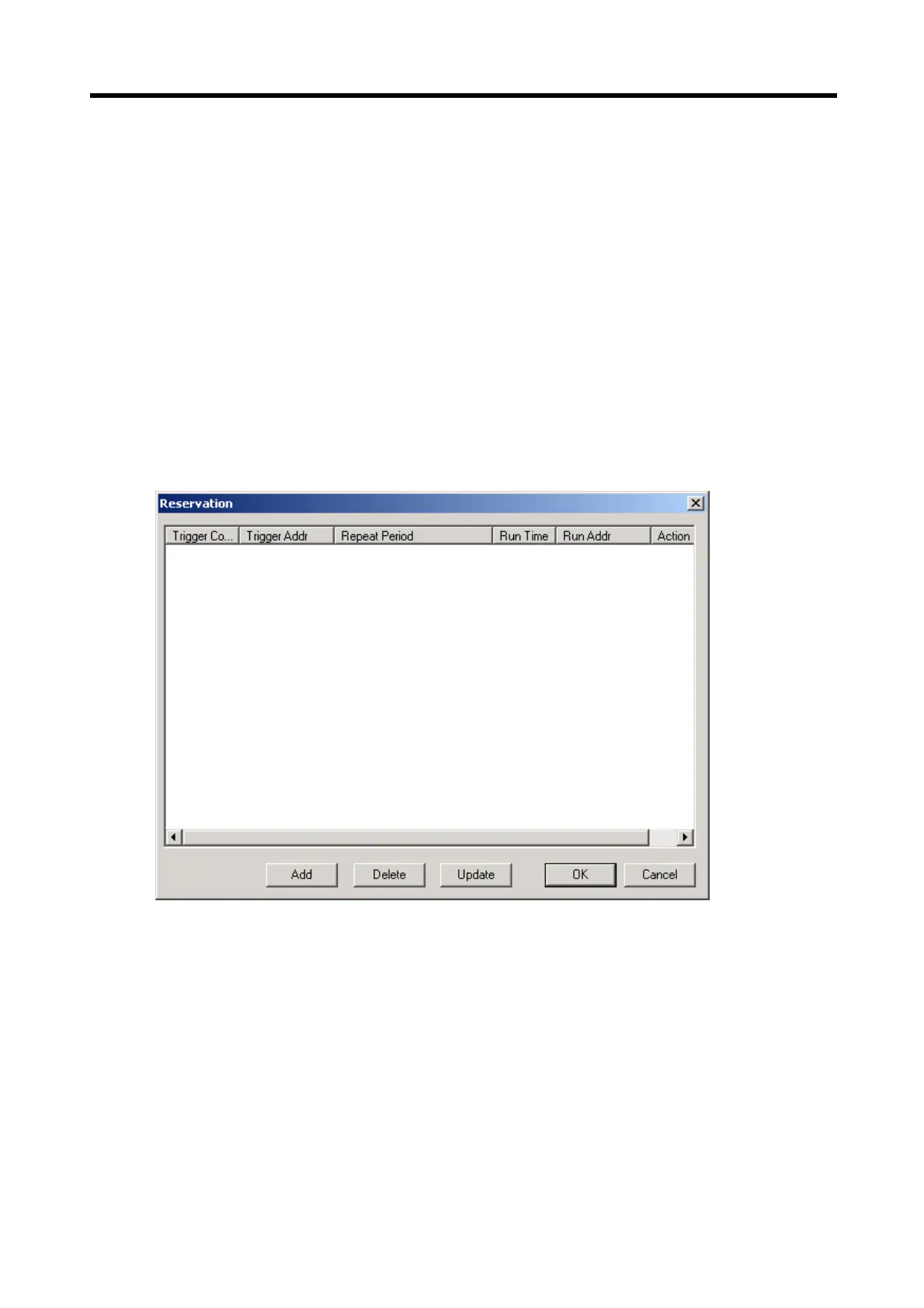

6.11.7 Reservation
Makes a specific bit turned On or Off of the internal memory of the instrument or XGT Panel connected at the time reserved
with the Reservation function.
Reservation function is available only at XP10BKB/DC.
• Click the Add button to register a reservation function.
To Next Page
