Chapter 8. Communication Driver
8-13
8.6.3 Connection Diagram

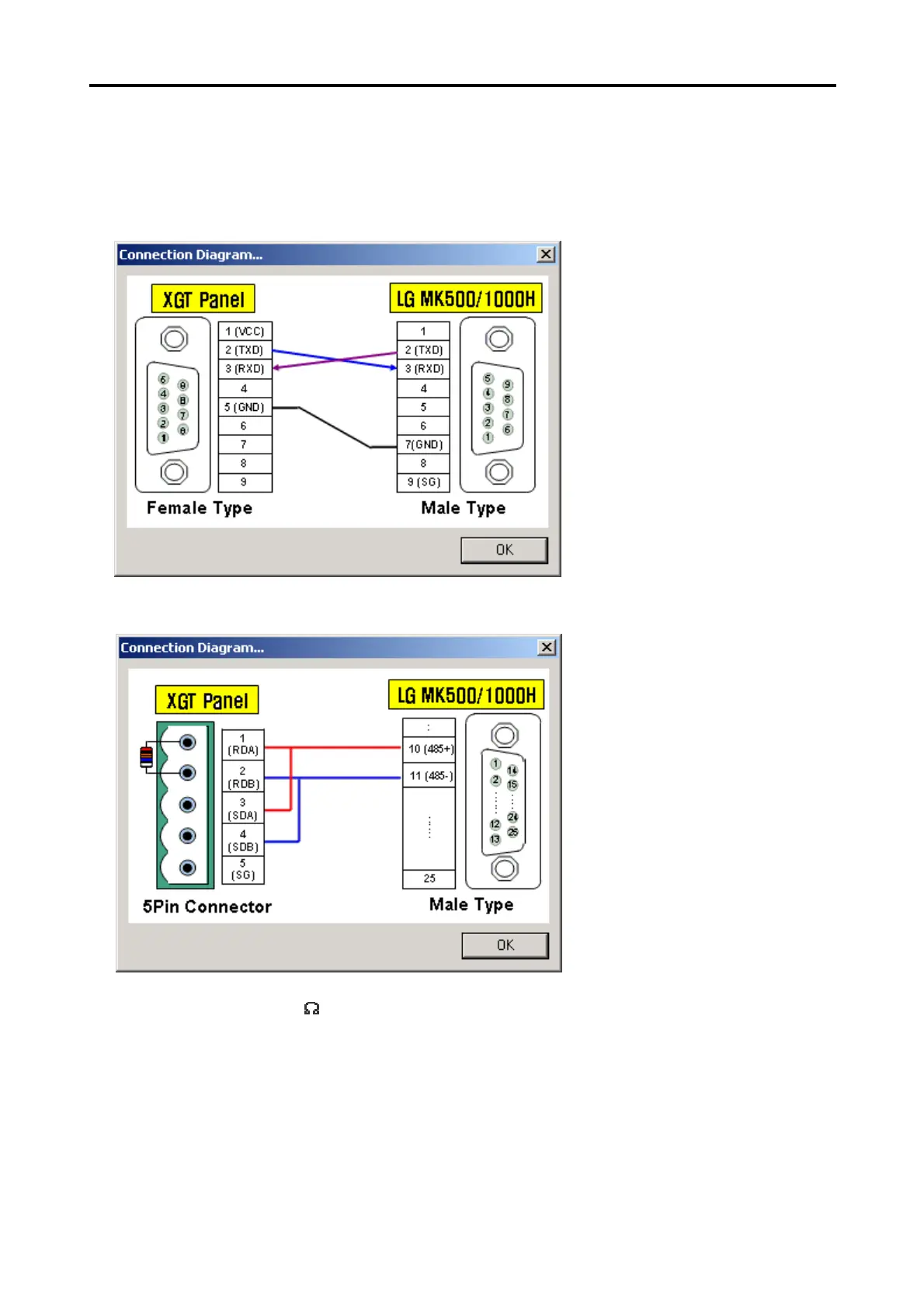

The Connection Diagram of XGT Panel and LS
MASTER-K500H/1000H is as shown below.
Use the Connection Diagram button of PLC Type Change on the
Panel Editor to check the Connection Diagram below.
1) CH 1(if connected with RS-232C used)
2) CH 2(if connected with RS-422/485 used)
* Use terminal resistor 120
