Chapter 8. Communication Driver
8-18
8.8.3 Connection Diagram

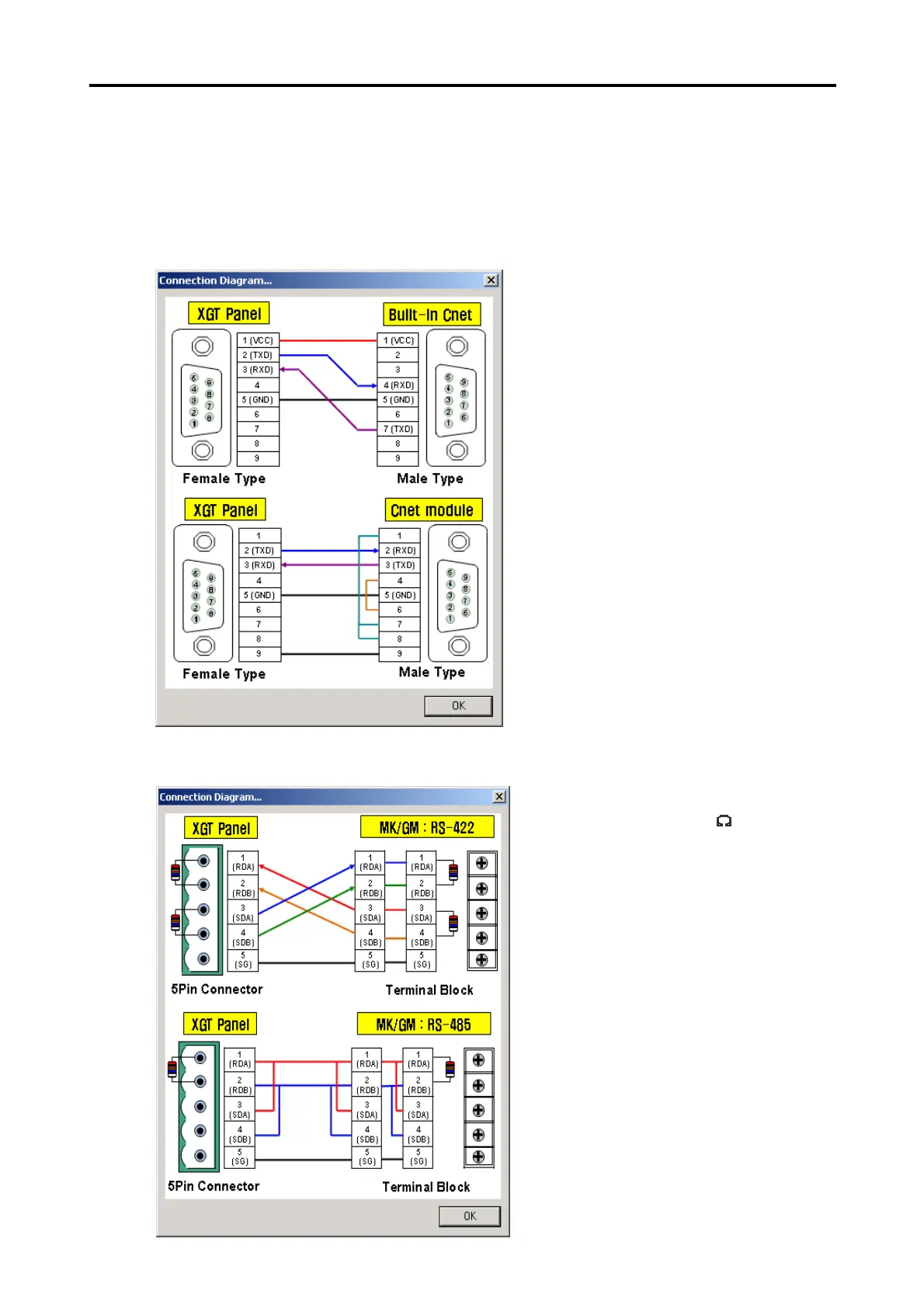

If the Dedicated Protocol is used, the Connection Diagram of XGT Panel and GLOFA GM series is as shown below.
Use the Connection Diagram button of PLC Type Change on the Panel Editor to check the Connection Diagram below.
1) CH 1(if connected with RS-232C used)
2) CH 2(if connected with RS-422/485 used)
* Use terminal resistor 120
