Chapter 4. System Configurations
4-13
4.5 Slave Configuration
XGT Panel can be used as a slave, and LS: MASTER-K (Link) and MODBUS (RTU, ASC) communication protocols are only
available. In this case, the master of the system can read and write the system memory area (S0 ~ S999) of the XGT Panel.
Channel 1 and channel 2 of the XGT Panel are used individually, so it is possible that the one channel can be used for the master
and the other channel for a slave. In some cases, both of the channels can be used for a slave.

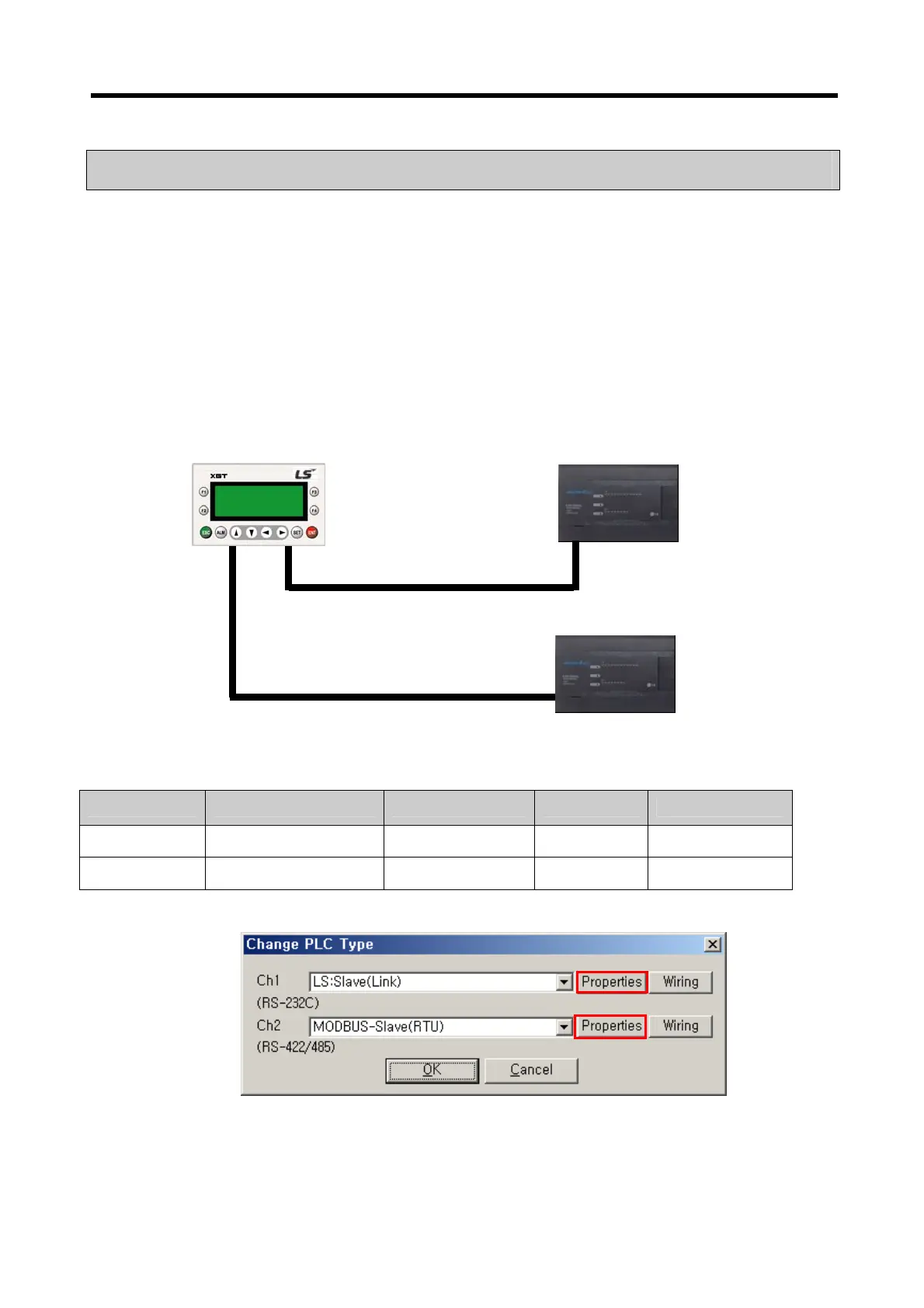

This is the example that the XGT Panel is used as a slave.
-. Channel 1: LS MASTER-K120S is the master and the LS:Slave(Link) protocol is used to connect to the XGT Panel.
- .Channel 2: LS MASTER-K120S is the master and the MODBUS-Slave(RTU) protocol is used to connect to the XGT Panel.
Ch1: select LS:Slave(Link)
Ch2: select MODBUS-Slave(RTU)
Channel Protocol Device Communication
Remark
Ch 1(RS-232C) LS:Slave(Link) LS MASTER-K120S Slave
Ch 2(RS-485) MODBUS-Slave(RTU) LS MASTER-K120S Slave
-
-2
2
To Next Page
