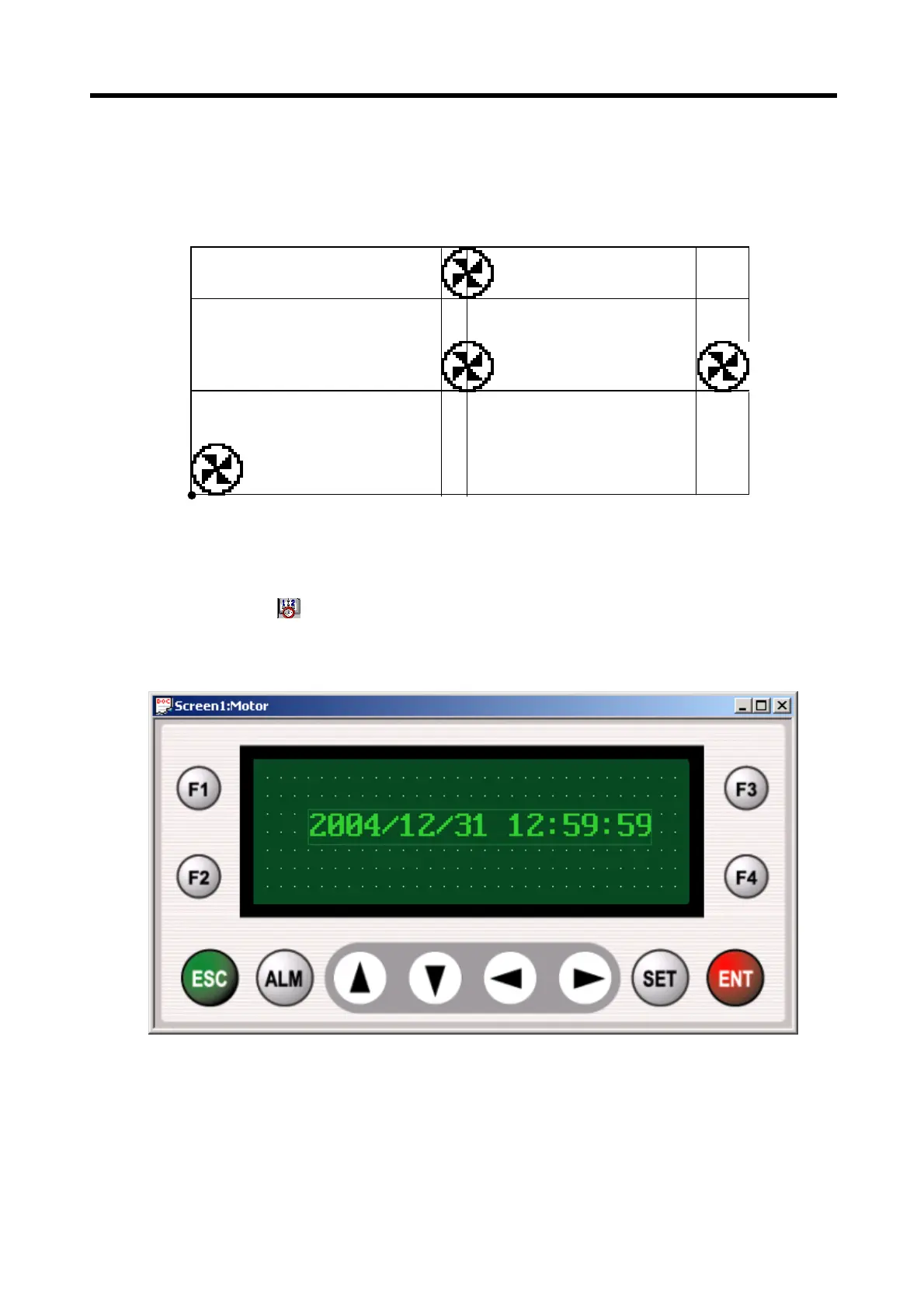

Chapter 6. Panel Editor
6-68
(1) Width Move Unit: Max. / Width = 100 / 100 = 1
(2) Height Move Unit: Max. / Height = 40 / 40 = 1
(3) Based on the value of the device specified on the X and Y axes, the Move Tag will be displayed.
6.9.10 Clock Tag ( )
Displays current time. (Available on XP10BKB/DC only)
60
50 120
X axis
20
Y axis
50,40
50,20
100,20
0
40
60 100
