Chapter 6. Panel Editor
6.1 Main Screen of Panel Editor

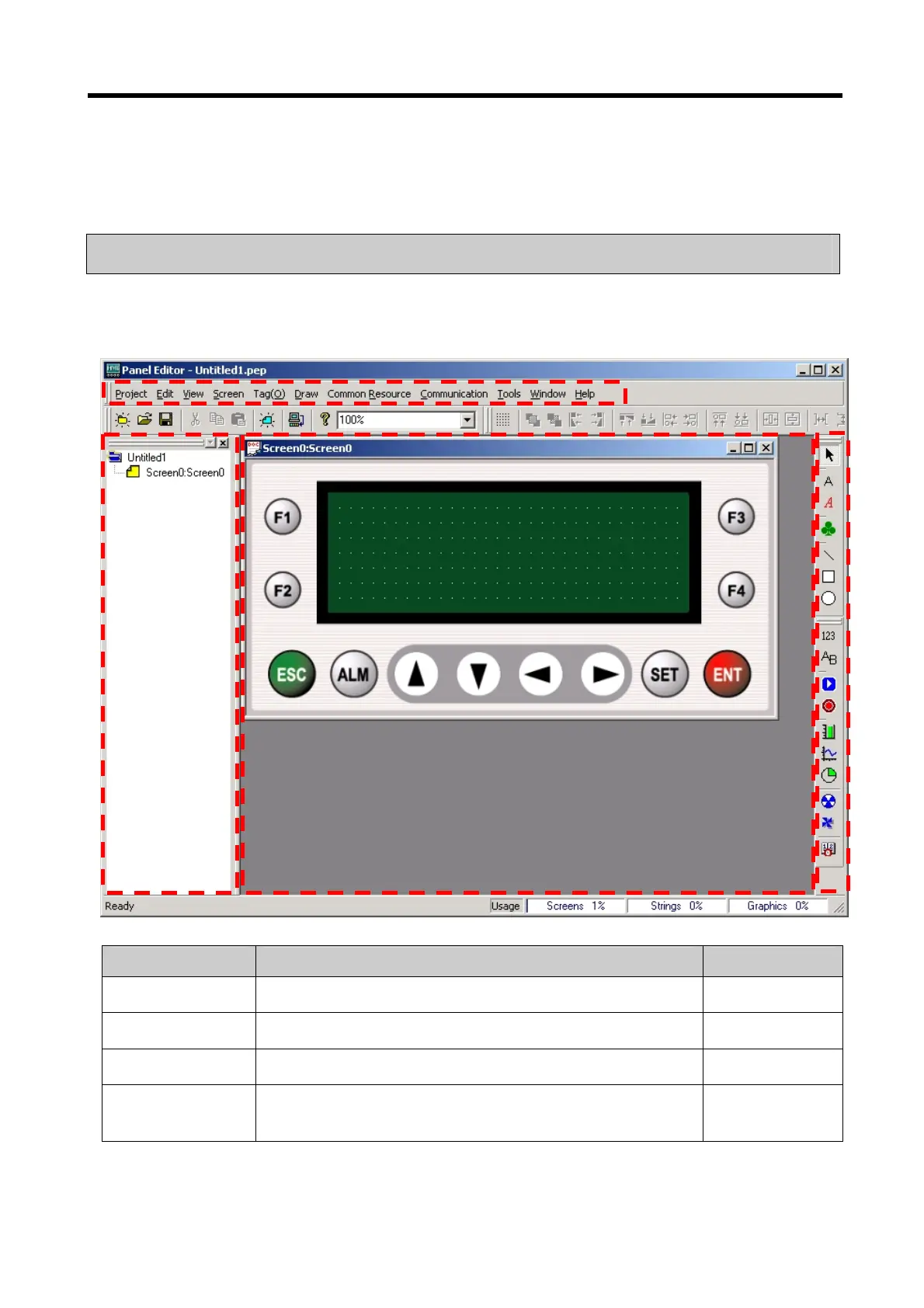

The Panel Editor consists of four windows and their function’s are as follows.
Item Description Remark
Project window (A) Displays the active project and the screen list.
Toolbar (B) Shows various tags and tools.
Screen Edit Window (C) Displays the active window.
Menu (D)
Displays File, Edit, View, Screen Tag, Draw, Common Resource,
Communication, Tools, Window, Help menu.
D
A
B
C
