Chapter 6. Panel Editor
6-28

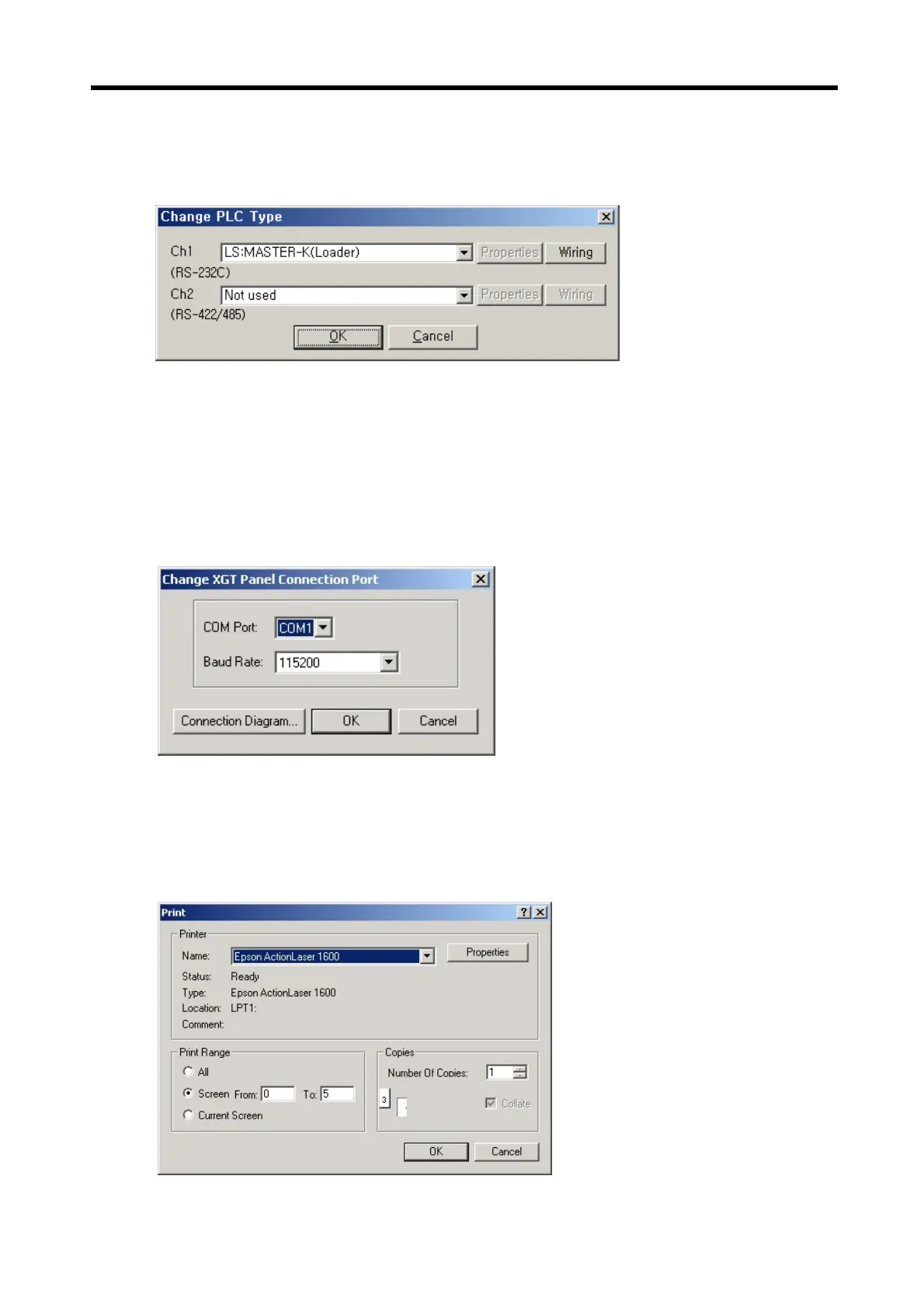

(2) Select the device to connect and specify the communication settings, and then the device is changed.
(3) Refer to the section 6.5.1 for the communication setting and the wiring.
6.5.6 Change COM Port
Changes current COM Port and the baud rate.
(1) Select ‘Change COM Port’, and then the below window is displayed.
(2) Change the COM Port and Baud Rate, and select OK.
(3) Refer to the section 6.5.1 for details.
6.5.7 Print
Print the current screen, used tag list for each screen and properties.
(1) Click ‘Print’ on the Project menu, then the figure shown below is displayed.
(2) Set a printer, printer range and the number of copies.
