Chapter 4. System Configurations
4-10

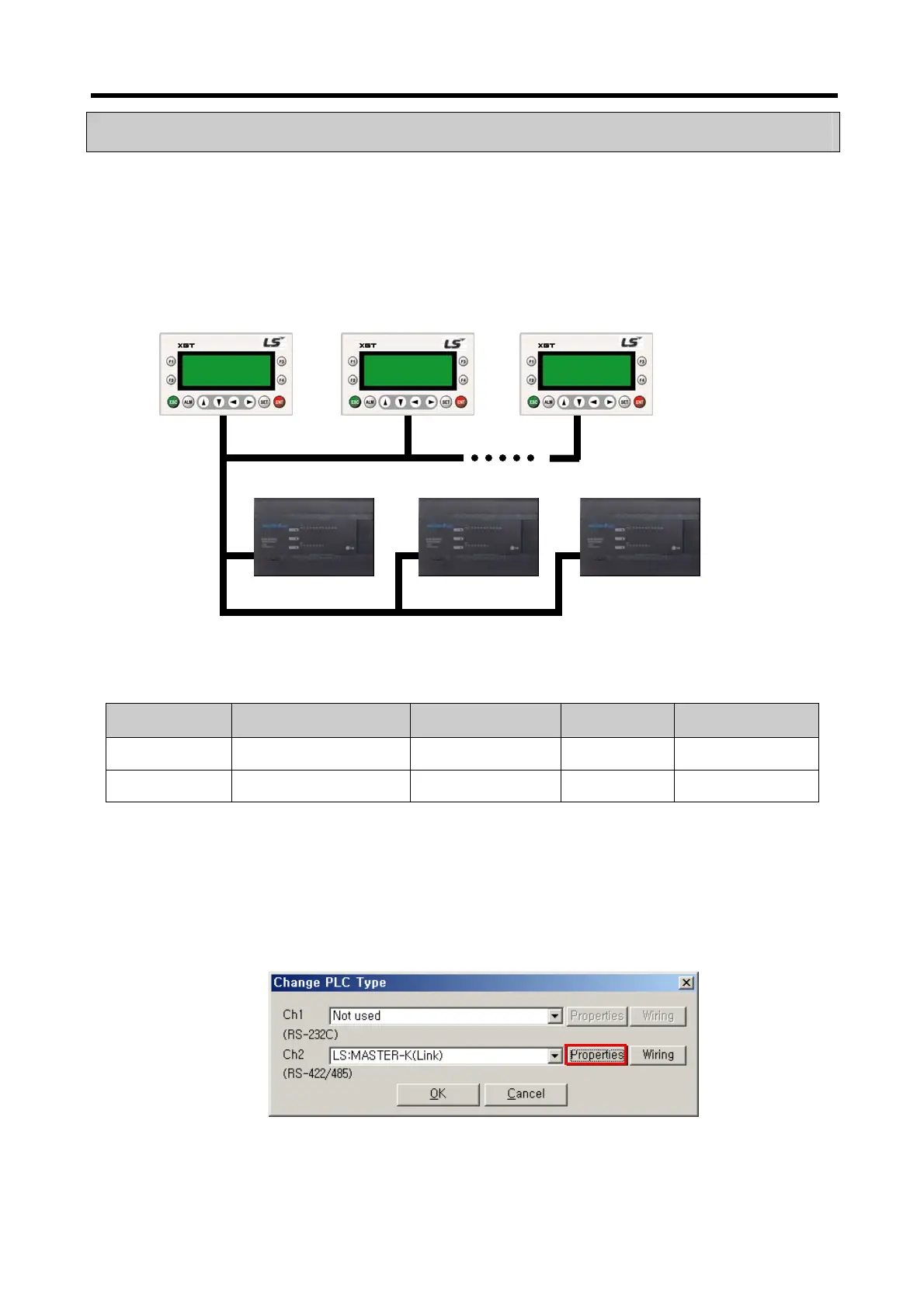

4.4 N:M Configuration
This is the example that many XGT Panels control many slaves as a multiple-master (available on RS-422/485 only) and it enables
the N:M communication system.
Up to 32 stations (station 0 ~ station 31) including the XGT Panel are available, and the example of the N:M communication system
is shown below. (The maximum number of the stations can be changed according to the device.)
System configuration example)
To make above system, make N projects (for each XGT Panel).
For each project, follow the steps as descried below.
All projects have the same PLC type like figure below.
Channel Protocol Device Communication Remark
Ch 1(RS-232C) Not used - -
Ch 2(RS-485) LS:MASTER-K(Link) LS MASTER-K120S N:M
-
To Next Page
