Chapter 4. System Configurations
XGT Panel provides two individual communication channels (RS-232C, RS-422/485), so it can be connected to the various type of
devices.
This section describes the outline of communication system of the XGT Panel series.
4.1 1:1 Configuration

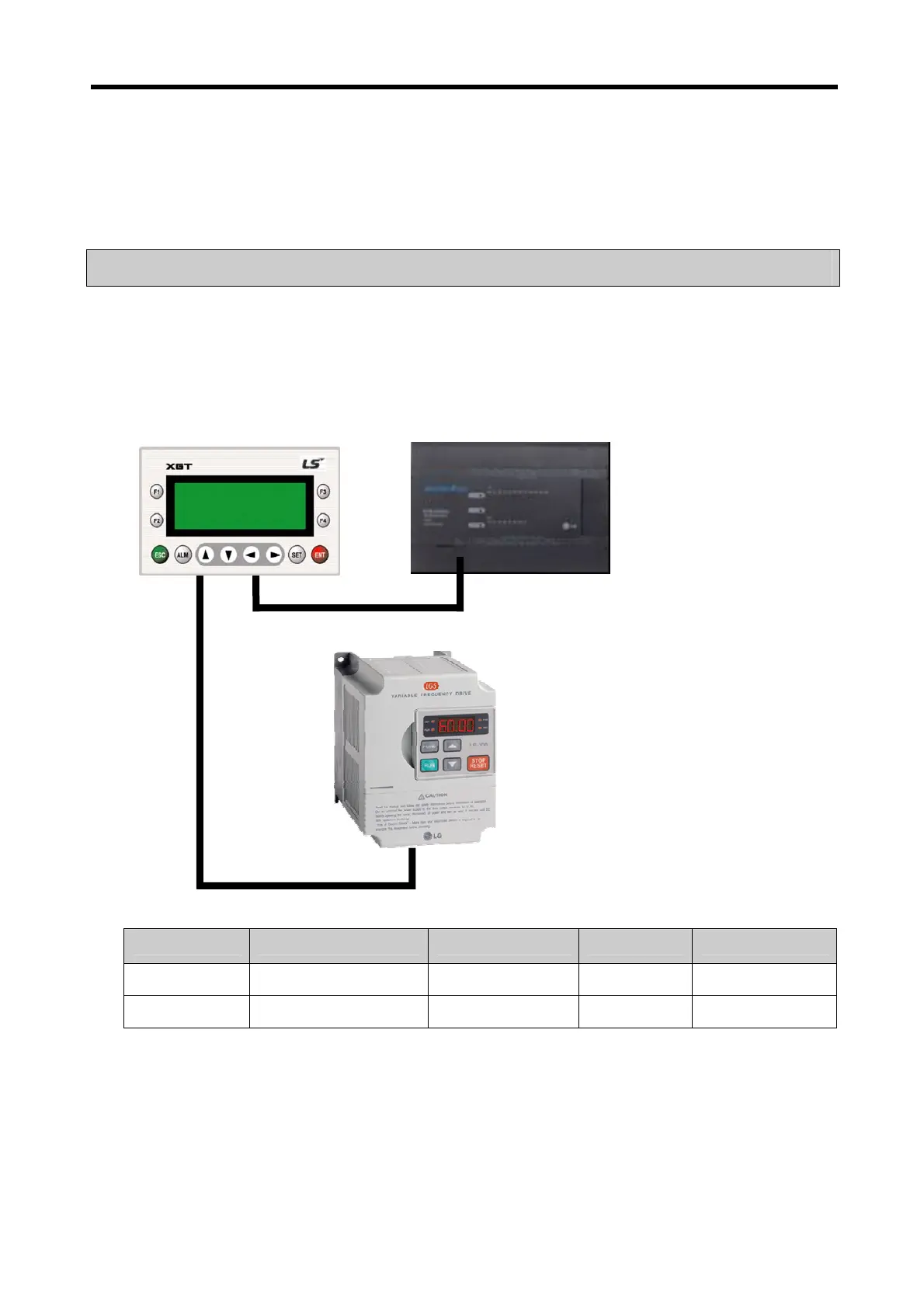

The 1:1 communication system using XGT Panel can be configured as shown below.
In this case, XGT Panel is a master and the others are slaves.
-. Communications channel 1 (RS-232C) links to the LS MASTER-K120S via LS MASTER-K Loader protocol.
-. Communications channel 2 (RS-485) links to the LS inverter via LS Inverter dedicated protocol.
Channel Protocol Device Communication Remark
Ch 1(RS-232C) LS:MASTER-K (Loader) MASTER-K120S 1:1
Ch 2(RS-485) LS: Inverter LS Inverter IG-5 1:1
RS-232C
RS-485
