Chapter 4. System Configurations
4-2
System configuration example)

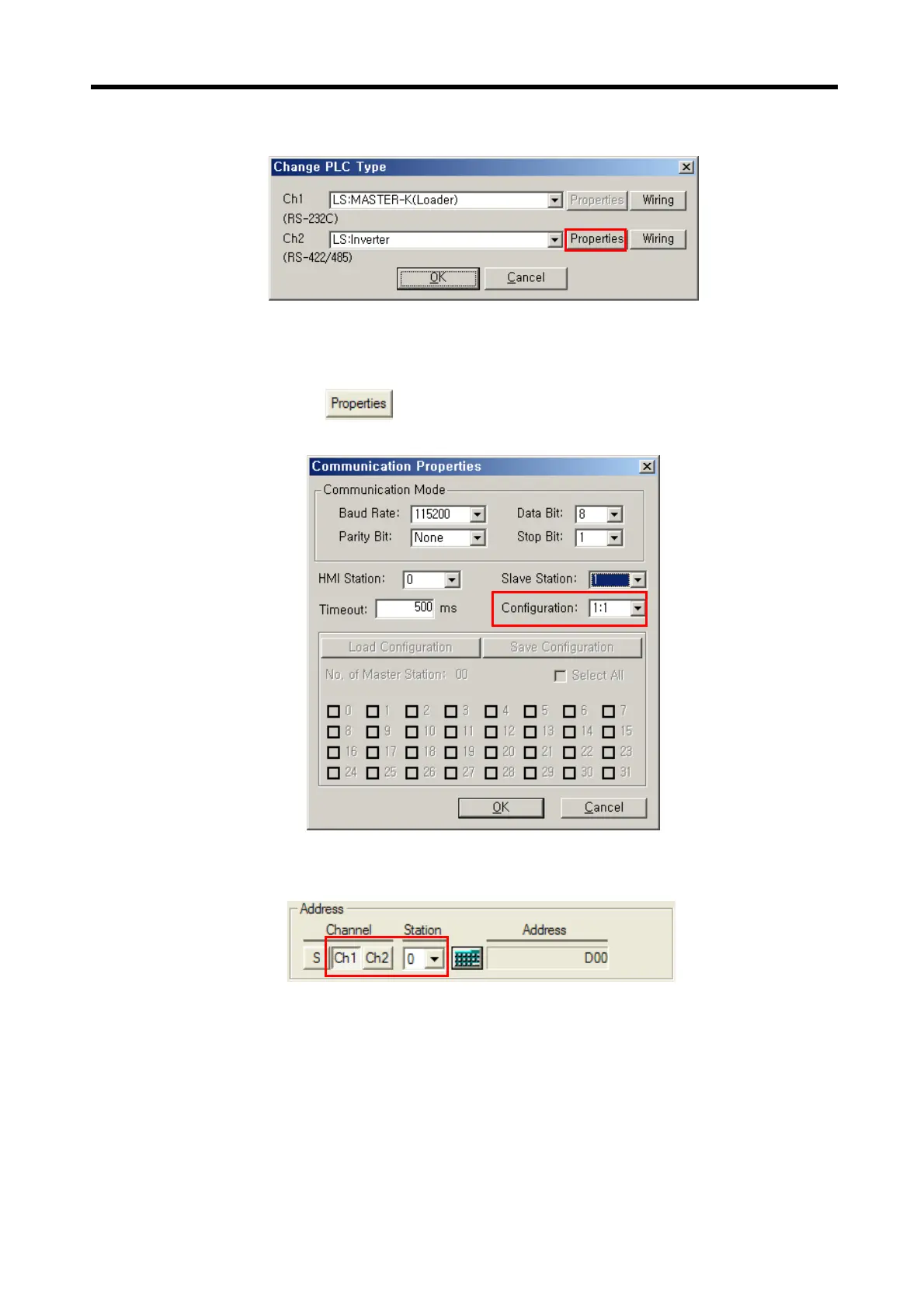

When making the system like above figure, set the menu like figure below.
In RS-232C, only 1:1 connection is available but in RS-422/485, 1:1, 1:N are available.
Ch1: select LS:MASTER-K(Loader)
Ch2: select LS:Inverter
For 1:1 connection of Ch2, select
.
In the Communication Properties window, set Configuration as 1:1.
If setting is completed, XGT Panel is ready to communication with the controller connected at each channel.
In order to communicate, select channel and station at the tag setting window like figure below.
If setting is done like above figure, XP10 can read/write data of device D0.
(Detail function is different according to tag type.)
