Chapter 6. Panel Editor
6-73

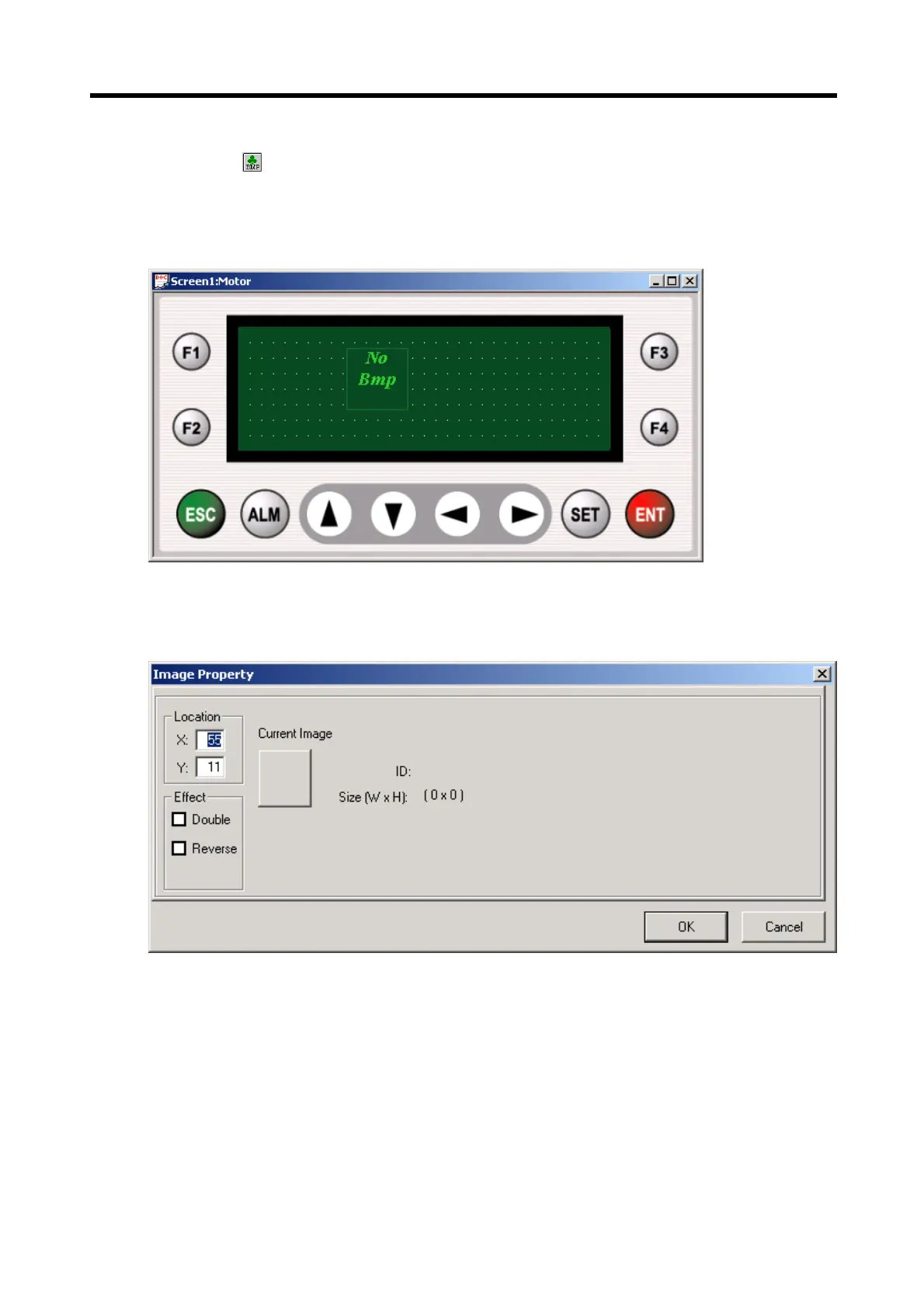

6.10.4 Image ( )
Displays a bitmap image.
In order to specify the property of the Image Tag, double-click to display the Property setting window as shown below.
The Location and Effect in the Image Property should be set identical to ‘6.9.1 Numeric Tag’.
1) Edit Image
(1) Allows the displayed image to be changed or added as requested by the user.
(2) See 6.3 for details on Edit Image and Add Image.
(3) However, the size of the image should not exceed 192*64 dots.
To Next Page
