(3) Drag the tag with the mouse to move the tag, when the coordinates will change automatically..
(4) Relocating is available by dragging the mouse.
2) Effect
(1) Outline: Displays the outline of the numeric tag in solid line.
(2) Reverse: Reverses the tag's color.
3) Font
(1) Small: Changes the size of the character to 6 x 8 dots.
(2) Middle: Changes the size of the character to 8 x 16 dots.
(3) Large: Changes the size of the character to 16 x 32 dots.
4) Address
(1) Refer to the section‘6.9.1 Numeric Tag’ for details.
5) Edit Message
(1) Edits the details of the message tag according to the change of the device of the instrument connected.

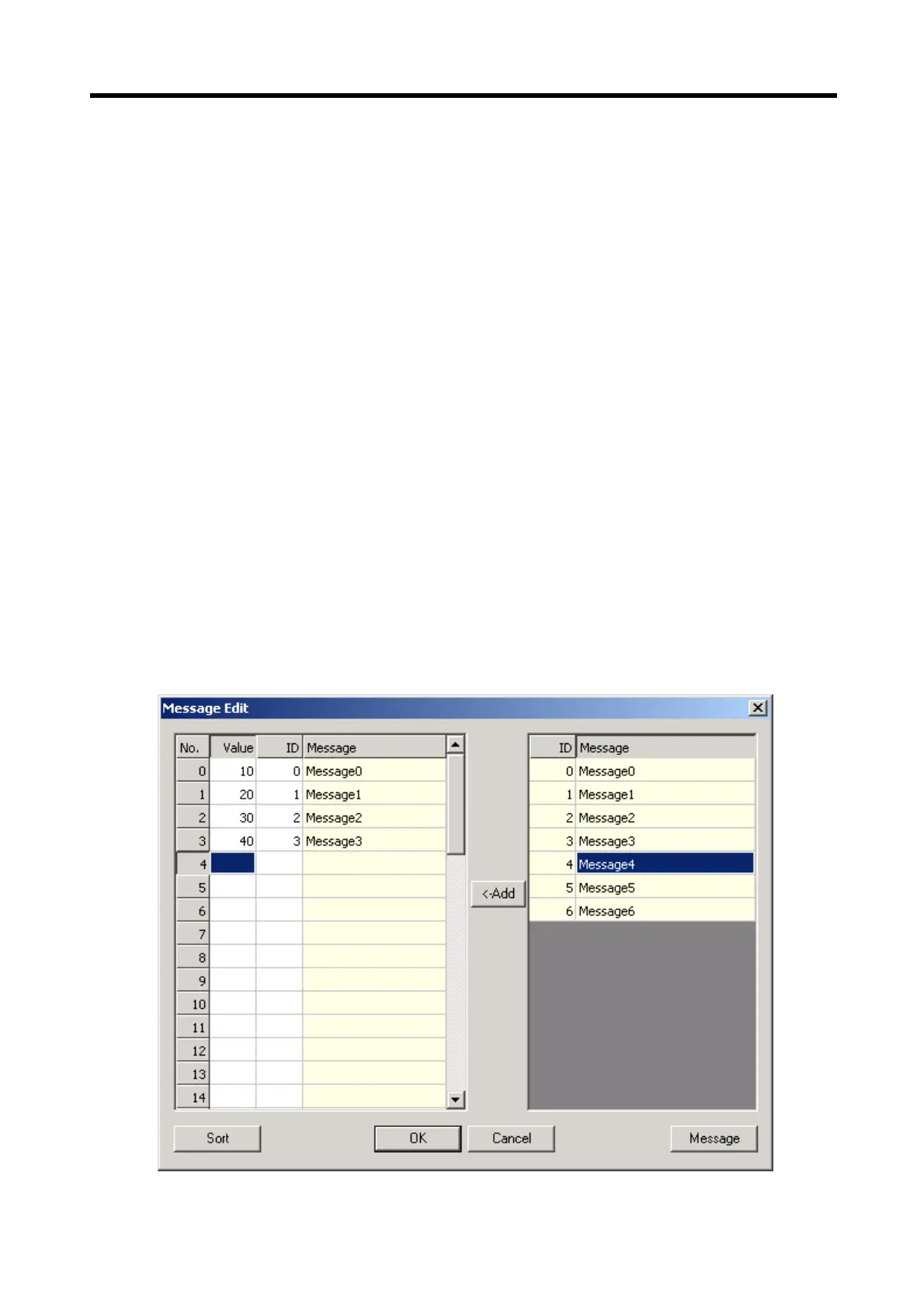

(2) Click ‘Message Edit’ in the property setting window to display the Message Edit screen as shown below.
