(2) Height: Specifies the height of the trend graph.
-. Available range: 8 ~ 64.
-. Any other value than specified above will not be set.
(3) Sampling Number
-. Specifies a maximum number of the section of X-axis. If the sampling number is set as 20,
A graph will be drawn by 1/20 of X-axis per sampling time.
(4) Sampling Time
-. Specifies a displaying time interval
-. 1~3,600 sec.
2) Example

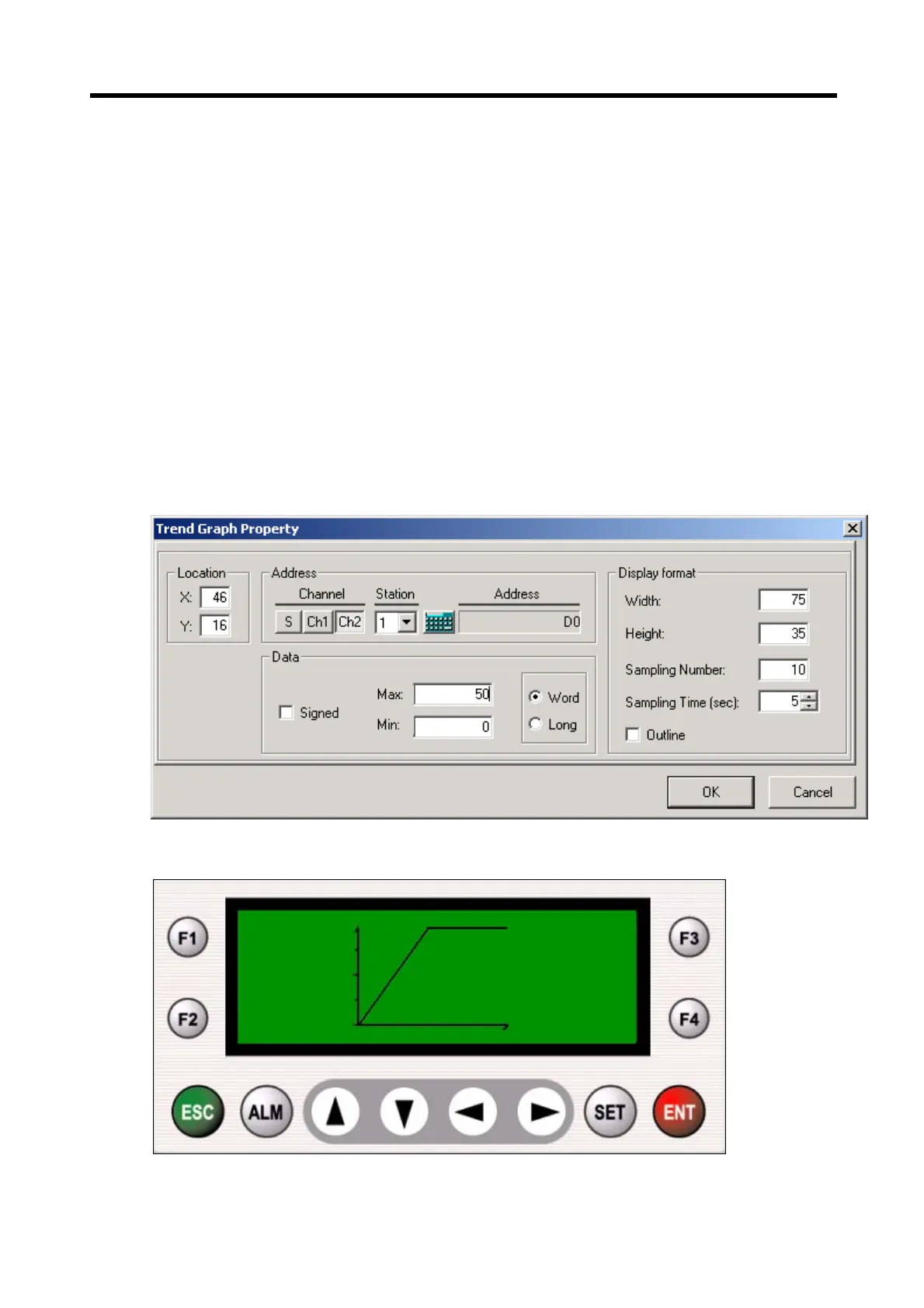

Assume that the properties of a bar graph are specified as shown below, and the value of D0000 of Station 1 increases
by 2 per second.
Thereupon, the Trend Graph Tag of the XGT Panel will be displayed as shown below.
