[5] CHECKING/CLEANING FUEL FILTER POT
• The fuel filter pot has fuel (diesel oil) inside. Be extremely careful of fire such as cigarette when
cleaning the water separator pot.
• If the fuel spills when the fuel filter pot is removed, thoroughly wipe it off.
CAUTION
• Water or dust accumulated inside the fuel filter pot will cause engine failure. Check inside the
pot and remove any water or dust accumulated inside.
• If water remains in the fuel filter pot, it is assumed that much water is also mixed in the fuel
tank. See “Maintenance 8.7 Maintenance for Every 50 Hours” and eliminate water and dust
mixed into the fuel tank.
1. Stop the machine at leveled location.
2. See “Operation 1.9 Engine Hood” and open the engine hood.

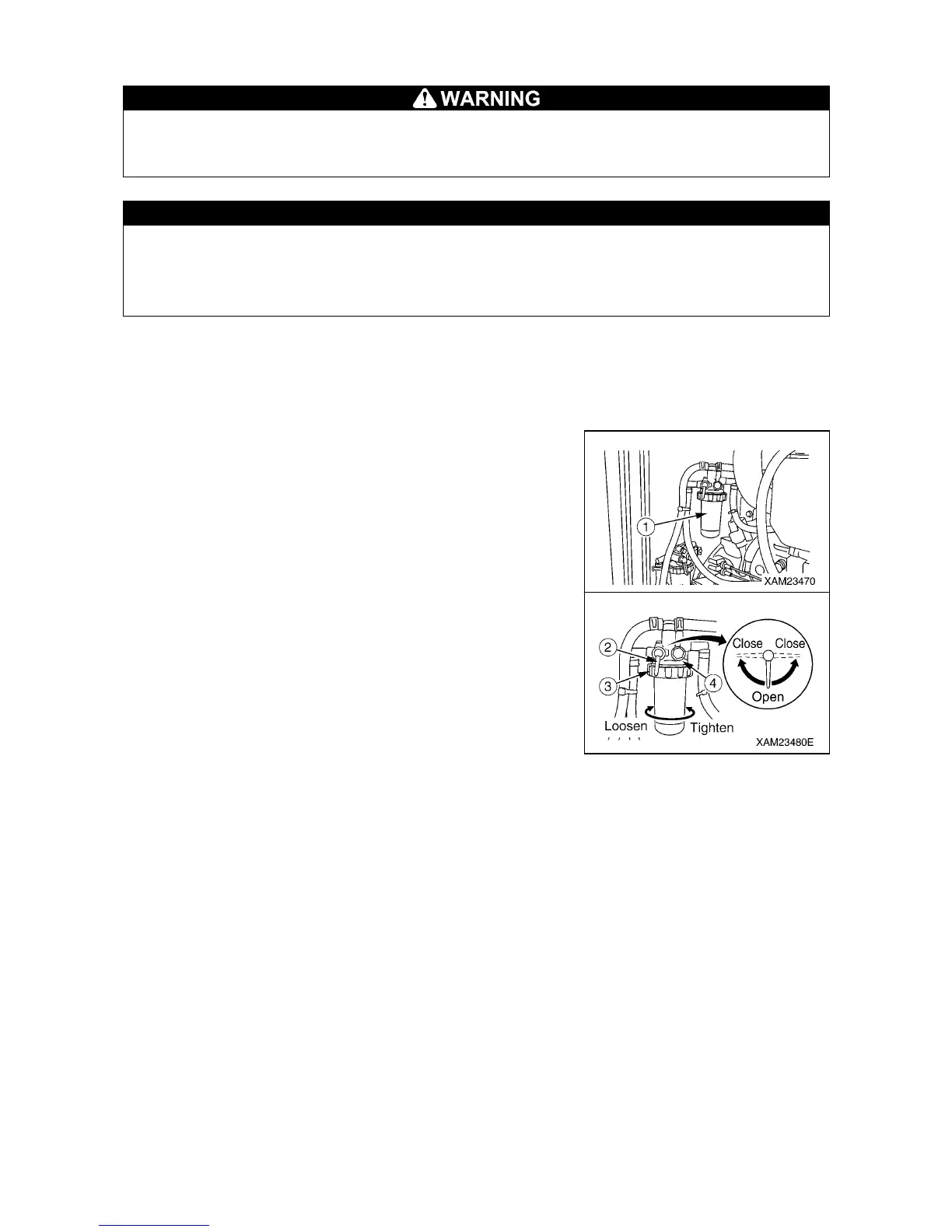

3. Inspect the fuel filter pot (1) and check for water or dust
accumulated inside the pot, and also for the dust or similar
object blocking the element.
4. If water, dust or similar object is accumulated inside the pot (1),
clean the inside of the pot using the following procedure.
(1) Raise the lever (2) of the head (4) section to horizontal
position (close) to shut off the fuel.
(2) Turn the retainer ring (3) of the head (4) section counter
clockwise to loosen, then remove the pot (1) from the head
(4) section.
(3) Drain the fuel and water out of the pot (1).
(4) Clean the pot (1) and element with diesel, and spray the
compressed air (0.20 to 0.29 MPa {2 to 3 kg/cm
2
}) inside to
scrape off the dusts from the surface.
(5) Set the pot (1) to the head (4) section, then turn the retainer
ring (3) clockwise to tighten.
(6) Lower the fuel lever (2) of the head (4) section down to the
vertical position (open) to open the fuel circuit.
5. See “Operation 1.9 Engine Hood” and close the engine hood.
