1-9

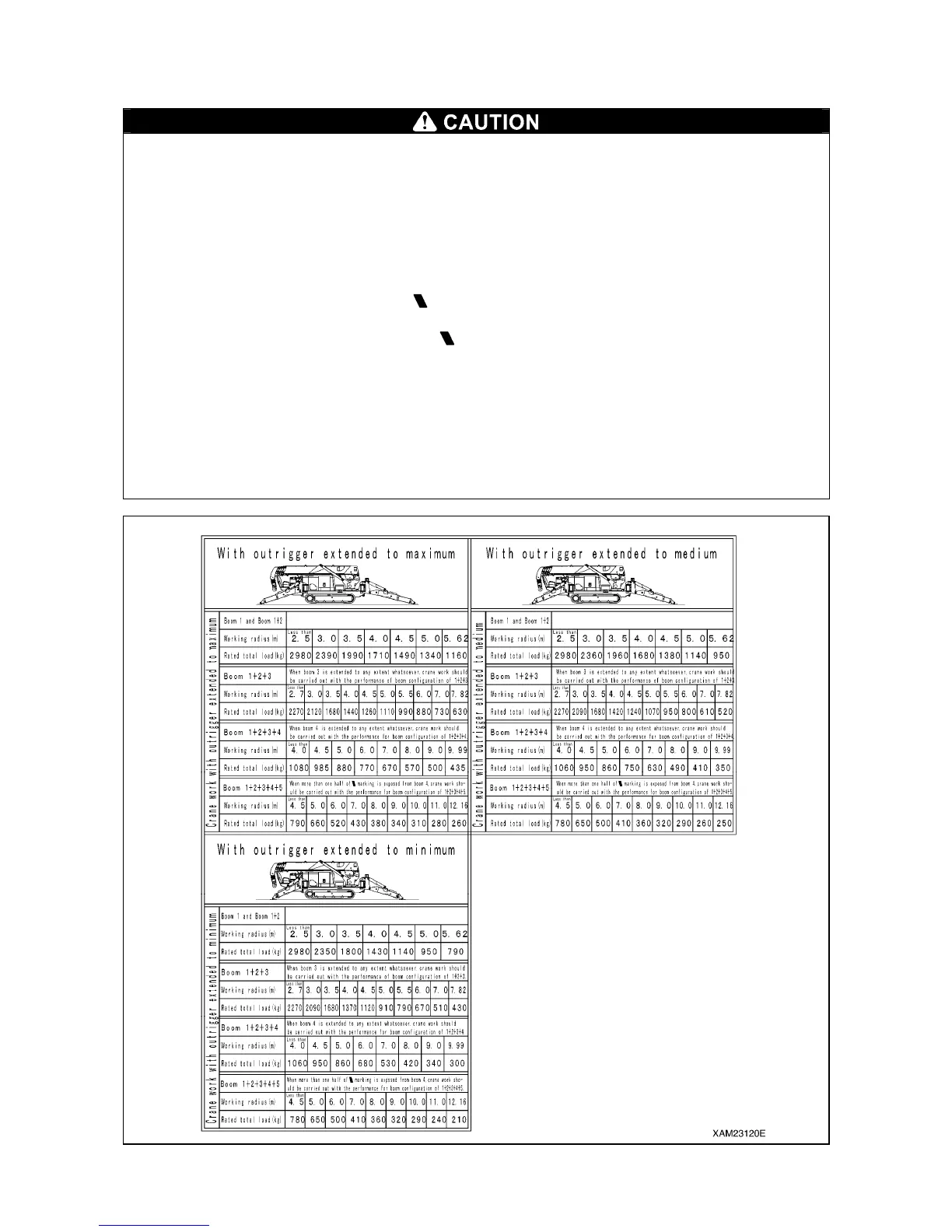

5.3 RATED TOTAL LOAD CHART
Rated total load chart is based on level, hard ground. Depending on the outrigger setting or
ground conditions, machine may tip over.
Rated total load chart is based on working radius with bending of boom and lifted load
taken into consideration.
If boom e is extended to any extent, work should be performed within the capacity for
“5.575m Boom”.
When more than one half of the first
mark is exposed from the boom (2), work should be
carried out within the performance for the “7.075m Boom”.
When more than one half of the second
mark is exposed from boom (2), work should be
carried out within the performance for the “8.575m Boom”.
If working radius exceeds the value of Working Radius column in the chart by any extent,
work should be performed within the rated total load in the next column of Working Radius.
Rated total load is shown with the mass of hook (20kg) included.
Unless outrigger is extended to maximum, work should be performed in accordance with
the “Rated Total Load Chart without extending outrigger to maximum”.
