4-21

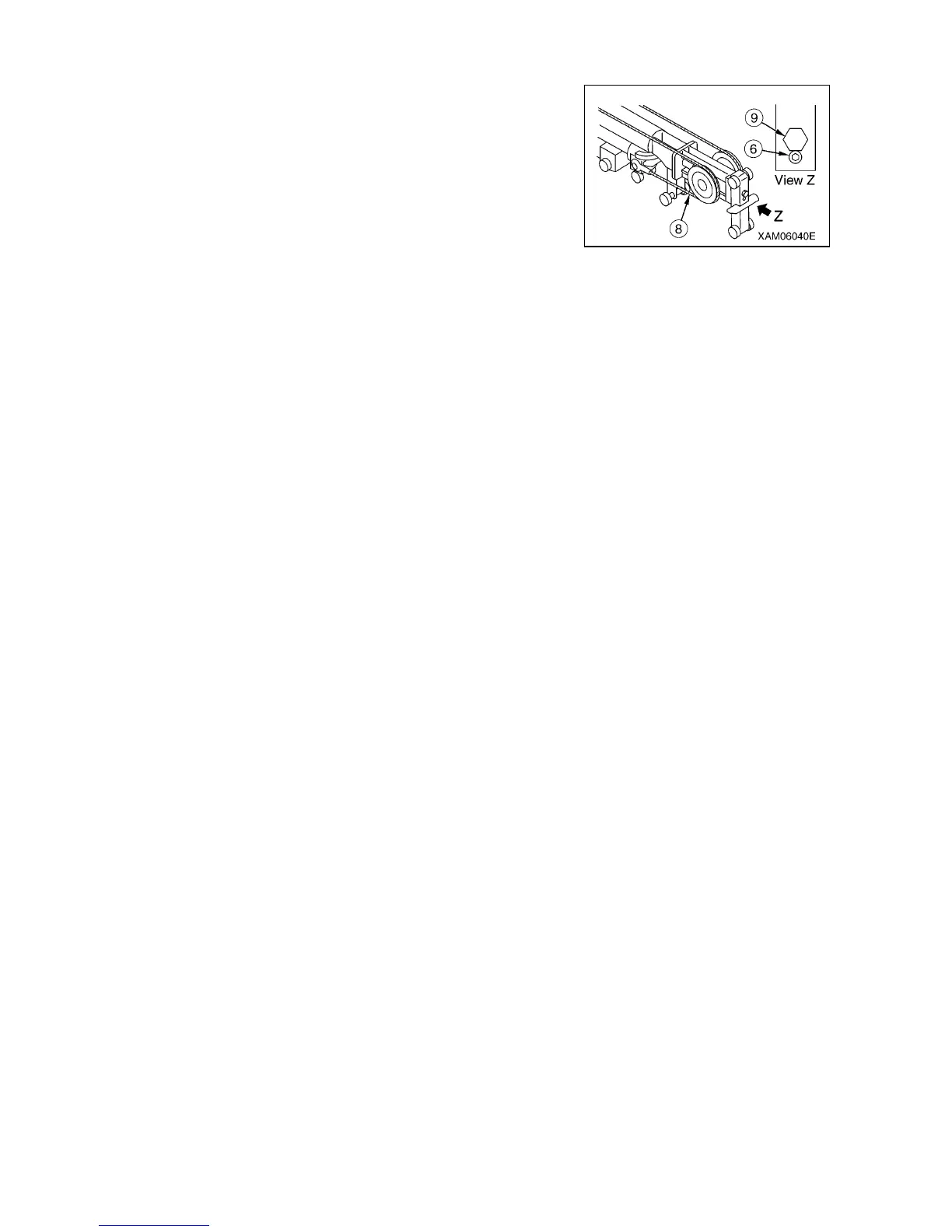

5. Adjustment of boom No.5 extending wire rope (8)
(1) Remove the lock bolt (6). Turn the adjusting bolt (9) in the
direction that the extending wire rope (8) of boom No.5
becomes tight (clockwise) to provide tightening to the verge
of the extension of boom No.5.
(2) Provide retightening to both adjusting nuts (4) of the boom
No.5 retracting wire rope (5) two turns each.
(3) Secure the adjusting nuts (4) of the boom No.5 retracting
wire rope (5) with the lock nut (3).
(4) Provide retightening to both adjusting bolt (9) of the boom
No.5 extending wire rope (8), and secure it with the lock bolt
(6).
6. Install the cover (2) to the boom end with the three mounting
bolts (1)upon completion of adjustment.
