3-28

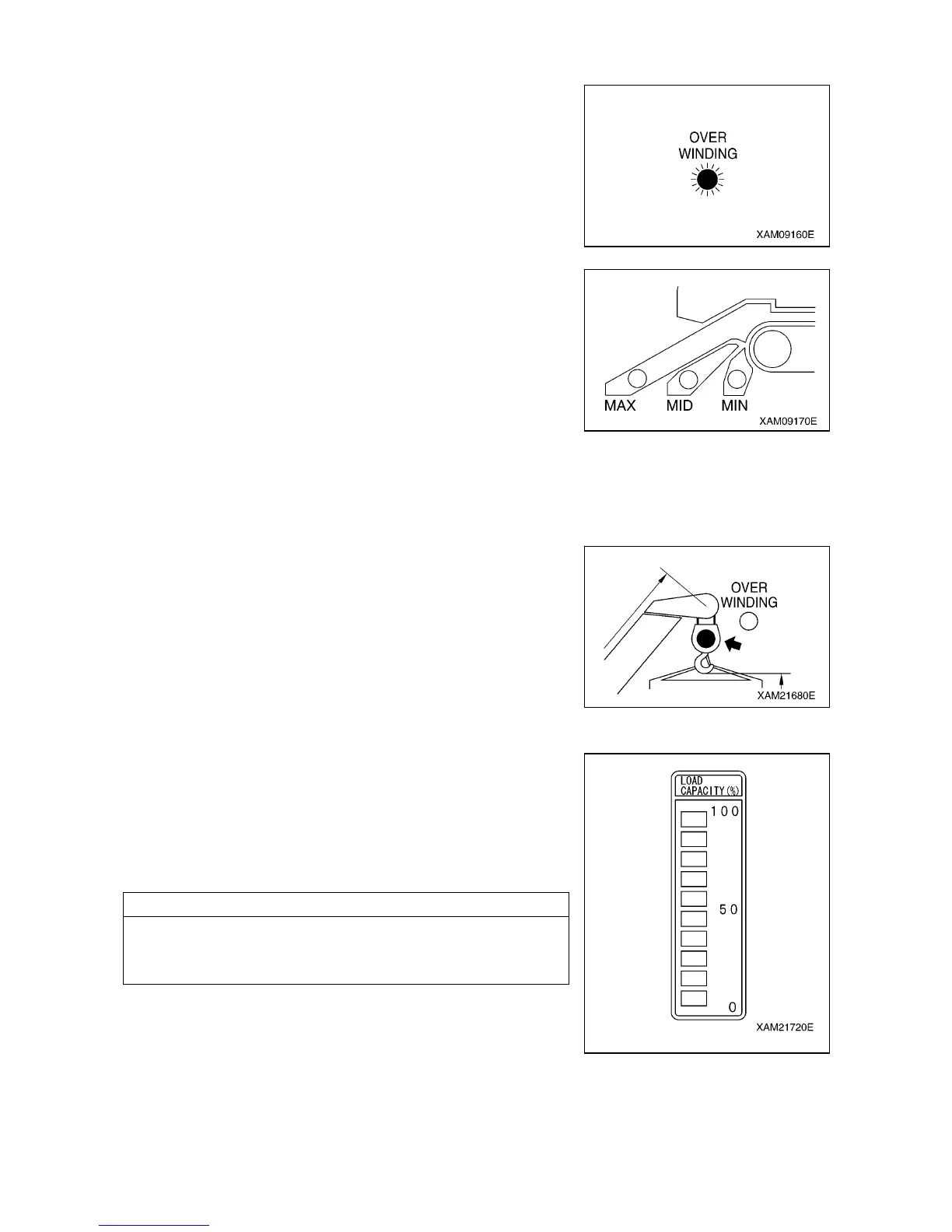

7. OVER WINDING LED (RED)
This LED flashes up when the hook is overwound, and issues
overwinding warning and causes an automatic stop.
This LED also flashes when the hook is stowed during the hook
stowing operation. This is normal.
8. OUTRIGGER EXTENSION LED (BLUE)
The LED lights up to indicate the outrigger extension status.
• If any of the four outriggers has not properly reached the middle
extension position, the “MIN” LED lights up.
• If all the four outriggers properly reach the middle extension
position, the “MID” LED lights up.
• If all the four outriggers reach the maximum extension position,
the “MAX” LED lights up.
Even if you thought you had set the outriggers at the maximum
extension position, the “MID” LED lights up if any of the outriggers
did not properly reach the maximum extension position.
9. LOAD FACTOR LED (CHANGES TO GREEN/YELLOW/RED)
This LED indicates the status of the moment limiter load factor by
its illumination.
• The LED lights up in green if the load factor is less than 90 %.
• The LED lights up in yellow if the load factor is 90 to less than
100 %.
• The LED lights up in red if the load factor is 100 % or higher.
10. LOAD FACTOR DISPLAY (YELLOW)
This display indicates the status of the moment limiter load factor
by its illumination.
• The load factor is indicated by ON/OFF of the “bar” according to
the changes of the load factor.
• All the “bars” will be ON when the load factor reaches 100 % or
higher.
NOTES
When the load factor is about 50 %, all the “bars” around the
number “50” on the right and below are ON.
All the “bars” around the number “50” and above are OFF.
