OPERATING PROCEDURES GRT8120 OPERATOR MANUAL
4-100 Published 3-22-2021, Control # 702-02

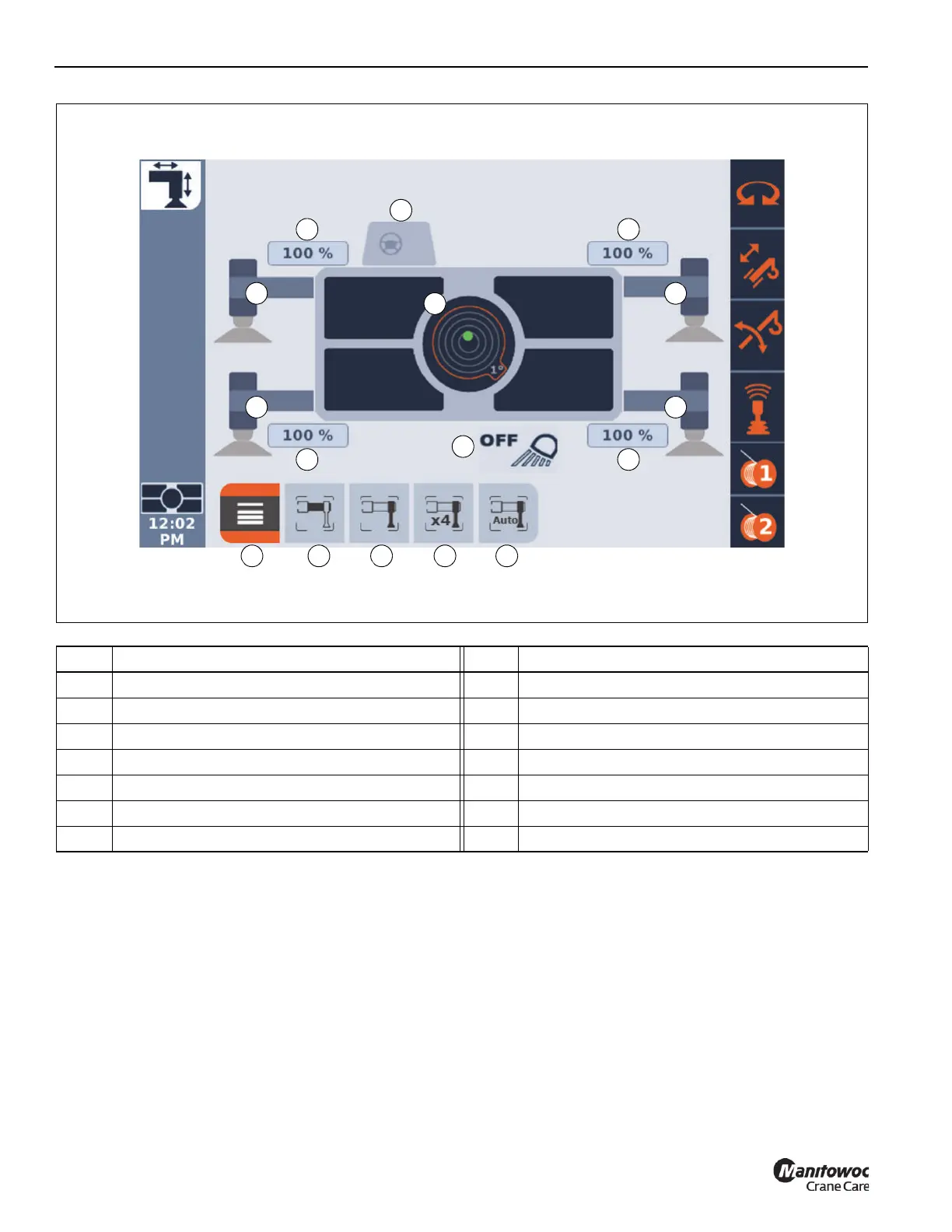

Item Description Item Description
1 Left Front Beam/Jack 8 Menu Screen Icon
2 Right Front Beam/Jack 9 O/R Beams Icon
3 Right Rear Beam/Jack 10 O/R Jacks Icon
4 Left Rear Beam/Jack 11 O/R Jacks x4 Icon
5 Percentage Outrigger Beam is Extended 12 Auto-level Icon
6 Steering Wheel (to indicate front of crane) 13 Side Mounted Carrier Work Lights On/Off Icon
7 Inclination Indicator
FIGURE 4-94
10269-1
1 2
4
5
6
11
8
7
9
10
12
3
5
55
13
