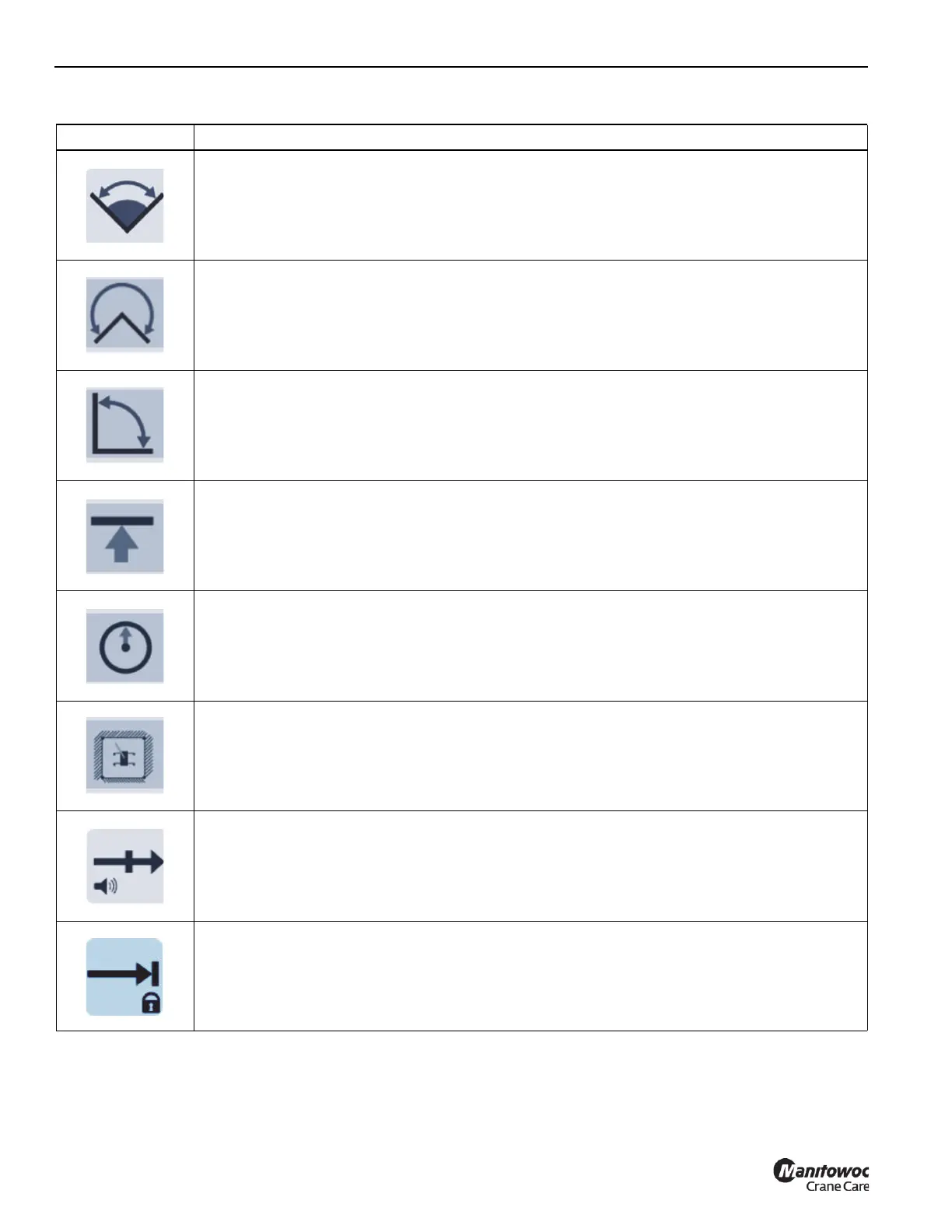

Table 4-9 – WRL Limitation Screen Symbols
Symbol Description
Symbol represents the Working Range Limitation (WRL) Menu Group.
Symbol represents the Swing Angle Limitation.
Symbol represents the Boom Angle Limitation.
Symbol represents the Boom Height Limitation.
Symbol represents the Working Radius Limitation.
Symbol represents the Virtual Walls Limitation Menu.
This Symbol is an audible alert selection. If this symbol is shown, the audible alert is functioning.
Hitting OK can change this symbol to the Lock-Out Option (shown as the next Symbol below).
This Symbol is a Lock-Out Warning Symbol. If this symbol is shown, the optional Lock-Out is
functioning. Hitting OK will change the function to the audible alert option (as shown above).
