FUNDAMENTAL

PROCEDURES

9MUGIX.OOs

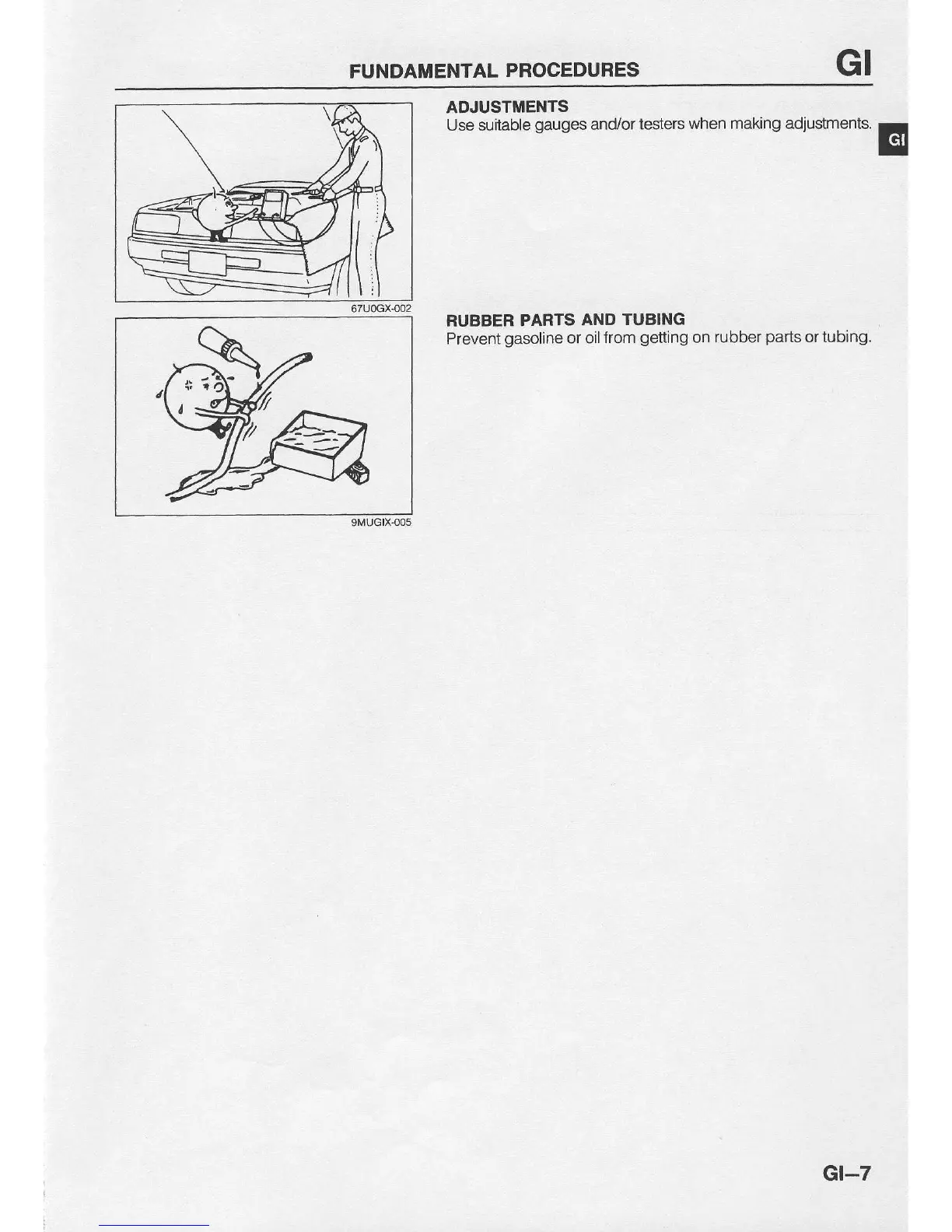

ADJUSTMENTS

Use suitable

gauges

and/or testers

when

making adiustments.

RUBBER

PARTS

AND

TUBING

Prevent

gasoline

or oil from

getting

rubber

parts

or tubing.

57UoGX-002

Gt-7
