TRANSAXLE J
0
30 (0.012)
I
0
40 (0.016)
|
0 50
10
0r9)

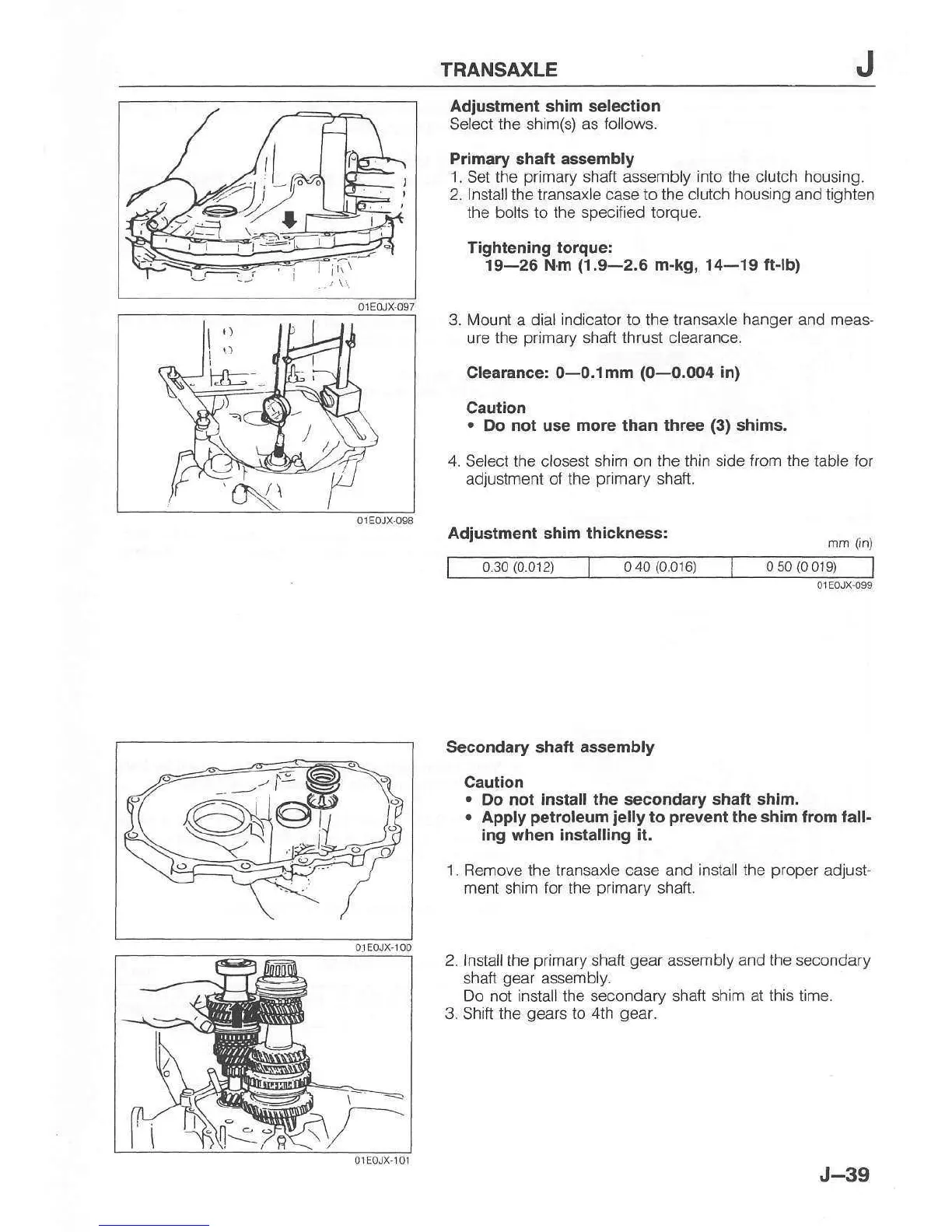

Adiustmeni
shim selection
Select the shim(s)
as follows.
Primary
shaft assembly
1. Set the
primary
shaft assembly
into
the clutch
housing.
2. Installthe transaxle case to the clutch housing and tighten
the
bolts
io the soecified torque.
Tightening torque;
19-26 N.m
(1.9-2.6
m-kg, 14-19 ftlb)
3. l\4ount
a
dial indicalor to the transaxle
hanoer
and meas'
ure the
primary
shatl thrust
clearance.
Clearance: 0-0.lmm
(0-0.004
In)
Caution
.
Do nol use
more than three
(3)
shims.
4. Select the closesl shim on the thin side from the table
tor
adiustment
of the
primary
shatt.
Adiustmenl shim thickness:
Secondary shalt assembly
Caution
.
Do nol install
lhe
secondary
shafl shim.
.
Apply
petroleum
ielly
to
prevent
the
shim llom
fall-
ing when installinE
ii.
1- Remove the transaxle case and install the
proper
adjust'
ment shim for the orimarv shafi.
2. lnstall the
primary
shaft
gear
assembly and the secondary
shaft
gear
assembly.
Do not install the secondary shaft
shlm at this time.
3. Shifl the
gears
to 4th
gear.
J-39
