Mazda 121 - Oil Pan Removal;Installation

OIL PAN
OIL PAN
RE!'OVAL
/
INSTALLATION
1. Disconnect the negative
battery cable.
2. Drain the
engine oil.
3. Remove
the undercover and side cover.
4.

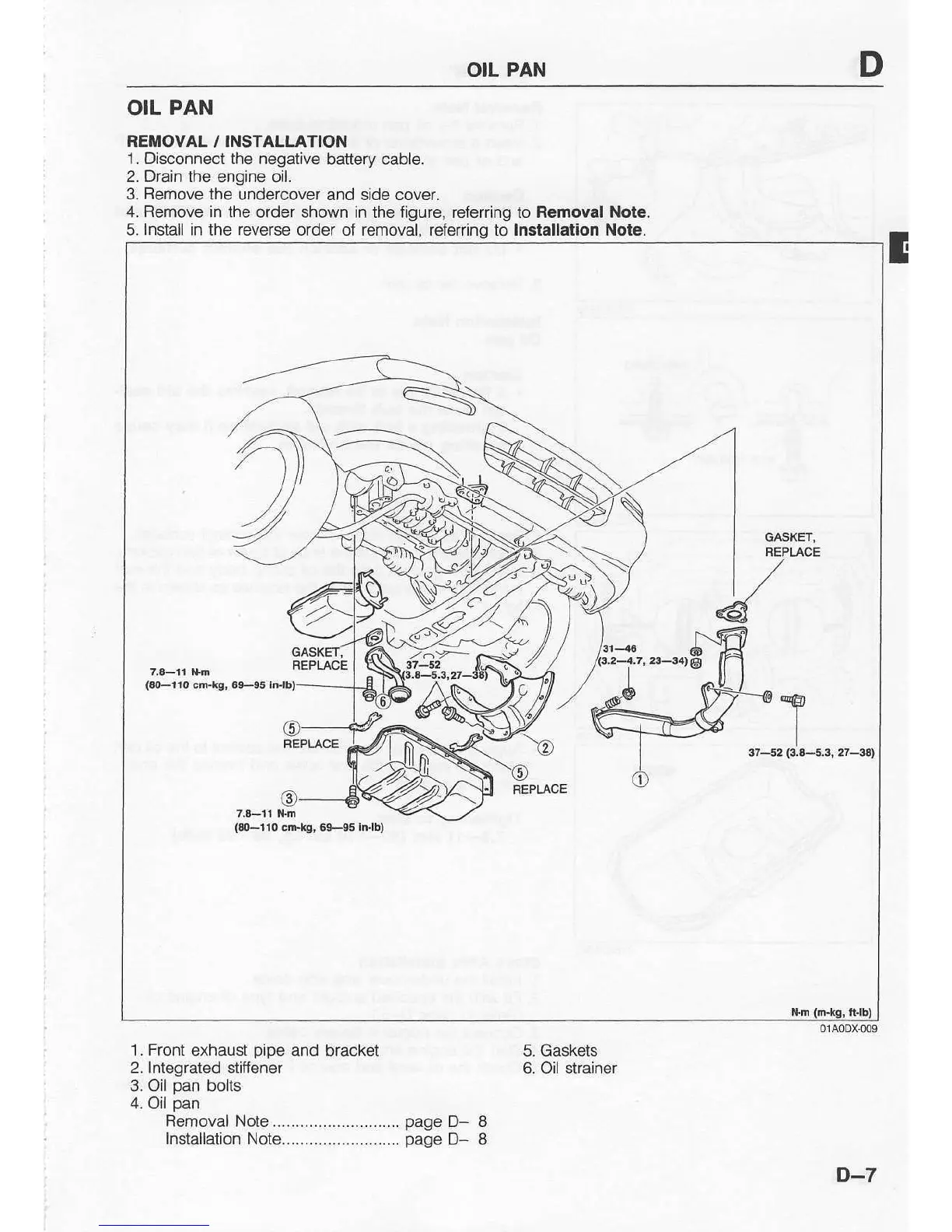

Remove in
the order shown in the figure, referring to Removal Note.
5.
Install
in the reverse order of removal, referring
to
Installation Note.
GASKET,
BEPLAC€
REPLACE
REPIACE
'@
3r-52
(4.3-5.3,
27-36)
REPlACE
{3!-110
cfrkg, 69-95 tn.tb)
1.
Front exhaust
pipe
and bracket
, lhr6^r.rorl di1l6n6r
3. Oil
pan
bolts
4.
Oil
pan
Bemoval Note............................
page
D- 8
Installation
Note..........................
page
D- 8
5. Gaskets
6.
Oil
strainer
D-7
