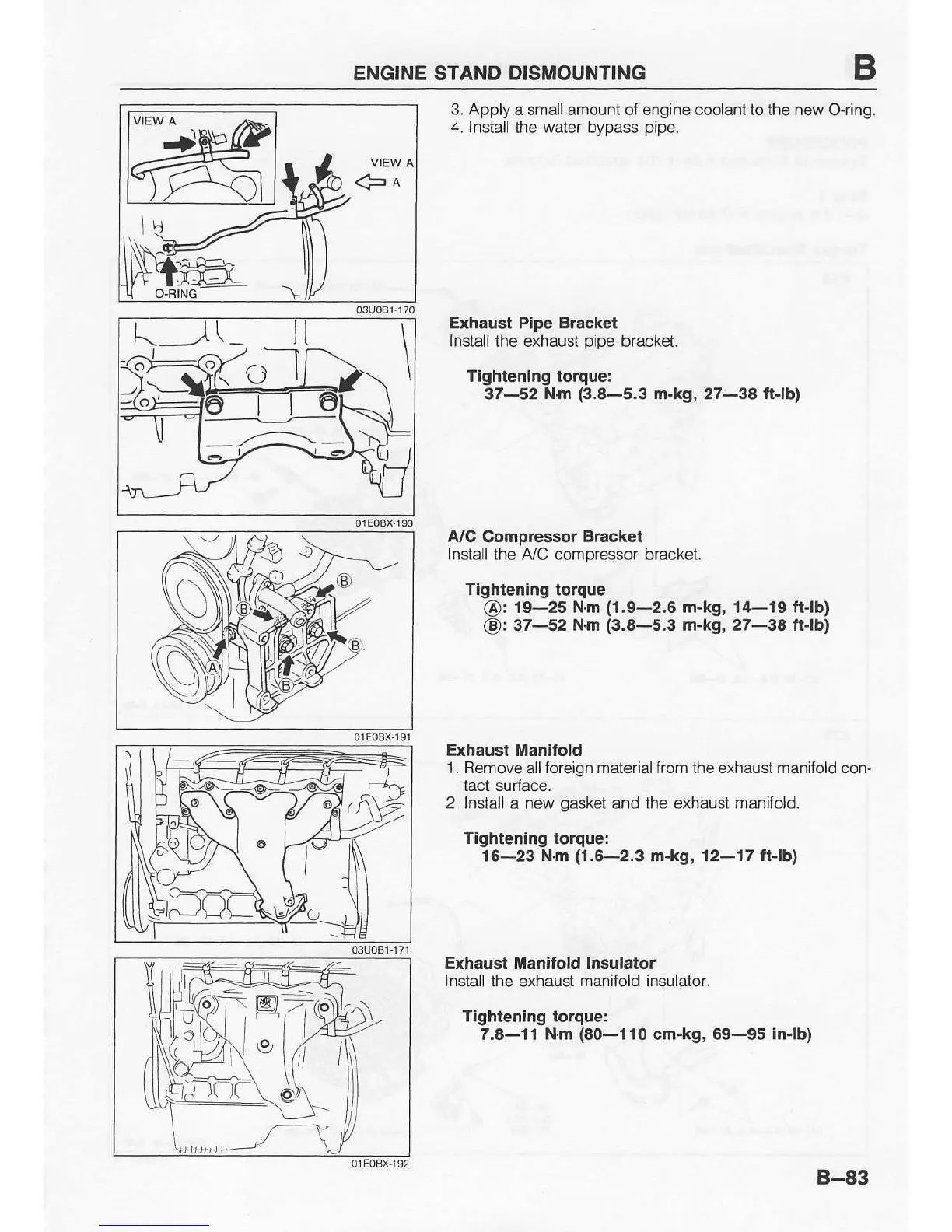

Mazda 121 - Exhaust Pipe Bracket; A;C Compressor Bracket; Exhaust Manifold; Exhaust Manifold Insulator

ENGINE STAND DISMOUNTING
3. Apply a small amount of engine coolantto the new
O-ring.
4. lnstall the water bypass
pipe.
Exhaust Pioe
Bracket
lnstall the exhaust oioe bracket.
Tightening torque:
37-52
N{n
(3.8-5.3
m-kg, 27-38 fi-lb)
A/C ComDressor Brackel
Install the tuC comoressor
bracket-
Tighlening
torque
@:
19-25 N.m
(1.9-2.6
m-kg, t4-19 ftJb)
@:
37-52 Nm
(3.8-5.3
m-kg, 27-38 ft-lb)
Exhaust Manitold
1. Remove
all
foreign material from the exhaust manifold con-
tact surface.
2. Insiail
a
new
gasket
and the exhaust manifold.
Tightening torque:
16-23
Nm
(1.6-2.3
m-kg, t2-17 ft-lb)
Exhaust Manitold lnsulalor
Install
the exhaust
manitold insulator.
Tightening
torque:
7.8-11 N.m
(80-110
cm-kg, 69-95 In-lb)
