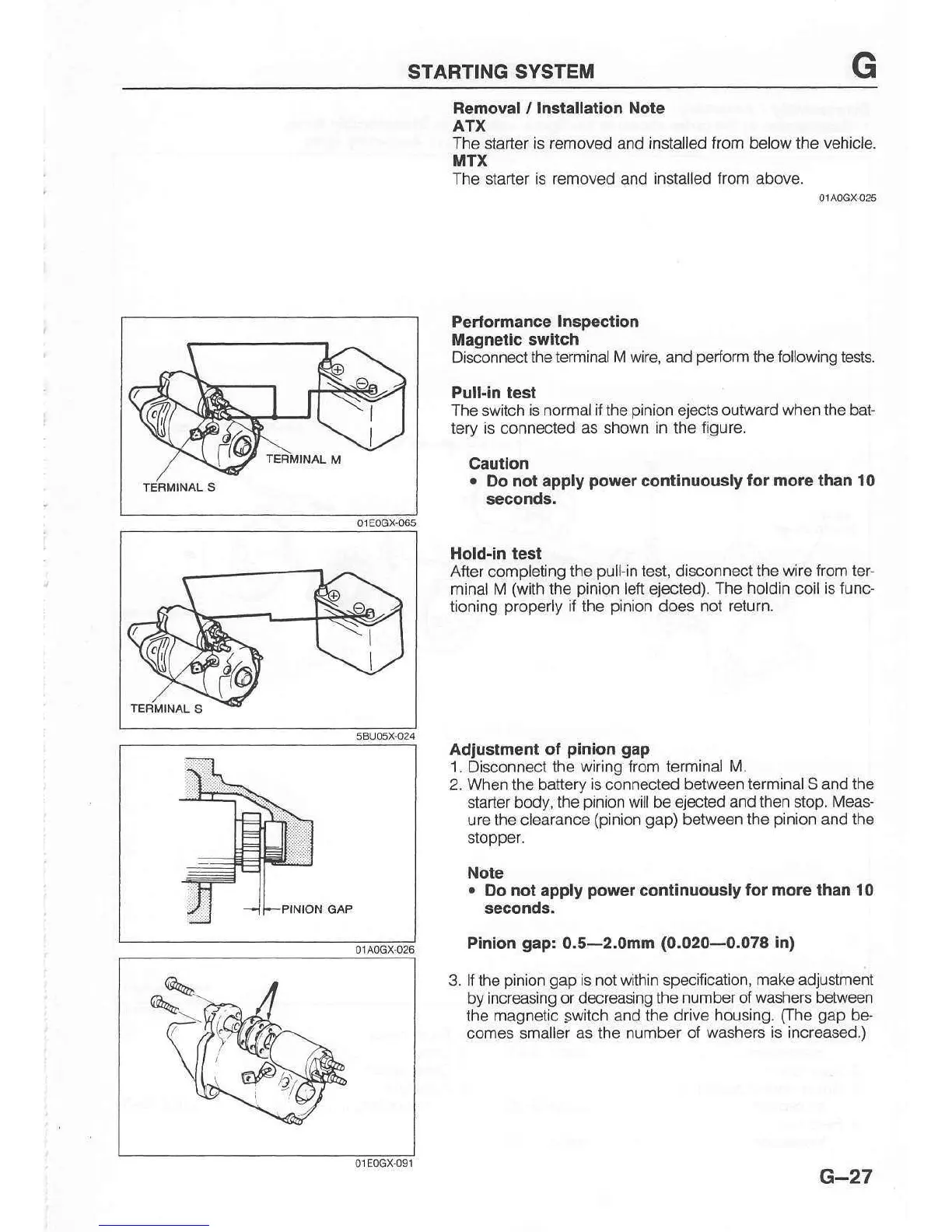

STARTING
SYSTEM
Removal
/
Insiallation Note
ATX
The starter is removed and installed from below the
vehicle.
MTX
The starter
is removed
and
installed from above.
01A0GX{25
Pe.tormance Inspection
i,lagnetic awltch
Disconn€ct
the terminal l\,4 wire, and
perlorm
the lollowing tests.
Pull-ln test
The switch is normal
if
the oinion eiects
outward when the bat-
tery is connected as shown in the
figure.
Caution
.
Do not apply
power
continuously
tor mote than 10
aeconqs.
Hold-ln tesl
After completing the
pullin
test, disconnect the wire from ter'
minal M
(with
the
pinion
left ejected).
The holdin coil is func-
tioning
properly
if the
pinion
does
not return.
Adiuahent of
pinion gap
1. Disconnect the wiring from terminal
M
2. When the battery
is
c;nnected
between terminal S and the
starter body, the
pinion
will be ejected and
then
stop.
Meas-
ure the clearance
(pinion gap)
betlveen
the
pinion
and
the
stoooer.
Note
.
Do not apply
power
continuously
for more than 10
aeconds.
Pinlon
gap:
0.5-2.omm
(0.020-0.078
in)
3. lf the
pinion gap
is not within specficaton. make adjustmenl
by increasing or decreasing
the number of washers between
the magnetic
Switch
and the drive
housing.
fihe
gap
be'
comes smaller
as the number oi washers
is
increased.)
G-27
