Mazda 121 - Drive Pinion

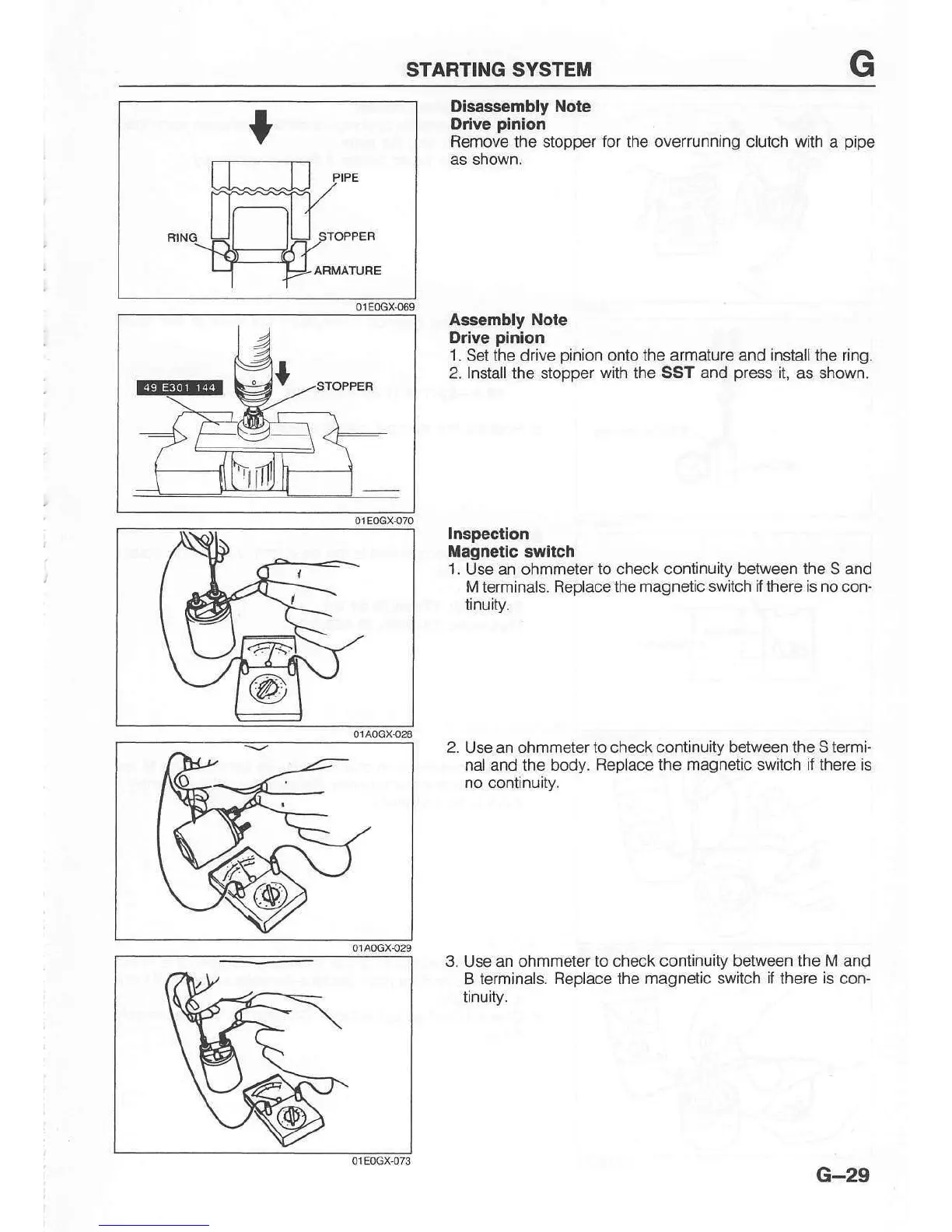

STARTING SYSTEM
Disaasembly Note
Drlvs
plnlon
Remove the stopper
for
the overrunning clutch with a
pipe
as snown.
Assembly Note
Drive
pinlon
1. Set the drive
pinion
onto the armature and
install
the ring.
2. Install the stopper
with
the SST
and
press
it,
as shown.
Inspoctlon
agnetic awilch
1. Use an ohmmeter to check continuity between
the
S and
M terminals. Replace the magnetic
switch if there is
no con-
tinuity.
2.
Use an ohmmeter
to check continuity between the S termi-
nal and the body. Replace the magnetic switch if there is
no continuity.
3. Use an ohmmeter
to check continuity between the M and
B termanals.
Replace the magnetic switch
il
there
is
con-
tinuity.
G-29
