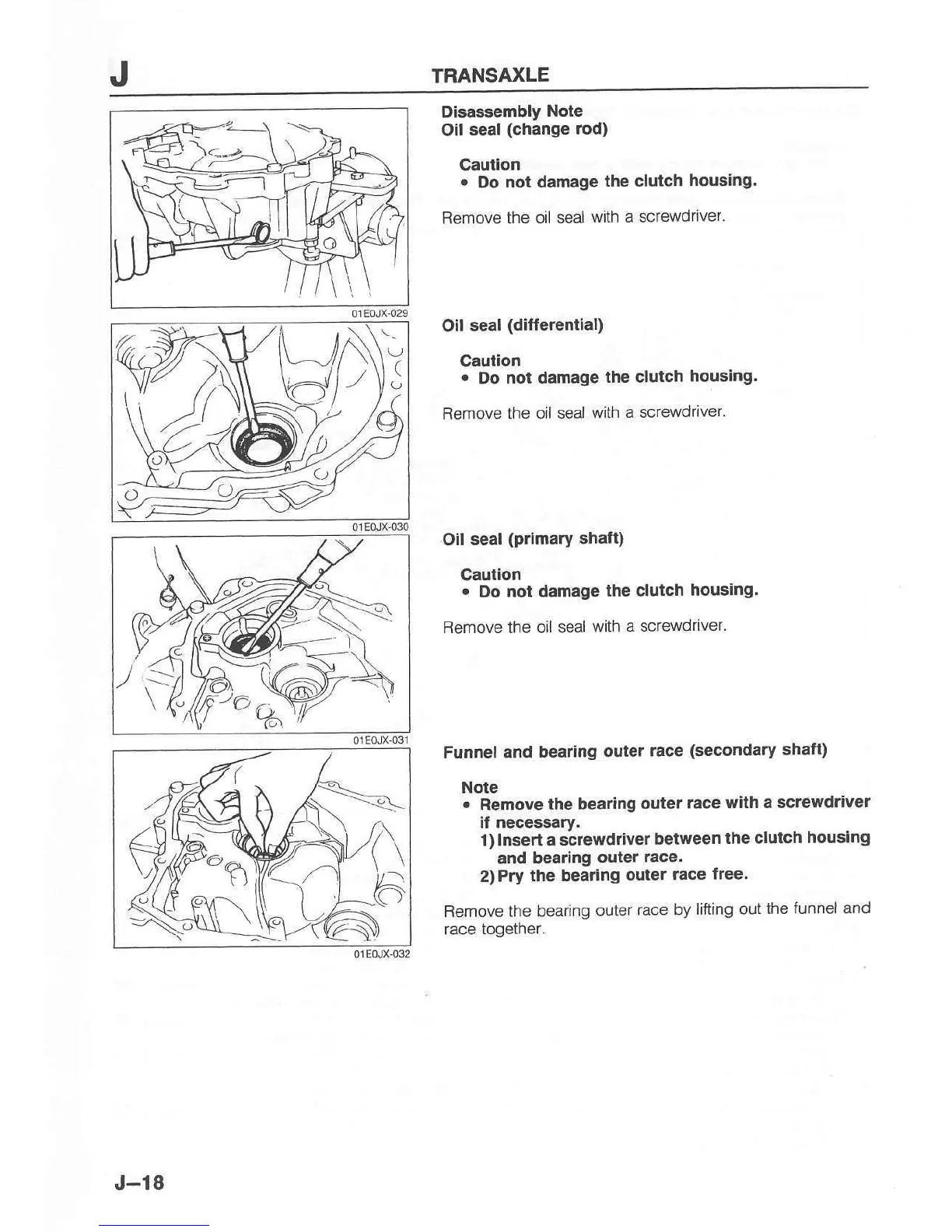

Mazda 121 - Oil Seal; Funnel and Bearing Outer Race (Secondary Shaft)

J
TRANSAXLE
Disassembly
Note
Oil
seal
(change
rod)
Caution
.
Do
not damage
the cluich
housing'
Remove the oil seal
with a screwdriver.
Oil
seal
(dlfterential)
Caution
.
Do ngt damage
the clutch
housing.
Remove the oil seal
with
a screwdrver'
Oil seal
(p
mary shafl)
Cautlon
.
Do noi
damage
the clutch
housing.
Remove the oil seal
with a
screwdriver'
Funnel and bearing
outer race
(secondary shatt)
Noie
.
Remove
the bearing
outer
race with
a acrewdriver
it neces-sary.
I ) lnaert a screwdrive.
between
the clutch
housing
and bearlng
outer race.
2)Pry
the bearlng
outer race
flee.
Remove the bearing
outer
race by
lifting out
the funnel and
race together.
