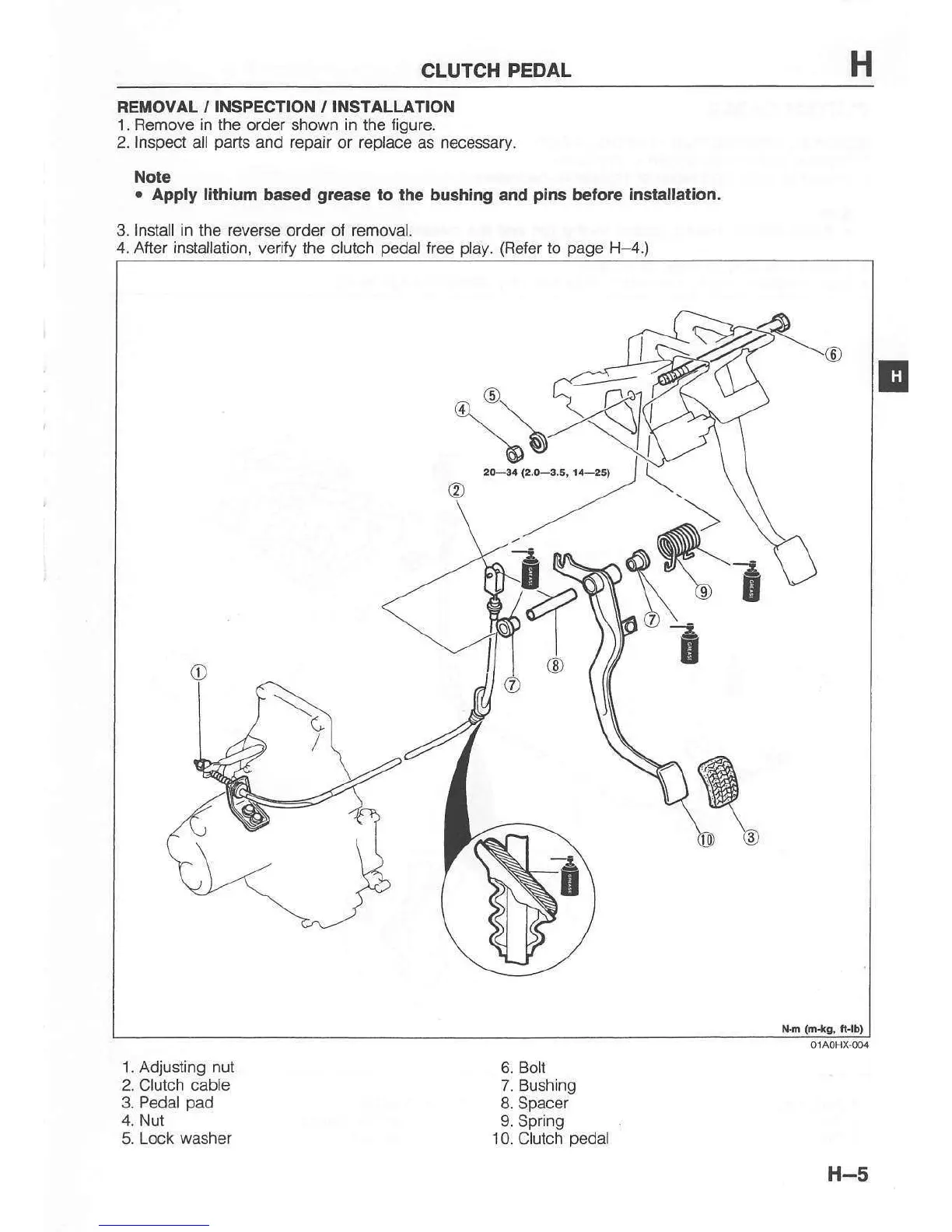

CLUTCH PEDAL
REIIOVAL / INSPECTION / INSTALLATION
1. Remove in the order shown in the
ligure.
2.
Inspect
all
pads
and
repair
or replace as necessary.
Note
.
Apply lilhium
bas€d
greaas
to the bushlng and
pins
b€tore
installation.
3. lnsiall in the revers€ order of removal.
4. After installation, verify the clutch
pedal
free
play. (Refer
to
page
H-4.)
\q
u'€
1. Adjusting nut
2. Clutch cable
3. Pedal
pad
4. Nut
5.
Lock washer
6. Bolt
7. Bushing
L Spring
10. Clutch
pedal
H-5
