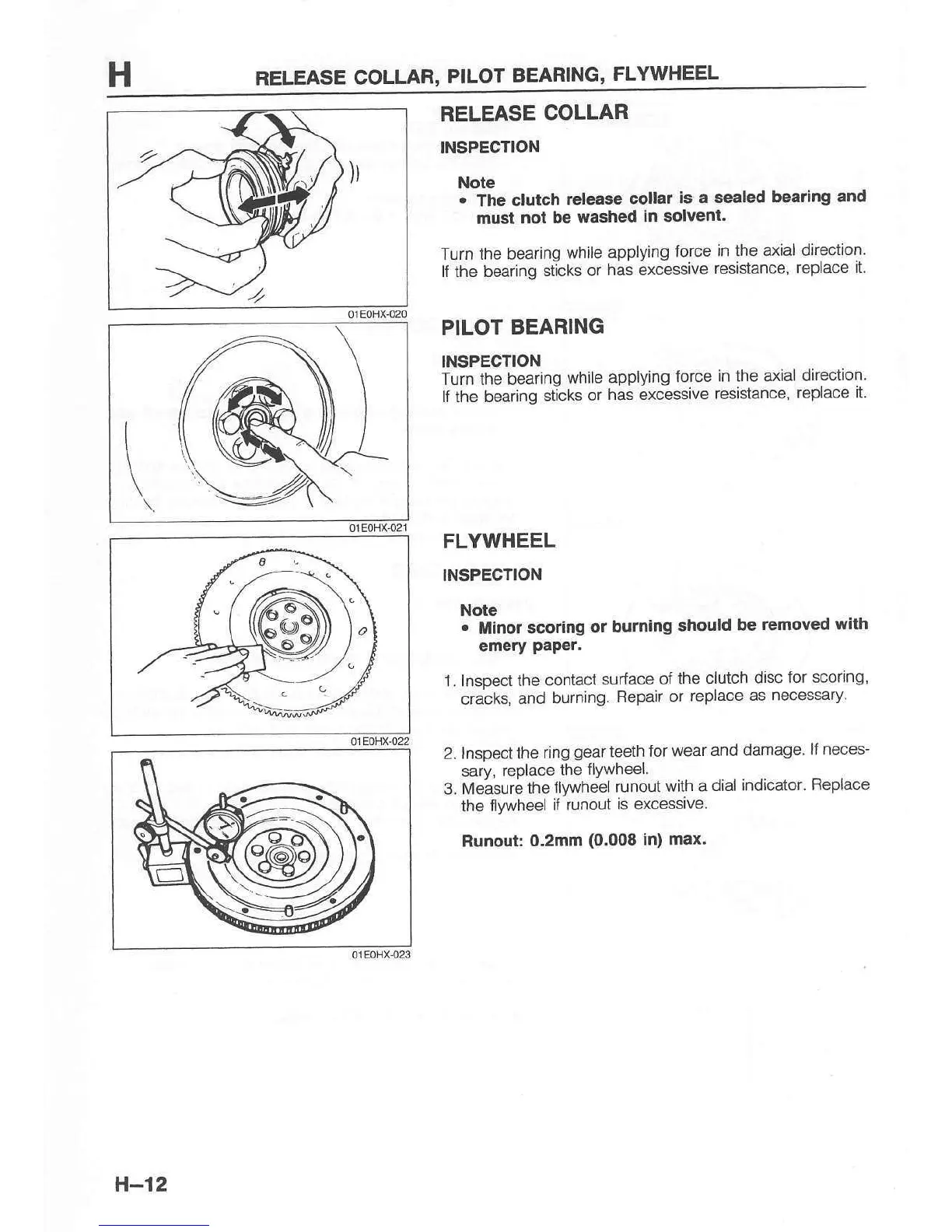

Mazda 121 - Release Collar Inspection; Pilot Bearing Inspection; Flywheel Inspection

RELEASE
COLLAR,
PILOT
BEARING'
FLYWHEEL
RELEASE
COLLAR
INSPECTION
Note
.
The
clutch
Eleaae
collar
is a
sealed
bearlng and
musl
not
be washed
in solvent.
Turn the bearing
while
applying
force
in the
axial direction
It
the
bearinq
sticks or
has excessive
resislance,
replace
it.
PILOT
BEARING
INSPECTION
Turn the bearing
while applying
torce
in the axial
direction
lf the bearing
sticks
or
has excessive
resistance,
replace
it
FLYWHEEL
INSPECTION
Note
.
Minor scoring
or
burning
should
be
removed with
emery
paPer.
1. Inspect
the contact
surface of
the clutch
disc
for scorang,
cracks, and
burning.
Flepair or
replace
as necessary.
2.
Inspect the
ring
gear
teeth
fo. wear
and damage
ll neces'
sarv.
reDlace
the
flwheel.
3. l'/easure lhe
tlvwheel runout
with a
dial
indicator' Replace
the flywheel
if runout
is excessve-
Runout:
0,2mm
(0.008
in) max,
t
H-12
