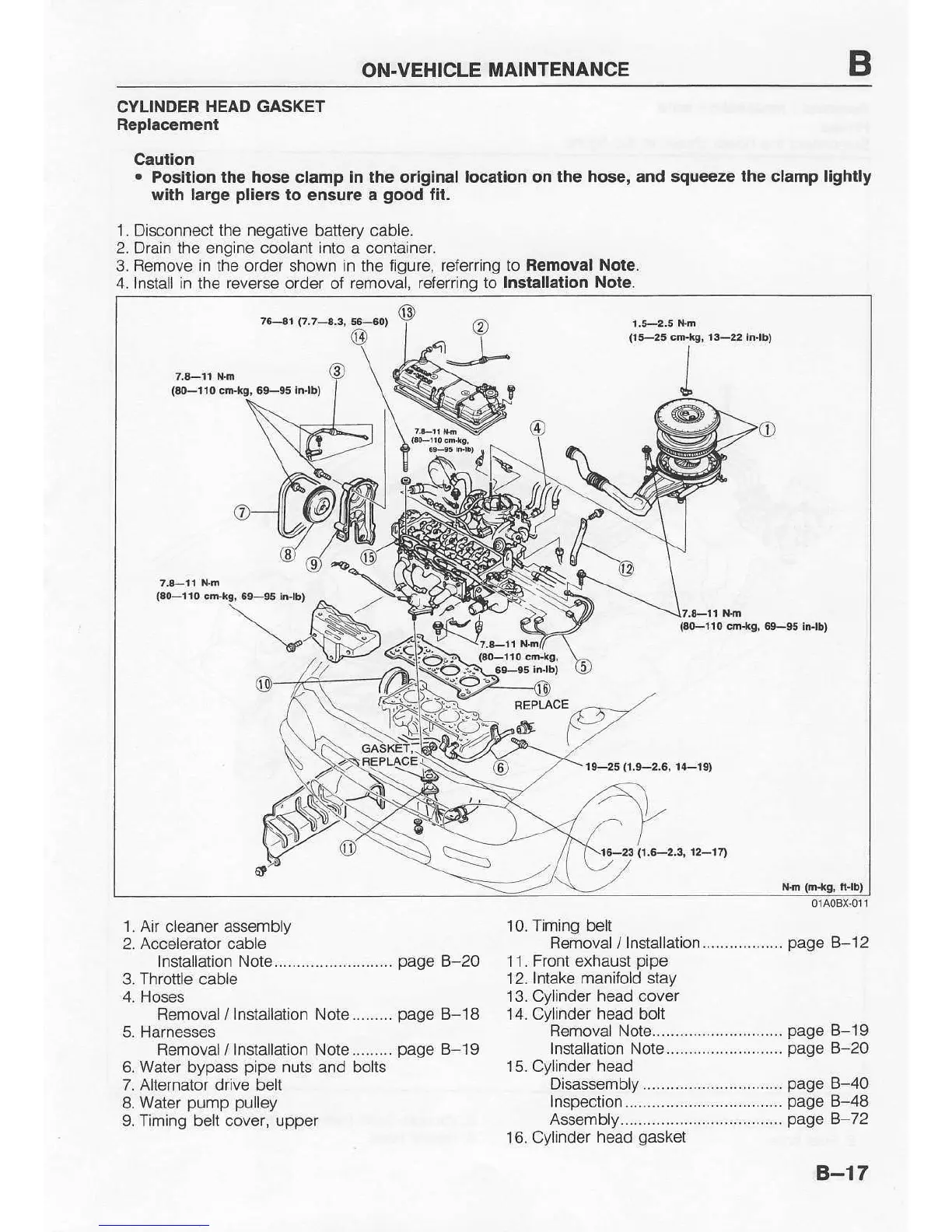

Mazda 121 - Cylinder Head Gasket

ON-VEHICLE
MAINTENANCE
CYLINDER
HEAD GASKET
Replacement
Caulion
.
Position lhe hose clamp in the orlginal location on the
hose,
and
squeeze the clamp lighlly
with large
pliers
to ensure a
good
fit.
1. Disconnect the
negative
battery cable.
2. Drain the englne coolant into a container.
3. Remove in the order shown in the figure, referring lo
Removal Note.
4. Install in the reverse order of removal, referring to
Installation Nole.
(30-110
orl(gi 3r-95
h.tb)
firs-11o
cn-&, 6s-95
in.lb)
FEPLACE
r9-2s11.e-2.6, r4-r9)
1. Air
cleaner assembly
2.
Accelerator cable
Installation Note........-..... -...........
3. Throttle cable
4. Hoses
Flemoval /
Installation
Note.--......
5. Harnesses
Flemoval / lnstallation Note.........
6. Waier bypass
pipe
nuts and bolts
7. Alternator drive belt
8. Water
pump pulley
9. Timing belt cover, upper
10. Timing bell
Removal /
Insta||ation..................
page
B 1 2
11. Front exhaust
pipe
12. lntake maniiold stay
13. Cylinder head cover
14. Cylinder head bolt
Removal Note.............................
page
B 19
lnstallation
Note..........................
page
B 20
15. Cylinder head
Disassembly ...............................
page
B-40
1nspection...................................
page
B-48
Assemb1y....................................
page
B-72
16. Cylinder
head
gasket
page
B-20
page
B-18
page
B-19
B-17
