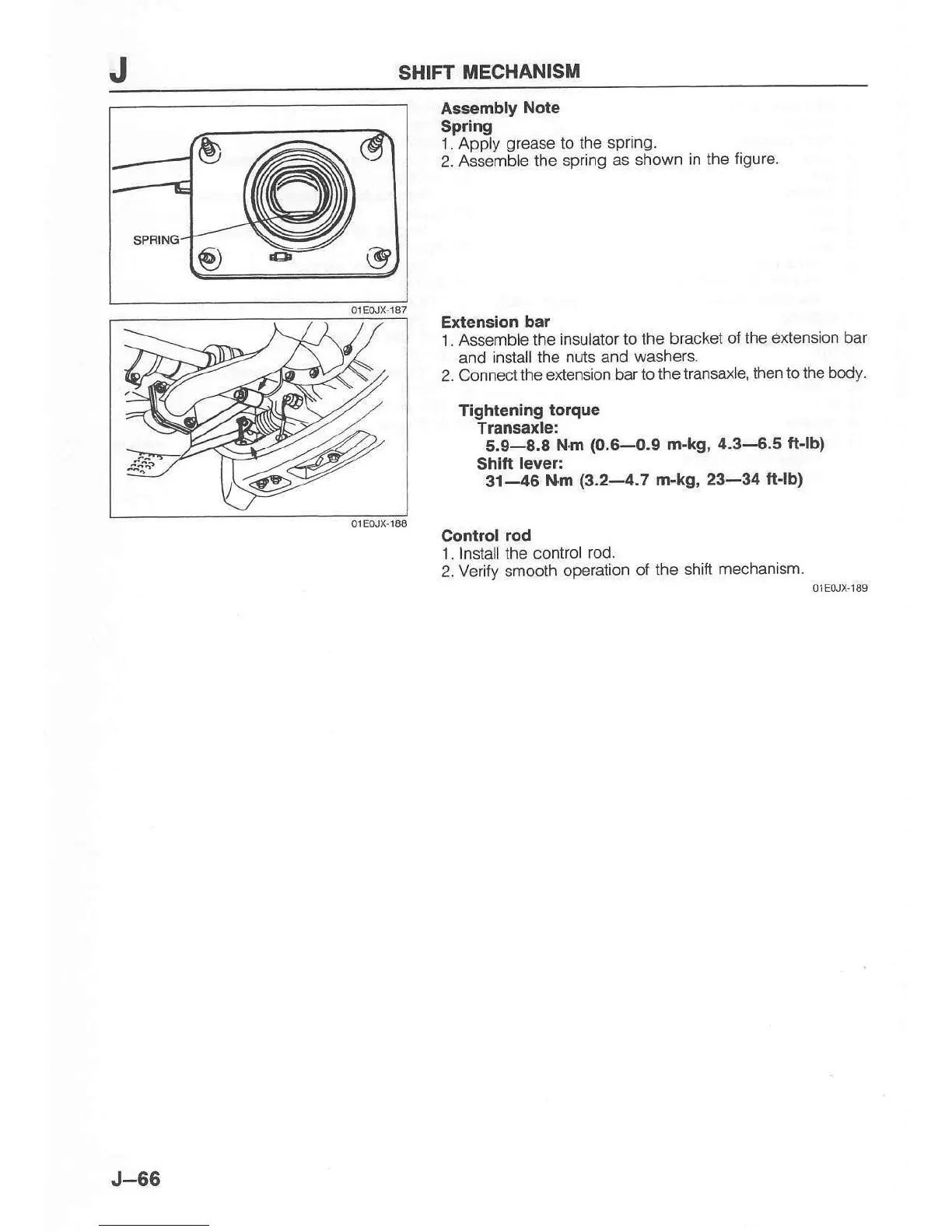

Mazda 121 - Spring; Extension Bar; Control Rod

J
SHIFT
iIECHANISM
Asso|nbly
Note
Sprlng
'1.
Apply
grease
to the
spnng.
2.
Aisemble the spring
as shown
in the
ligure
Extension
bar
1. Assemble
the insulator to
the bracket
ol the exension bar
and install
the nuts and washers.
2.
Connecl
the extension bar to
the transaxle,
then to ihe
body.
Tightening
lorque
Tranaaxle:
5.9-8.8
N{n
(0.6-0.9
m-kg,
4.3-6.5
ft-lb)
Shlft
lever:
31-45
Nm
(3.2-4.7
m-kg, 23-34
finb)
Control
rod
1.
Install the control
rod.
2. Verify smooth
operalion
of the
shift mechanlsm
01E0JX-149
J-66
