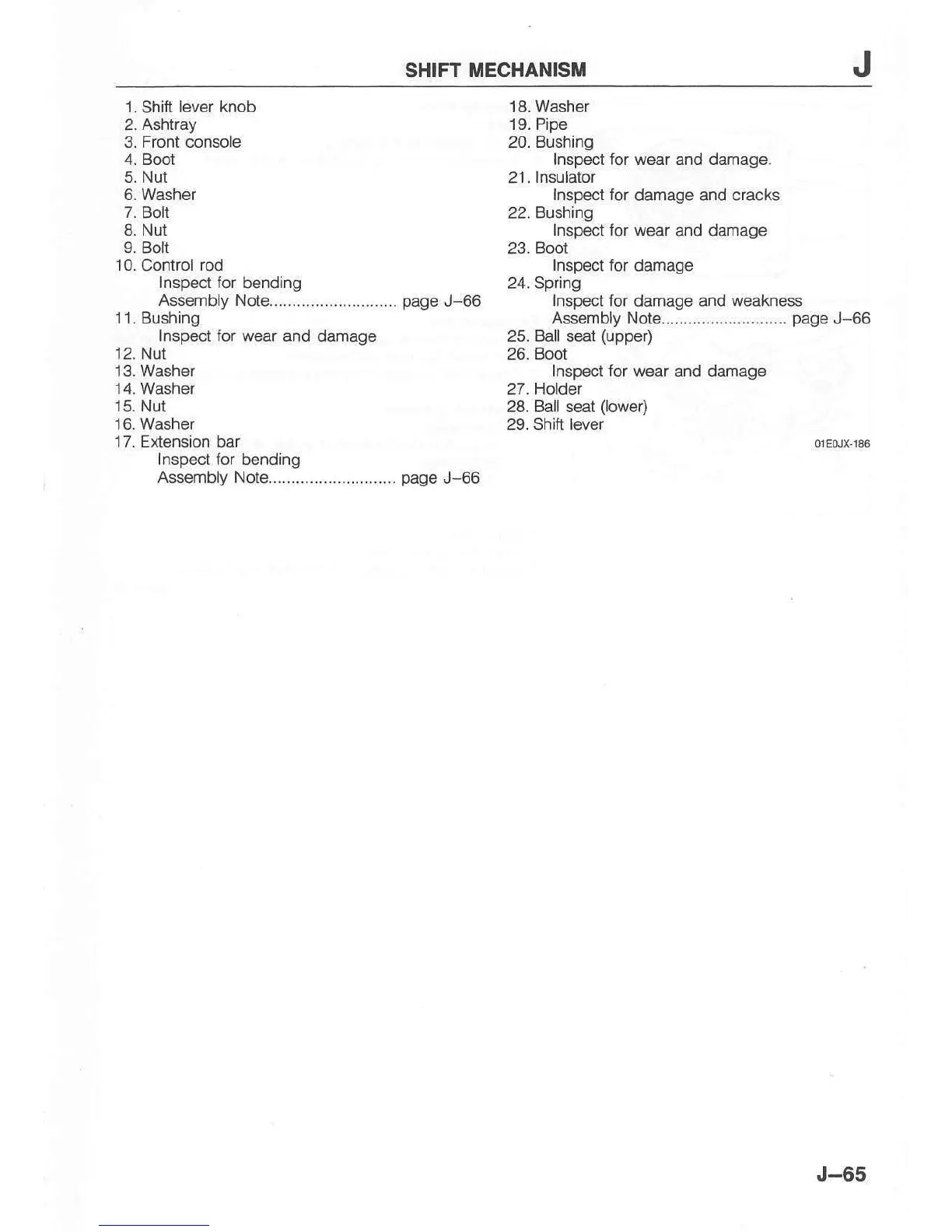

SHIFT MECHANIS]II
1. Shift
lever knob 18. Washer
2.
Ashtray 19. Pipe
3. Front console
20.
Bushing
4. Boot Insp€ct for wear
and
damage.
5. Nut
21.
Insulator
6. Washer Inspect for
damage and cracks
7.
Bolt 22. Bushing
8. Nut Inspect tor wear and damage
9. Bolt
23.
Boot
10.
Control
rod Insp€ct
for damage
Inspect for
bending 24. Spring
Assembly
Note............................
page
J-66
Inspect for
damage
and weakness
11. Bushing Assembly Note............................
page
J-66
Inspect for wear and
damage 25. Ball seat
(upper)
12. Nut
26. Boot
13. Washer Inspect for wear
and damage
14. Washer
27. Holdel
15. Nut
28. Ball seat
bwer)
'16.
Washer 29. Shift lever
17. Extension bar olEoJxr86
Inspect for bending
Assembly Note............................
page
J-66
J
J-65
