Mazda 121 - Intake Air System Component Parts

INTAKE
AIR
SYSTEM
F
INTAKE
AIR SYSTEM
COMPONENT
PARTS

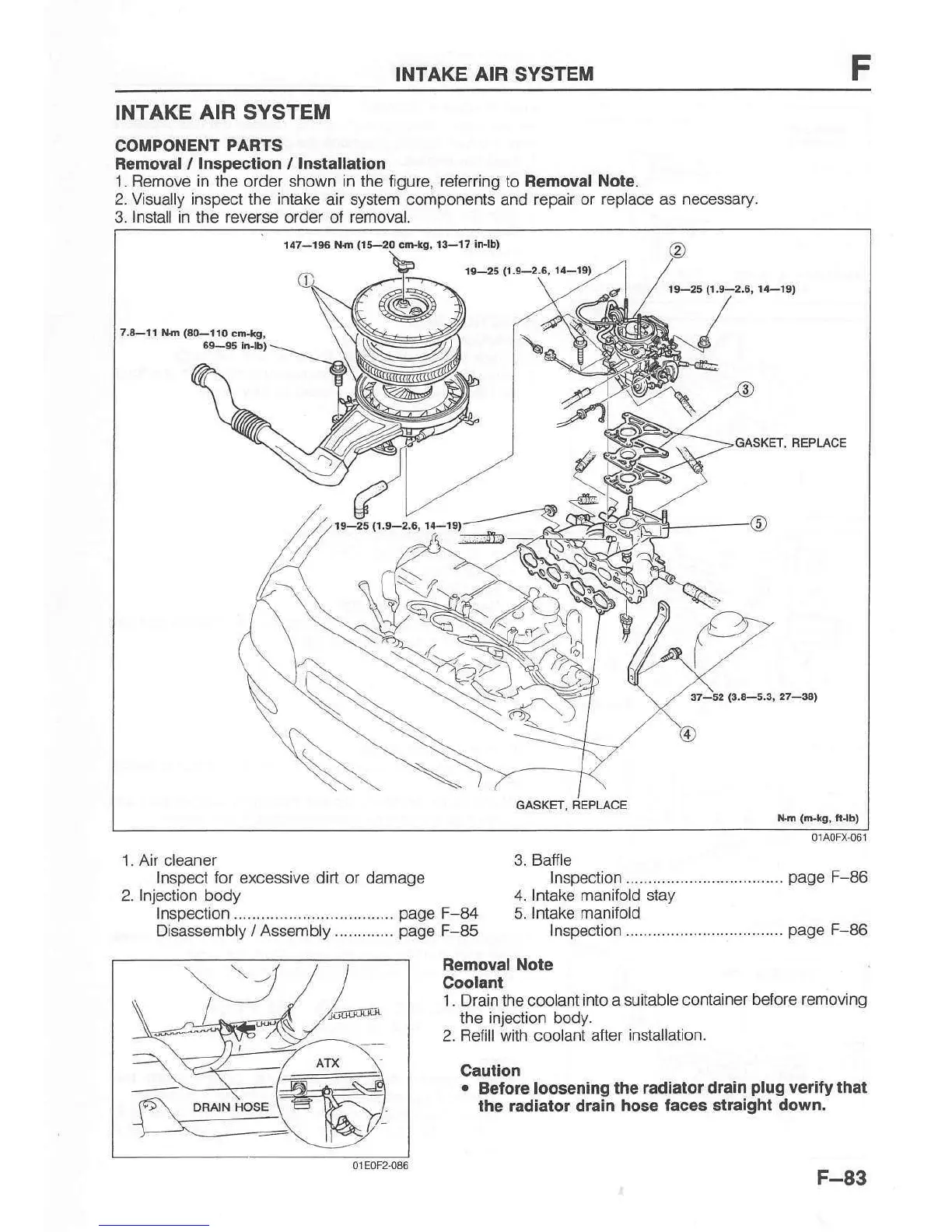

Removal / Inspectlon / Installatlon
1. Remove in the order shown in the figure, referring
to
Removal Note.
2. Visually inspect the intake
air system components and repair
or replace as necessary.
3.
Install
in the reverse order ol removal
19-25
(1.9-2.5. 1.-r9)
19-25
0,9-2,6,
r/r-r9)
7.6-11 nn
(40-t10
cn.tg,
6H5In-lb)
REPLACE
11 25
i,9-2.6,
1a-191-
/a :;;s
(3,3-s.3. 27-33)
1.
Air
cleaner
Inspect for excessive
dirt
or damage
2.
Injection
body
Inspection...................................
page
F-86
4. Intake manifold stay
Removal
Note
Coolant
1. Drain the coolant
into
a suitable
container before
removino
the injection body.
2. Retill wilh coolanl after
installation.
Cautlon
.
Belore loosening the radialor
drain
plug
verify thai
the radiator draln hose
taces stralghl down.
Inspection...................................
page
F-84 5.
Intake manifold
Disassembly / Assemb1y.............
page
F-85 Inspection...................................
page
F
86
F-83
