Mazda 121 - Clutch Pedal Adjustment; Clutch Pedal Free Play

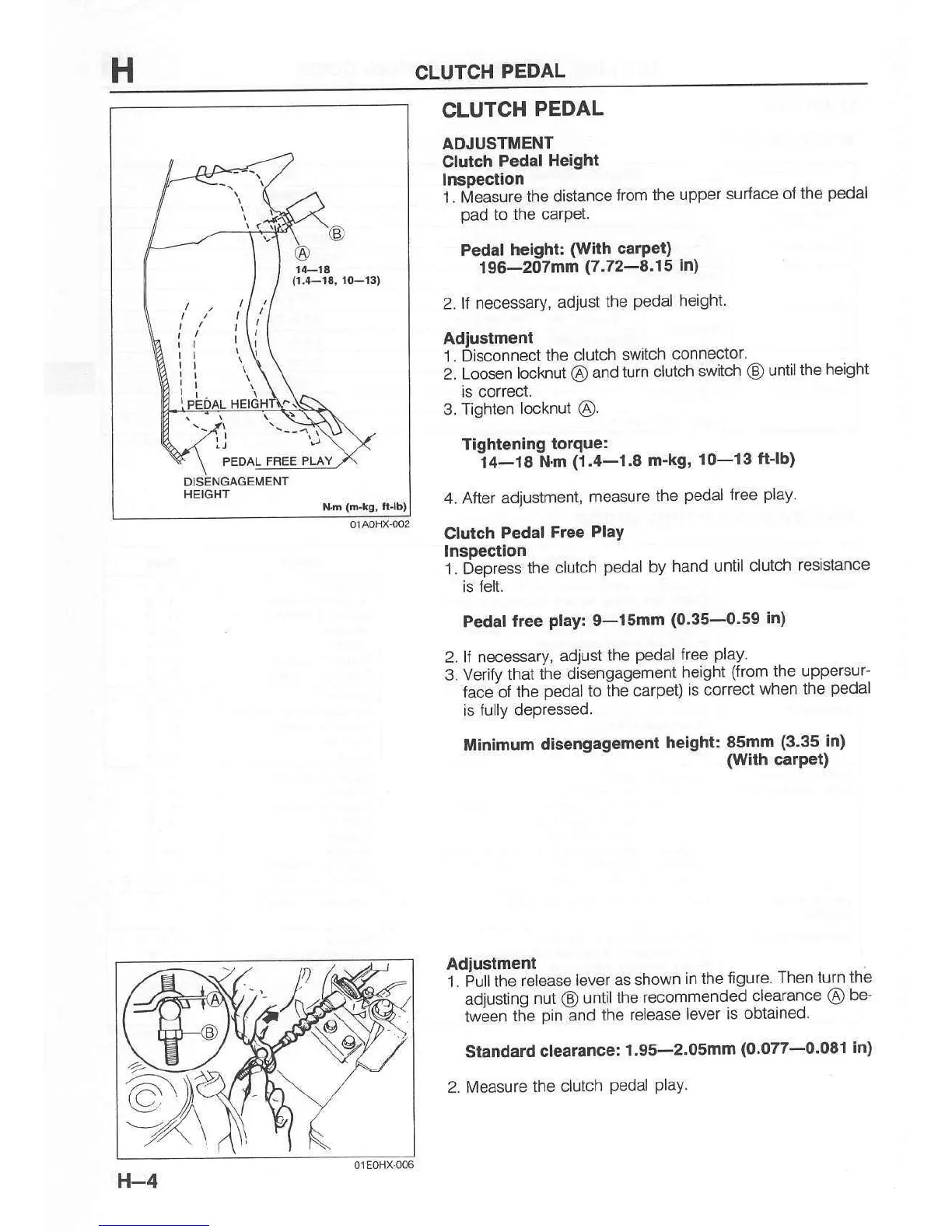

CLUTCH
PEDAL
I
CLUTCH
PEDAL
ADJUSTT'ENT
clurch
Pedal
Height
Insp€cilon
1 Measure the distance
lrom lhe
upper surlace
of the
podal
pad
to the carpet.
Pedal hetght
(Wlth
carPet)
196-207mm
(7.72-8.15 in)
2. lf
necessary,
adjust
the
pedal
height
Adiustment
1. Disconnect
the clutch
switch
connector.
2. Loosen
locknut
@
and turn
clutch
switch
@
untilthe
height
|s Correq.
3.
Tighten locknut
@.
Tlohtenlnq loroue:
il-rg
-Nfl
{i.l-t.a
m-kg,
1o-13
ft-lb)
4. After
adjustment,
measure
the
pedal
free
play.
Clutch
Pedal Free
PlaY
lnsoection
1. Depress
the clutch
pedal
by
hand
until clutch
resistance
is
felt.
Pedal
lree
play:
9-l5mm
(0.35-0.59 in)
2. lf necessary,
adiust
the
pedal free
pla,.
3. Verify that
the disengagement
height
(from
the uppersur-
face of the
pedal
to the carpet)
is correct
when the
pedal
is
fully depressed.
Minimum
disengagement
helght:
85mm
(3.35
in)
(Wlth
caryet)
Adiuslmenl
i.-iili t'f'"
i"r".""
r"""r as shown
in lhe
figure Then turn
the
adjusting
nut
@
until
the recommended
clearance
@
be
h^/;en the oin and
the release
lever is
obtained.
Slandard
clearance:
1,95-2'05mm
(0.02-0.081 in)
