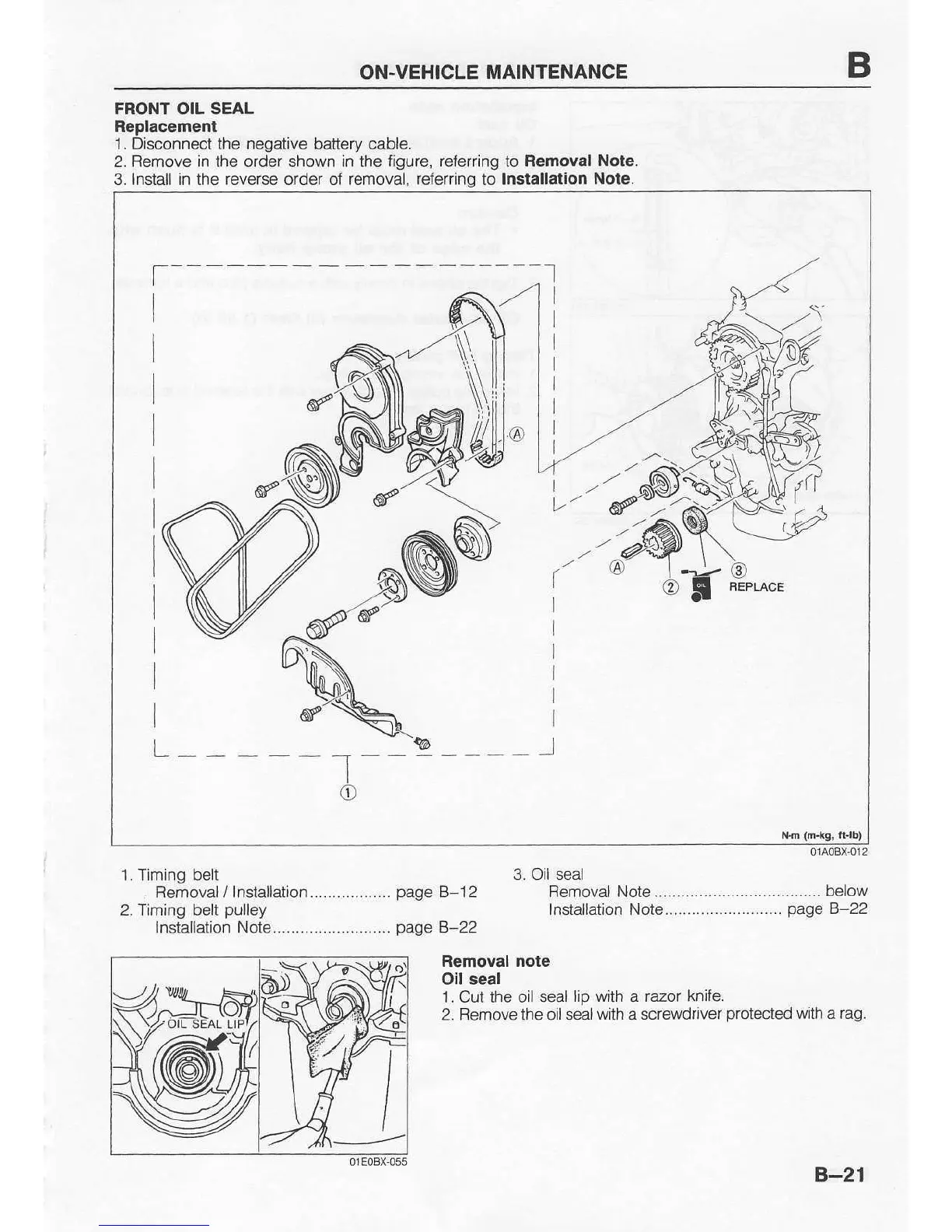

Mazda 121 - Front Oil Seal Replacement

ON.VEHICLE MAINTENANCE
FRONT OIL SEAL
Replacement
1.
Disconnect the
negalive
bahery cable.
2. Remove
in
the order shown
in
the
figlre, retefiing to Removal Nole.
3. lnstall in the reverse order of removal.
referrino
to lnstallation
Nole.
I ../
-na
I
o
---'r@\!
-
(a
l-.i 43)
€.,
$
aieurce
1. Timing belt
Removal / Inslallation..................
2. Timing belt
pulley
lnstallation Note..........................
3. Oil
seal
pageB-12
RemovalNote...........-...-.....................be|ow
lnstallation
Note..........
................
page
B-22
page
B-22
Removal note
Oil seal
1. Cut the oil seal
lip with a razor
knife.
2. Remove the oil sealwilh a
screwdriver
protecled
wilh a rag.
B-21
