Mazda 121 - Page 60

ON.VEHICLE
IAINTENANCE

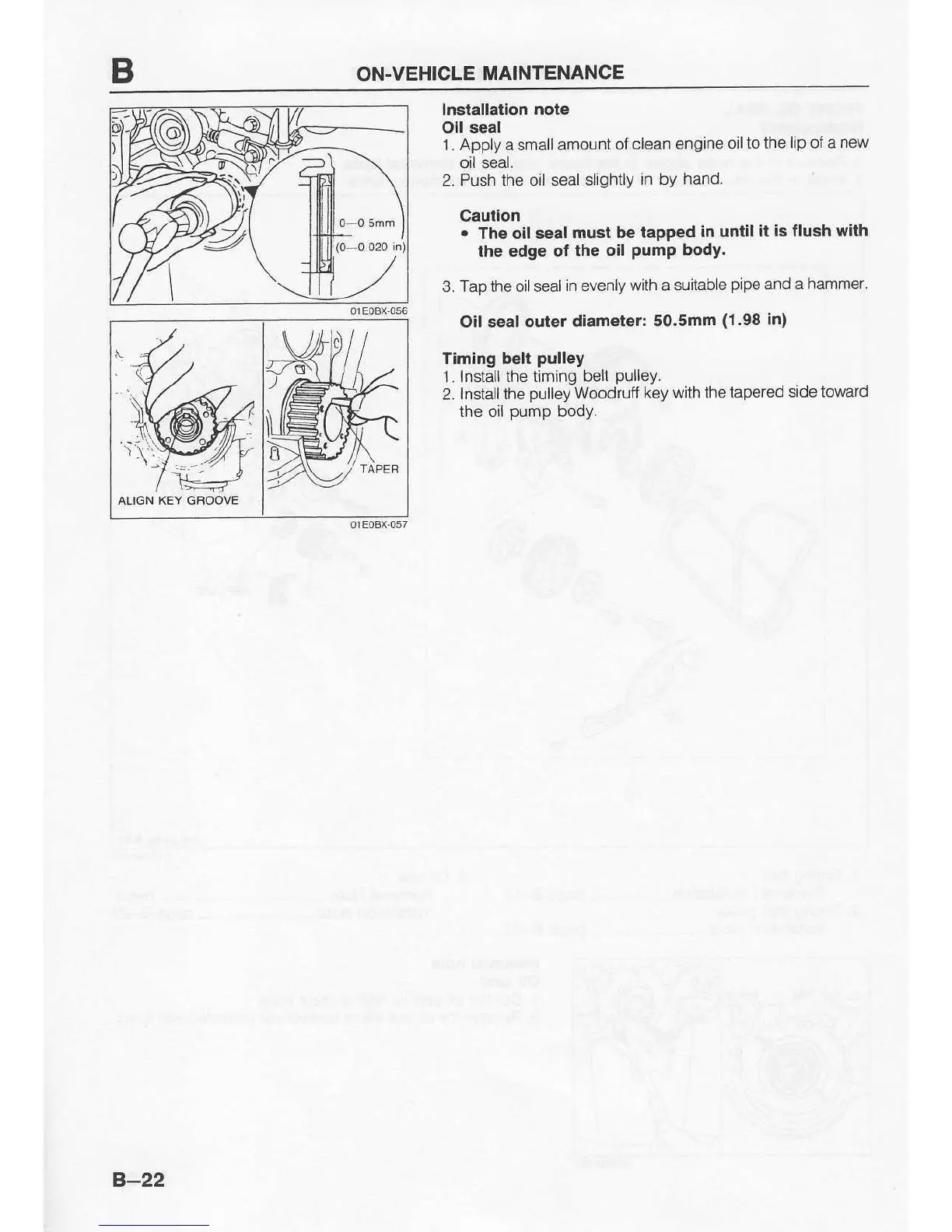

lnslallation note
Oil seal
'1.
Apply a smallamount
of clean engine
oiltothe
lap ol a new
oil seal.
2.
Push the oil seal slightly
in by
hand.
Cautlon
.
The oilseal
must be tapPed
in until
it is flush with
the edge ot the
oil
PumP
body'
3.
Tap the oilsealin evenly
with a suitable
pipe
and a hammer'
Oil seal outer
dlametet: 50.5mm
(1.98
in)
Timing belt
pulley
1.
lnstall the timing belt
pulley.
2.
lnstallthe
pulley
Woodruff
key with
the tapered
sidetoward
the oil
pump
body.
\
ALIGN KEY GFIOOVE
